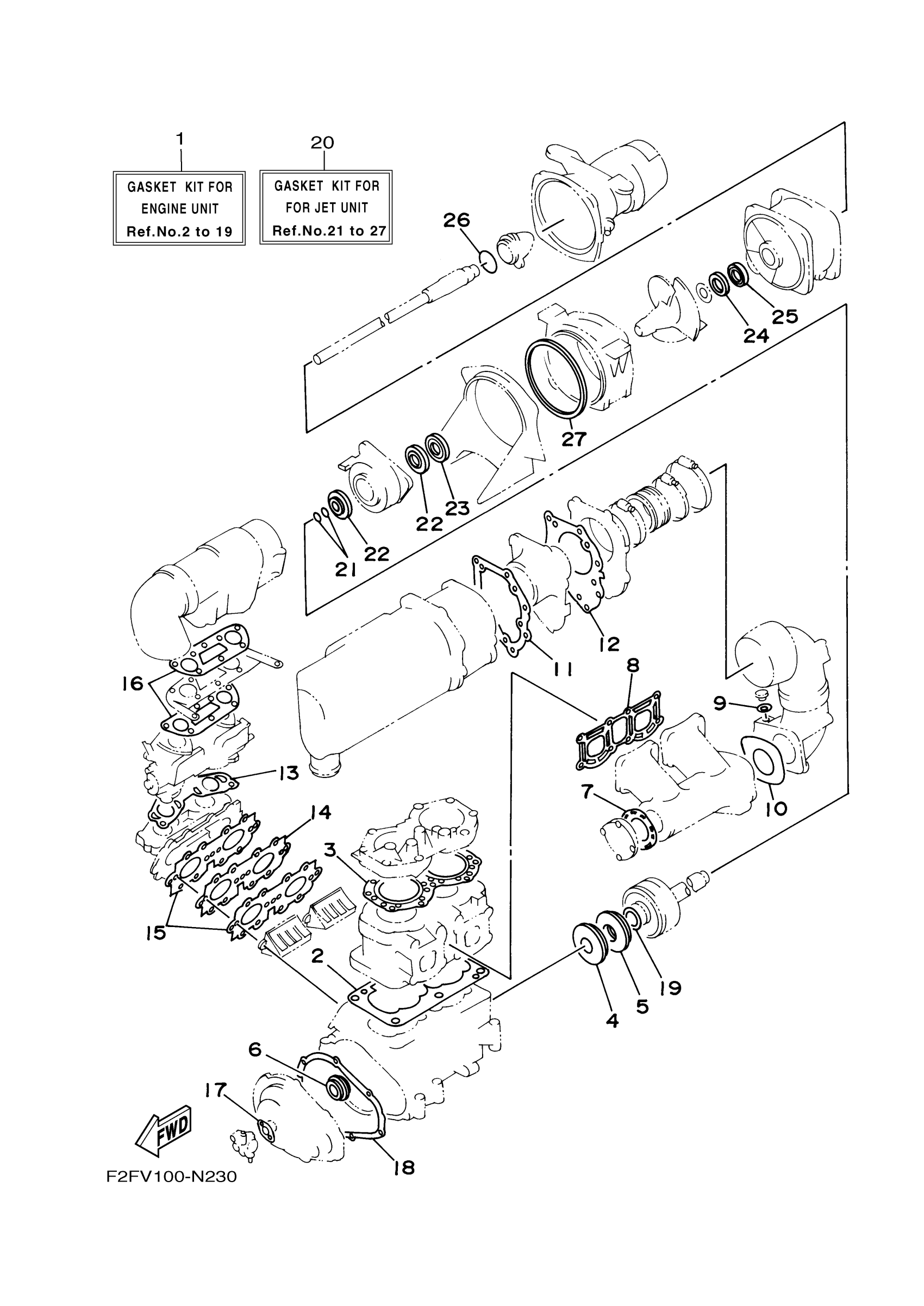

Yamaha SJ700BR (SUPER JET) F4D5 2016 REPAIR KIT 1 Diagram

#

Description

Price

1

GASKET KIT FOR ENGINE UNIT

64U-W0001-00-00

Unavailable

2

GASKET, CYLINDER

6M6-11351-A2-00

Unavailable

3

GASKET, CYLINDER HEAD 1

62T-11181-01-00

Unavailable

4

. OIL SEAL

93102-36M33-00

Unavailable

5

. OIL SEAL

93101-36M46-00

Unavailable

6

. OIL SEAL

93103-32M01-00

Unavailable

7

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

Unavailable

8

GASKET, EXHAUST PIPE

61X-14613-A1-00

Unavailable

9

GASKET

90430-08003-00

Unavailable

10

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

Unavailable

11

. GASKET, SILENCER

6R7-14755-A0-00

Unavailable

12

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

Unavailable

13

. GASKET, MANIFOLD

62T-13556-00-00

Unavailable

14

. PLATE,REED VALVE

62T-13624-00-00

Unavailable

15

. GASKET

62T-13566-00-00

Unavailable

16

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

Unavailable

17

. GASKET, PUMP CASE

6R8-13116-A0-00

Unavailable

18

. GASKET, HOLE COVER

6M6-81365-A0-00

Unavailable

19

SEAL

62T-45127-01-00

Unavailable

20

GASKETKIT FOR JET UNIT

61X-W0001-22-00

Unavailable

21

O-RING(6R7)

93210-17MA4-00

Unavailable

22

OIL SEAL(62T)

93101-25M55-00

Unavailable

23

OIL SEAL

93101-24001-00

Unavailable

24

OIL SEAL(6R7)

93102-25M34-00

Unavailable

25

OIL SEAL(6R7)

93101-25M50-00

Unavailable

26

. O-RING

93210-46M16-00

Unavailable

27

. PACKING

6R7-51117-01-00

Unavailable
