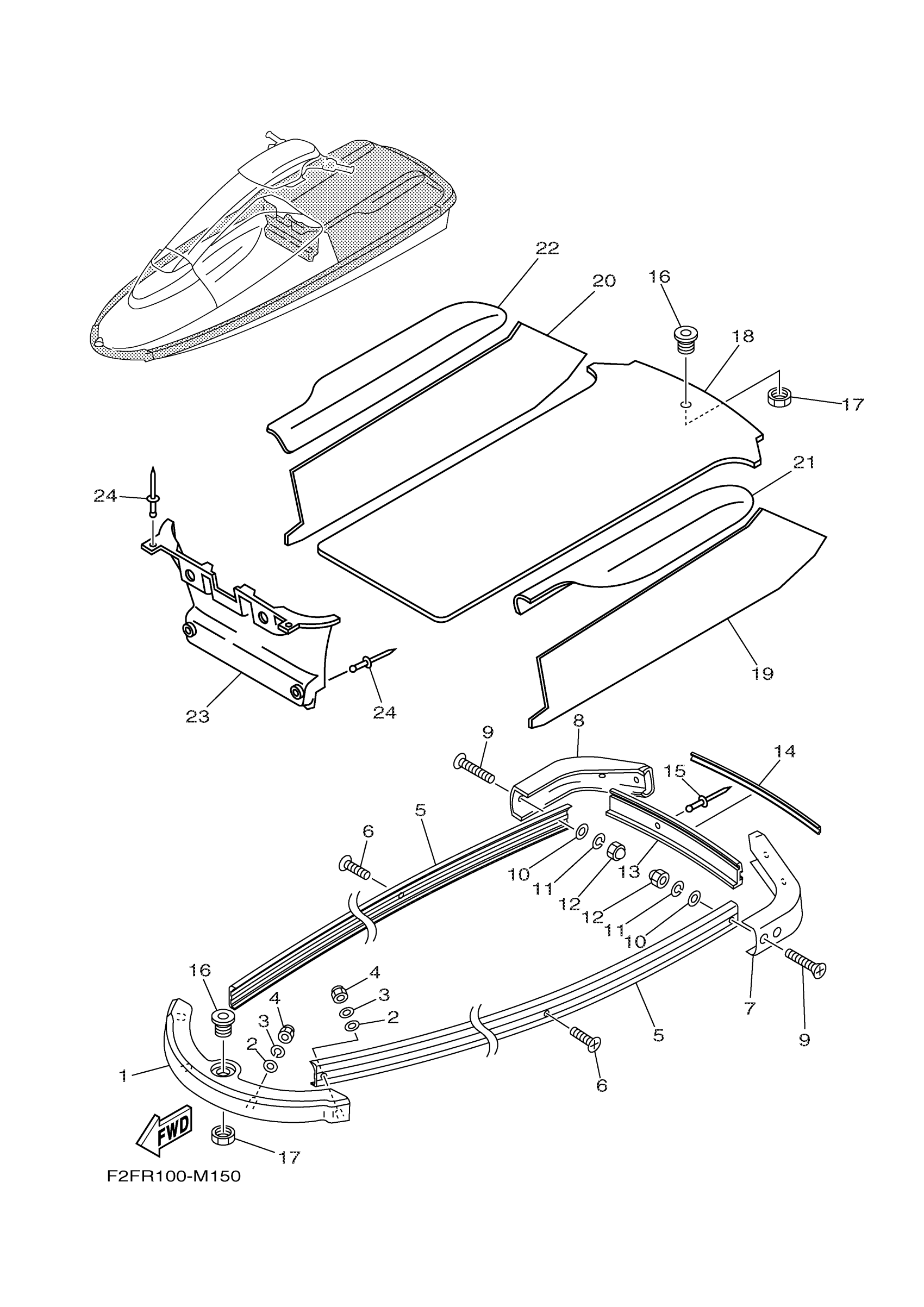

Yamaha SJ700BP (SUPER JET) F4D1 2015 GUNWALE & MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GM6-62501-11-00

Unavailable

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

3

WASHER, SPRING

92995-06100-00

$3.04

4

NUT (J17)

95380-06800-00

$6.28

5

GUNWALE, SIDE 1

F2F-62552-00-00

$76.37

6

SCREW (EW2)

90149-05962-00

$2.13

7

GUNWALE, STERN 1

GM6-6251D-10-00

$61.18

8

GUNWALE, STERN 2

GM6-6251E-10-00

$61.18

9

SCREW (FJ0)

90149-05960-00

$2.69

10

. WASHER, PLAIN

92990-05200-00

$4.71

11

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

12

NUT

90179-05964-00

$6.83

13

COVER, GUNWALE 1

F2F-6252C-00-00

Unavailable

14

COVER, GUNWALE 2

GM6-6252D-10-00

Unavailable

15

RIVET, BLIND

90267-48932-00

$1.79

16

ROPE HOLE

FN8-61651-01-00

$4.72

17

NUT

EU0-61652-00-00

$11.77

18

MAT,LOWER

F2F-6351B-00-00

$247.75

19

MAT, SIDE 1

GM6-6351C-00-00

$134.31

20

MAT,SIDE 2

GM6-6351D-00-00

$134.31

21

PAD 1

GM6-6521C-10-00

$195.51

22

PAD 2

GM6-6521D-10-00

$195.51

23

MAT,BOW

GM6-6351E-10-00

$102.97

24

RIVET, BLIND

90267-48963-00

$3.03
