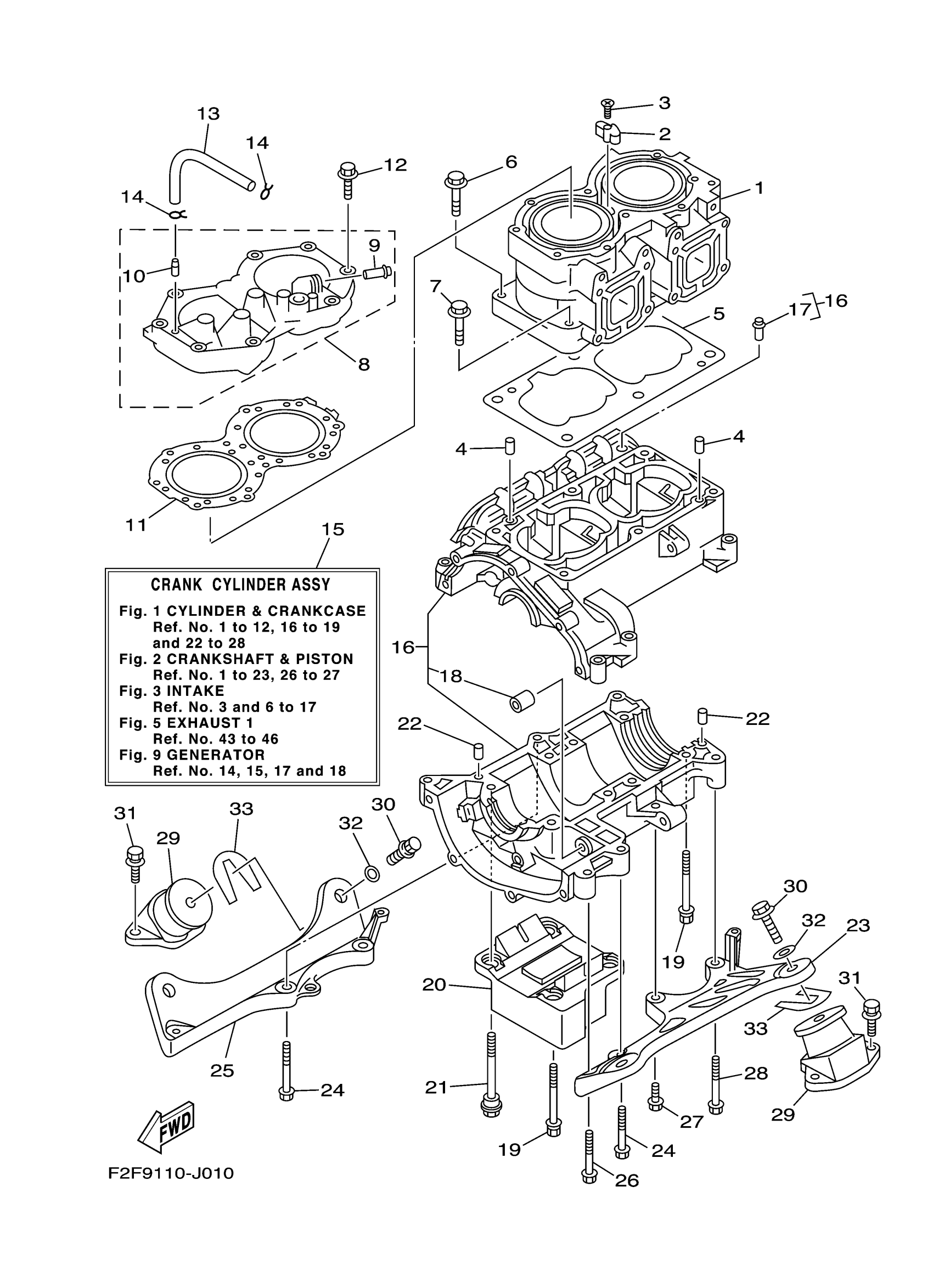

Yamaha SJ700BP (SUPER JET) F4D1 2015 CYLINDER & CRANKCASE Diagram

#

Description
Price

1

CYLINDER 1

61X-11311-01-8S

$778.77

2

ANODE

6E5-11325-00-00

$4.08

3

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

4

PIN, DOWEL (614)

93606-12019-00

$3.05

5

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

6

BOLT, WITH WASHER

90119-10M56-00

$10.24

7

BOLT (6F5)

90119-10M07-00

$4.21

8

HEAD, CYLINDER 1

64U-11111-00-8S

$354.53

9

. NIPPLE

6K8-51129-00-00

$9.62

10

. PIPE, JOINT

6R7-14485-00-00

$11.99

11

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$59.08

12

BOLT, WITH WASHER

90119-08M96-00

$2.95

13

HOSE (L200)

90445-07M19-00

$6.39

14

CLIP

90467-06016-00

$2.93

15

CRANK CYLINDER ASSY

64V-W0090-02-8S

$3,628.77

16

CRANKCASE ASSY

62T-15100-00-00

$804.53

17

NIPPLE

62T-14251-10-00

$4.51

18

. BUSH, SOLID

90380-12M29-00

Unavailable

19

BOLT, WITH WASHER

90119-08M55-00

$2.95

20

STOPPER, UPPER MOUNT

6BA-44532-00-00

$127.26

21

BOLT

90109-08M56-00

$4.09

22

PIN, DOWEL (614)

93606-12019-00

$3.05

23

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

24

BOLT, WITH WASHER

90119-10M23-00

$10.24

25

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

26

BOLT, WITH WASHER

90119-10M01-00

$9.08

27

BOLT, WITH WASHER

90119-10M00-00

$8.56

28

BOLT, WITH WASHER

90119-10M03-00

$9.08

29

MOUNT RUBBER

6R7-44517-00-8S

$90.89

30

BOLT, WITH WASHER

90119-08904-00

$3.18

31

BOLT, WITH WASHER

90119-08038-00

$4.99

32

PLATE

EU0-67324-00-00

$8.14

33

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

33

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

33

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
