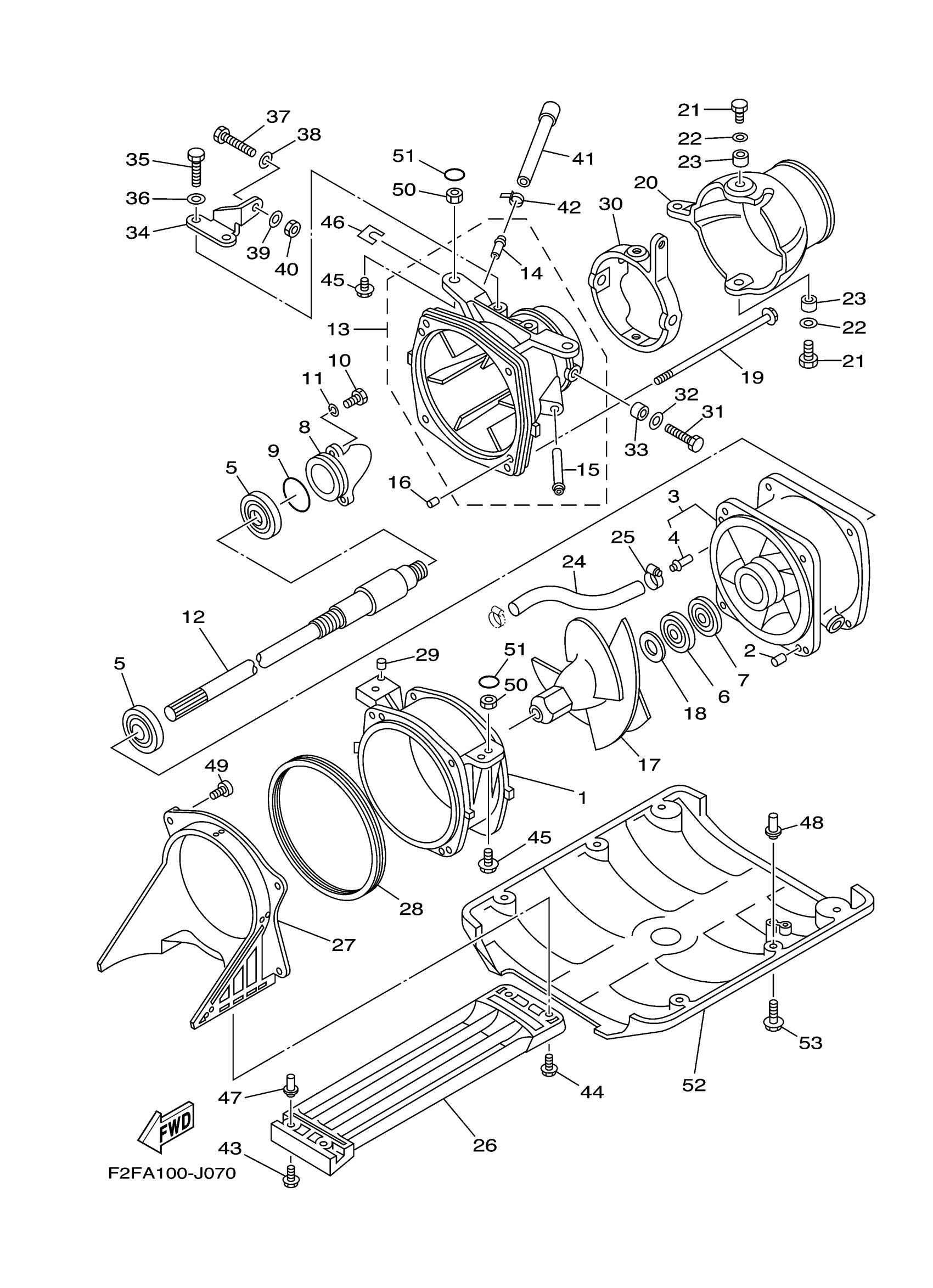

Yamaha SJ700BN (SUPER JET) F2FU 2014 JET UNIT 1 Diagram

#

Description
Price

1

HOUSING, IMPELLER

6R7-51312-03-00

$306.70

2

PIN, DOWEL (614)

93606-12019-00

$3.05

3

DUCT, IMPELLER

62T-51315-01-00

Unavailable

4

. NIPPLE

6K8-51129-00-00

$9.62

5

BEARING (6K8)

93306-205U1-00

$19.73

6

OIL SEAL(6R7)

93102-25M34-00

$13.70

7

OIL SEAL(6R7)

93101-25M50-00

$20.80

8

CAP

62T-51326-10-00

$48.47

9

. O-RING

93210-464A3-00

$2.95

10

BOLT(7U8)

97080-06020-00

$3.63

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

SHAFT, DRIVE

6BA-45511-00-00

$398.47

13

NOZZLE

64R-51318-01-00

$215.14

14

. NIPPLE

6K8-51129-00-00

$9.62

15

. NIPPLE

62T-51129-00-00

$18.49

16

PIN, DOWEL (614)

93606-12019-00

$3.05

17

IMPELLER

6BA-51321-00-00

$754.53

18

SPACER

62T-51348-00-00

$52.82

19

BOLT, WITH WASHER

90119-06M70-00

$7.40

20

NOZZLE, DEFLECTOR

6BA-51313-00-00

$80.02

21

BOLT, HEXAGON

97095-08020-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

$2.17

23

COLLAR(6R7)

90387-08M06-00

Unavailable

24

HOSE

90445-14M11-00

Unavailable

25

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

26

SCREEN, INTAKE

6R7-51333-00-00

$95.44

27

DUCT, INTAKE

6R7-51311-00-00

$122.71

28

. PACKING

6R7-51117-01-00

$39.38

29

PIN, DOWEL(6R7)

93606-07M17-00

Unavailable

30

RING,TRIM

62T-51190-01-00

$63.62

31

BOLT, HEXAGON

97095-08018-00

$3.08

32

.. WASHER, PLATE

92990-08600-00

$2.17

33

COLLAR

90387-08M08-00

$10.75

34

STAY

6BA-51387-00-00

$25.49

35

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

36

WASHER, PLAIN (646)

92990-06600-00

$1.84

37

BOLT(7U8)

97080-06020-00

$3.63

38

WASHER, PLAIN (646)

92990-06600-00

$1.84

39

WASHER, PLATE

90201-06M31-00

$2.80

40

NUT(650)

95380-06700-00

Unavailable

41

PIPE 1

6BA-51673-00-00

$12.86

42

CLAMP

90465-10098-00

$1.68

43

BOLT, WITH WASHER

90119-06896-00

$5.03

44

BOLT, WITH WASHER

90119-06908-00

$2.57

45

BOLT, WITH WASHER

90119-10948-00

$5.92

46

SHIM (T=0.5)

EW2-67354-C0-00

$2.27

46

SHIM (T=1.0)

EW2-67354-D0-00

$2.27

47

NUT(FJ0)

90179-06947-00

Unavailable

48

NUT

90179-08962-00

$19.68

49

SCREW, TAPPING

97780-60520-00

$4.09

50

NUT

90179-10925-00

$5.00

51

SEAL

EW2-62723-30-00

$7.27

52

PLATE 2

F2F-6273B-09-00

Unavailable

53

BOLT, WITH WASHER

90119-08943-00

$3.18
