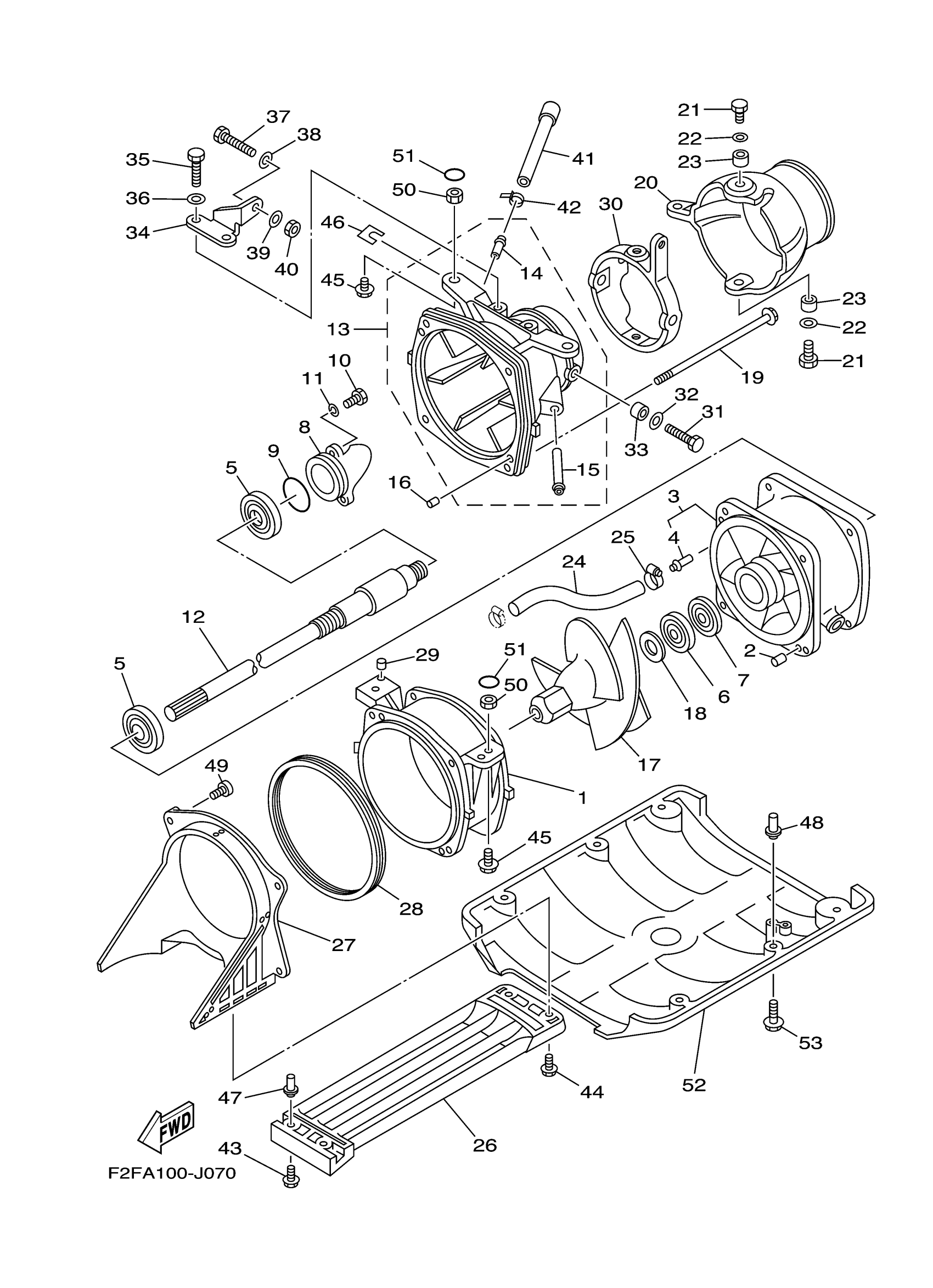

Yamaha SJ700BM (SUPER JET) F2FP 2013 JET UNIT 1 Diagram
#
1
HOUSING, IMPELLER
6R7-51312-03-00
Unavailable
2
PIN, DOWEL (614)
93606-12019-00
$4.24
3
DUCT, IMPELLER
62T-51315-01-00
Unavailable
4
. NIPPLE
6K8-51129-00-00
Unavailable
5
BEARING (6K8)
93306-205U1-00
$25.99
6
OIL SEAL(6R7)
93102-25M34-00
$16.99
7
OIL SEAL(6R7)
93101-25M50-00
$25.99
8
CAP
62T-51326-10-00
Unavailable
9
. O-RING
93210-464A3-00
Unavailable
10
BOLT(7U8)
97080-06020-00
Unavailable
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
SHAFT, DRIVE
6BA-45511-00-00
Unavailable
13
NOZZLE
64R-51318-01-00
Unavailable
14
. NIPPLE
6K8-51129-00-00
Unavailable
15
. NIPPLE
62T-51129-00-00
Unavailable
16
PIN, DOWEL (614)
93606-12019-00
$4.24
17
IMPELLER
6BA-51321-00-00
Unavailable
18
SPACER
62T-51348-00-00
Unavailable
19
BOLT, WITH WASHER
90119-06M70-00
Unavailable
20
NOZZLE, DEFLECTOR
6BA-51313-00-00
Unavailable
21
BOLT, HEXAGON
97095-08020-00
Unavailable
22
.. WASHER, PLATE
92990-08600-00
Unavailable
23
COLLAR(6R7)
90387-08M06-00
Unavailable
24
HOSE
90445-14M11-00
Unavailable
25
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
26
SCREEN, INTAKE
6R7-51333-00-00
Unavailable
27
DUCT, INTAKE
6R7-51311-00-00
Unavailable
28
. PACKING
6R7-51117-01-00
Unavailable
29
PIN, DOWEL(6R7)
93606-07M17-00
Unavailable
30
RING,TRIM
62T-51190-01-00
Unavailable
31
BOLT, HEXAGON
97095-08018-00
Unavailable
32
.. WASHER, PLATE
92990-08600-00
Unavailable
33
COLLAR
90387-08M08-00
Unavailable
34
STAY
6BA-51387-00-00
Unavailable
35
BOLT, HEXAGON DEEP RECESS
97D95-06014-00
Unavailable
36
WASHER, PLAIN (646)
92990-06600-00
$2.80
37
BOLT(7U8)
97080-06020-00
Unavailable
38
WASHER, PLAIN (646)
92990-06600-00
$2.80
39
WASHER, PLATE
90201-06M31-00
Unavailable
40
NUT(650)
95380-06700-00
Unavailable
41
PIPE 1
6BA-51673-00-00
Unavailable
42
CLAMP
90465-10098-00
Unavailable
43
BOLT, WITH WASHER
90119-06896-00
Unavailable
44
BOLT, WITH WASHER
90119-06908-00
Unavailable
45
BOLT, WITH WASHER
90119-10948-00
Unavailable
46
SHIM (T=0.5)
EW2-67354-C0-00
Unavailable
46
SHIM (T=1.0)
EW2-67354-D0-00
Unavailable
47
NUT(FJ0)
90179-06947-00
Unavailable
48
NUT
90179-08962-00
Unavailable
49
SCREW, TAPPING
97780-60520-00
Unavailable
50
NUT
90179-10925-00
Unavailable
51
SEAL
EW2-62723-30-00
Unavailable
52
PLATE 2
F2F-6273B-09-00
Unavailable
53
BOLT, WITH WASHER
90119-08943-00
Unavailable
