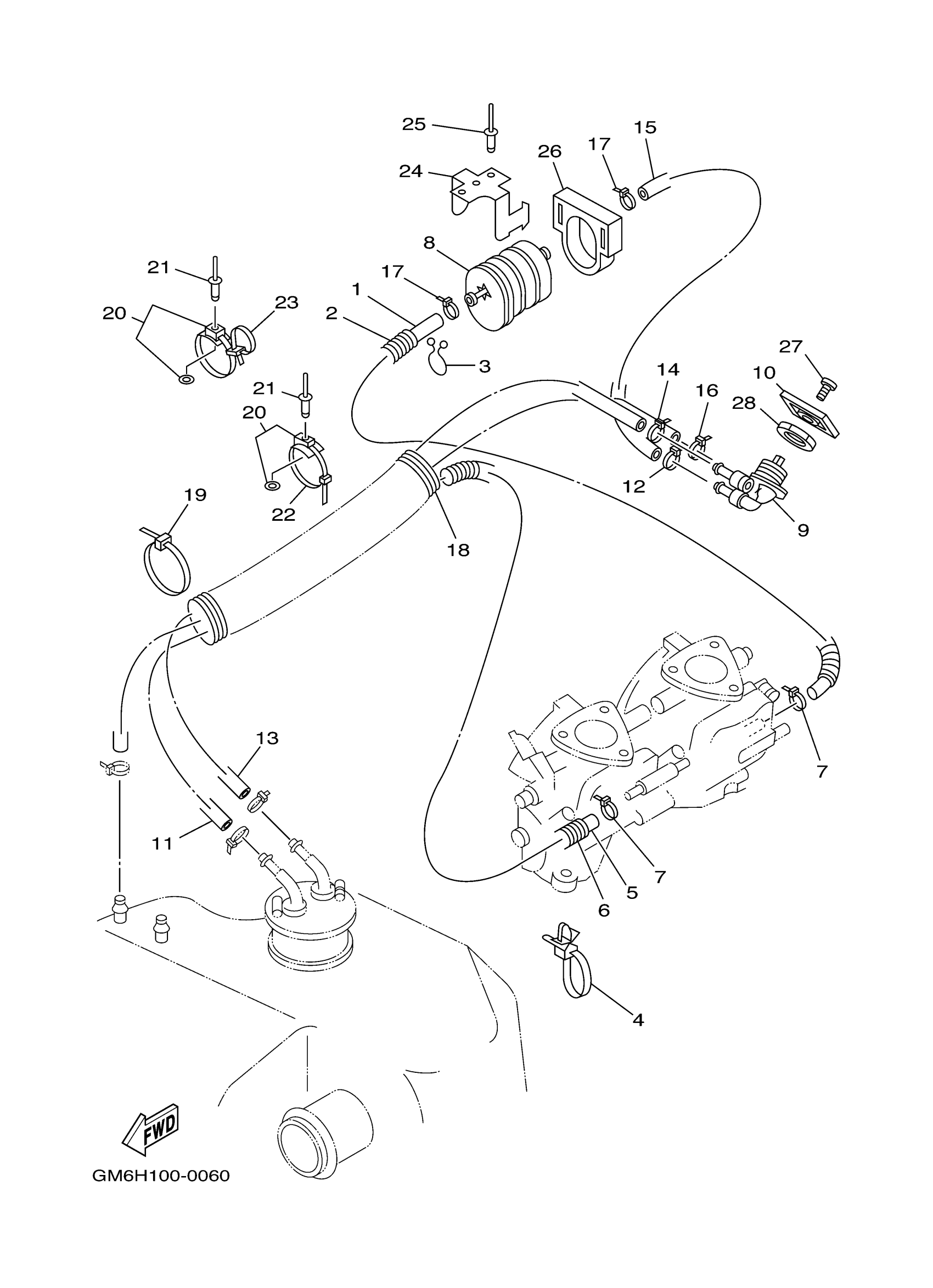

Yamaha SJ700BM (SUPER JET) F2FP 2013 FUEL Diagram
#
Description
Price
1
PIPE 2
6BA-24312-00-00
Unavailable
2
TUBE
EU0-67731-00-00
Unavailable
3
CLAMP
90465-18147-00
$7.49
4
CLAMP(62T)
90465-12M56-00
$8.49
5
PIPE 3
6BA-24313-00-00
Unavailable
6
HOSE(64U)
90446-14M64-00
Unavailable
7
CLAMP
90464-36005-00
Unavailable
8
FILTER ASSY
6K8-24560-21-00
Unavailable
9
FUEL COCK ASSY 1
6K8-24500-03-00
Unavailable
10
LEVER, COCK
6R7-24524-00-00
Unavailable
11
PIPE 4
6BA-24314-00-00
Unavailable
12
CLAMP
90464-36005-00
Unavailable
13
PIPE 5
6BA-24315-00-00
Unavailable
14
CLAMP
90464-36005-00
Unavailable
15
PIPE 6
6BA-24316-00-00
Unavailable
16
CLAMP
90464-36005-00
Unavailable
17
CLAMP
90464-36005-00
Unavailable
18
TUBE,2
GM6-6773E-00-00
Unavailable
19
BAND (EU0)
90601-20009-00
Unavailable
20
CLAMP COMP (EU0)
90600-91736-00
Unavailable
21
RIVET, BLIND
90267-48802-00
Unavailable
22
BAND (EU0)
90601-20009-00
Unavailable
23
NYLON CLIP 1(GD0)
90601-20016-00
Unavailable
24
BRACKET, FUEL FILTER
FN8-67816-00-00
Unavailable
25
RIVET, BLIND
90267-48802-00
Unavailable
26
HOLDER
EU0-67817-00-00
Unavailable
27
SCREW, BIND
98980-04008-00
Unavailable
28
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
