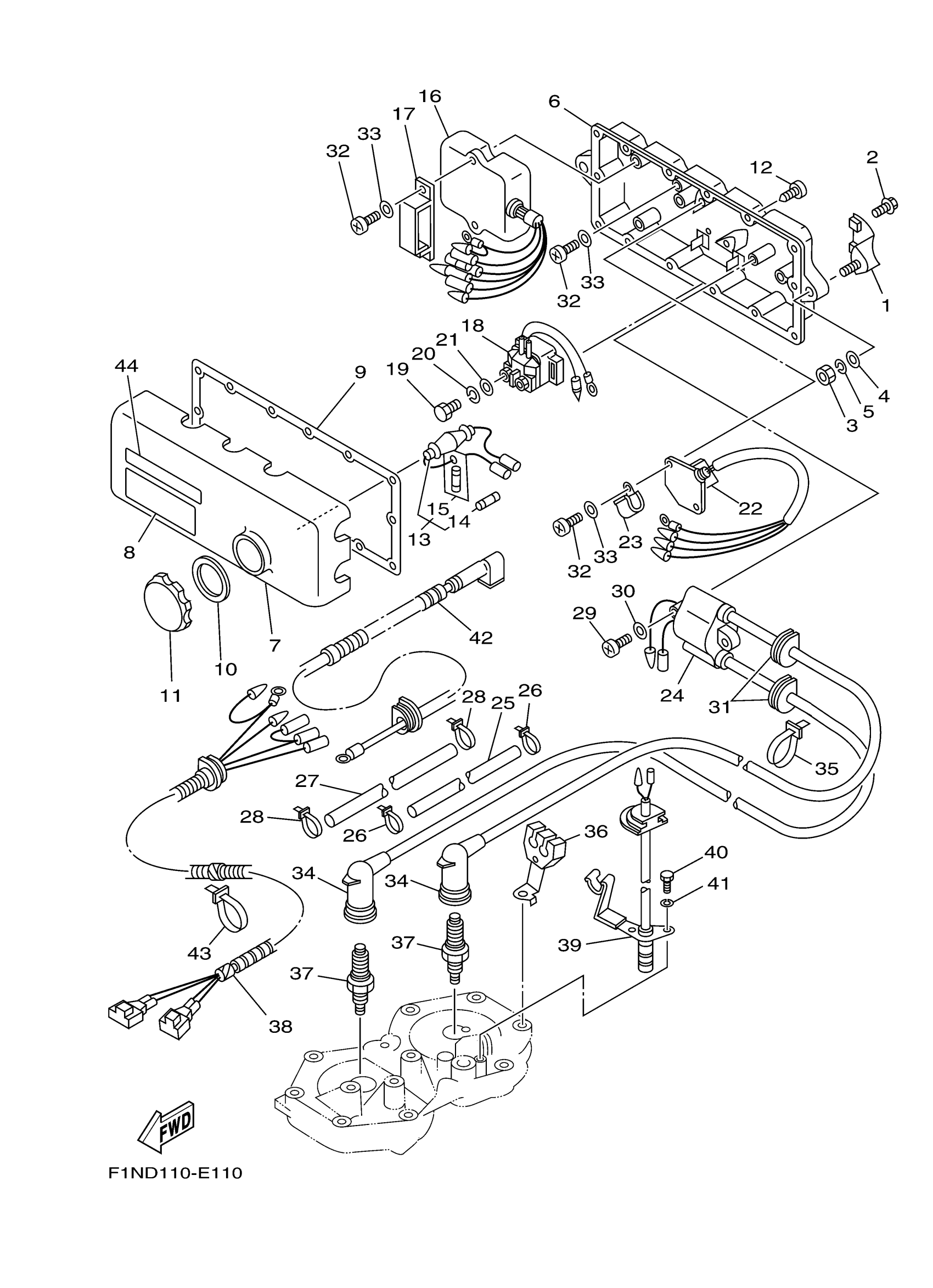

Yamaha SJ700BL (SUPER JET) F2FK 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

EW2-68156-00-00

Unavailable

2

BOLT, WITH WASHER

90119-06908-00

Unavailable

3

NUT (661)

95380-08600-00

$7.49

4

WASHER, PLAIN

92990-08200-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

HOUSING

6M6-8552A-01-8P

Unavailable

7

COVER, CASE

6M6-8552E-01-00

Unavailable

8

MARK 3

6B6-83623-00-00

Unavailable

9

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

10

GASKET

6M6-81844-00-00

Unavailable

11

CAP

6M6-8132W-00-00

Unavailable

12

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

13

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

14

FUSE (10A)

1E6-82151-00-00

$7.99

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

Unavailable

18

STARTER RELAY ASSY

68N-81940-00-00

Unavailable

19

BOLT

97085-06010-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

23

CLAMP

90465-06M86-00

Unavailable

24

IGNITION COIL ASSY

62E-85570-00-00

Unavailable

25

TUBE, CORD

63M-82351-00-00

Unavailable

26

CLAMP

90465-10098-00

Unavailable

27

TUBE, CORD

63M-82351-00-00

Unavailable

28

CLAMP

90465-10098-00

Unavailable

29

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

GROMMET

90480-06M43-00

Unavailable

32

SCREW, PAN HEAD

98580-06016-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

PLUG CAP ASSY

66T-82370-00-00

Unavailable

35

CLAMP

90465-10098-00

Unavailable

36

CLAMP, CORD

6R7-82361-02-00

Unavailable

37

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

38

EXTENSION, WIRE LEAD

6R7-82553-01-00

Unavailable

39

THERMO SWITCH ASSY

6R7-82560-11-00

Unavailable

40

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

WIRE, LEAD

62E-82117-20-00

Unavailable

43

CLAMP (6E5)

90465-13M11-00

Unavailable

44

LABEL, CAUTION 7

60E-83627-00-00

Unavailable
