2011 Yamaha Super JET (SJ700BK) Intake Diagram

← All diagrams

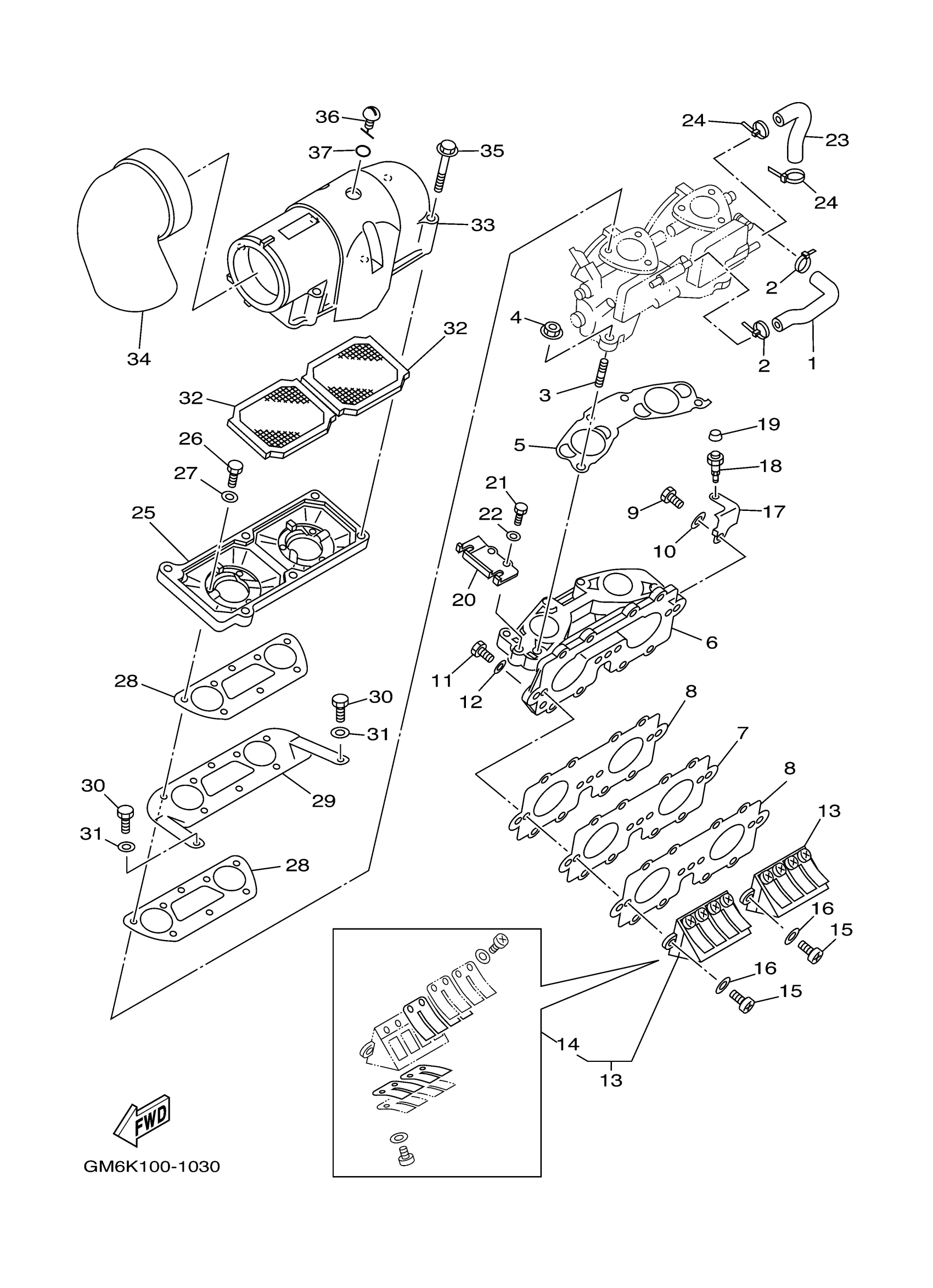

Find the part on the Intake diagram for your 2011 Yamaha Super JET (SJ700BK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha Super JET (SJ700BK) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, FUEL 1

6BA-24311-00-00

1

$24.99

In stock

2

CLAMP

90464-36005-00

1

$0.88

In stock

3

BOLT, STUD

90116-08M60-00

1

$4.62

In stock

4

NUT

90179-08M15-00

1

$8.99

In stock

5

. GASKET, MANIFOLD

62T-13556-00-00

1

$12.66

In stock

6

MANIFOLD, INTAKE

62T-13555-00-00

1

$133.49

In stock

7

. PLATE,REED VALVE

62T-13624-00-00

1

$19.98

In stock

8

. GASKET

62T-13566-00-00

1

$9.49

In stock

9

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

BOLT(62Y)

97013-06025-00

1

$1.37

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

REED VALVE ASSY

62T-13610-00-00

1

$163.99

In stock

14

. REED SET

62T-W0004-00-00

1

$98.99

In stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

PLATE

62T-14243-01-00

1

$18.49

In stock

18

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

19

CAP, GREASE NIPPLE

663-45119-01-00

—

$1.86

In stock

20

PLATE

62T-14527-02-00

1

$18.49

In stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

23

PIPE 4

62T-24314-01-00

1

$9.22

In stock

24

CLAMP

90464-36005-00

1

$0.88

In stock

25

COVER, CARBURETOR 2

62T-14284-10-8S

1

$118.99

In stock

26

BOLT(62Y)

97013-06020-00

—

$1.31

In stock

27

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

28

1

$5.93

In stock

29

PLATE

62T-14255-00-00

1

$45.49

In stock

30

BOLT (661)

97013-06012-00

—

$4.71

In stock

31

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

32

ELEMENT, AIR CLEANER

62T-14451-00-00

1

$38.49

In stock

33

COVER, CARBURETOR 1

62T-14283-01-00

1

$50.99

In stock

34

PIPE

62T-14419-00-00

1

$78.99

In stock

35

BOLT, WITH WASHER

90119-05M02-00

1

$3.16

In stock

36

GROMMET

62T-14435-00-00

1

$3.95

In stock

37

. O-RING

93210-13M63-00

1

$3.84

In stock
