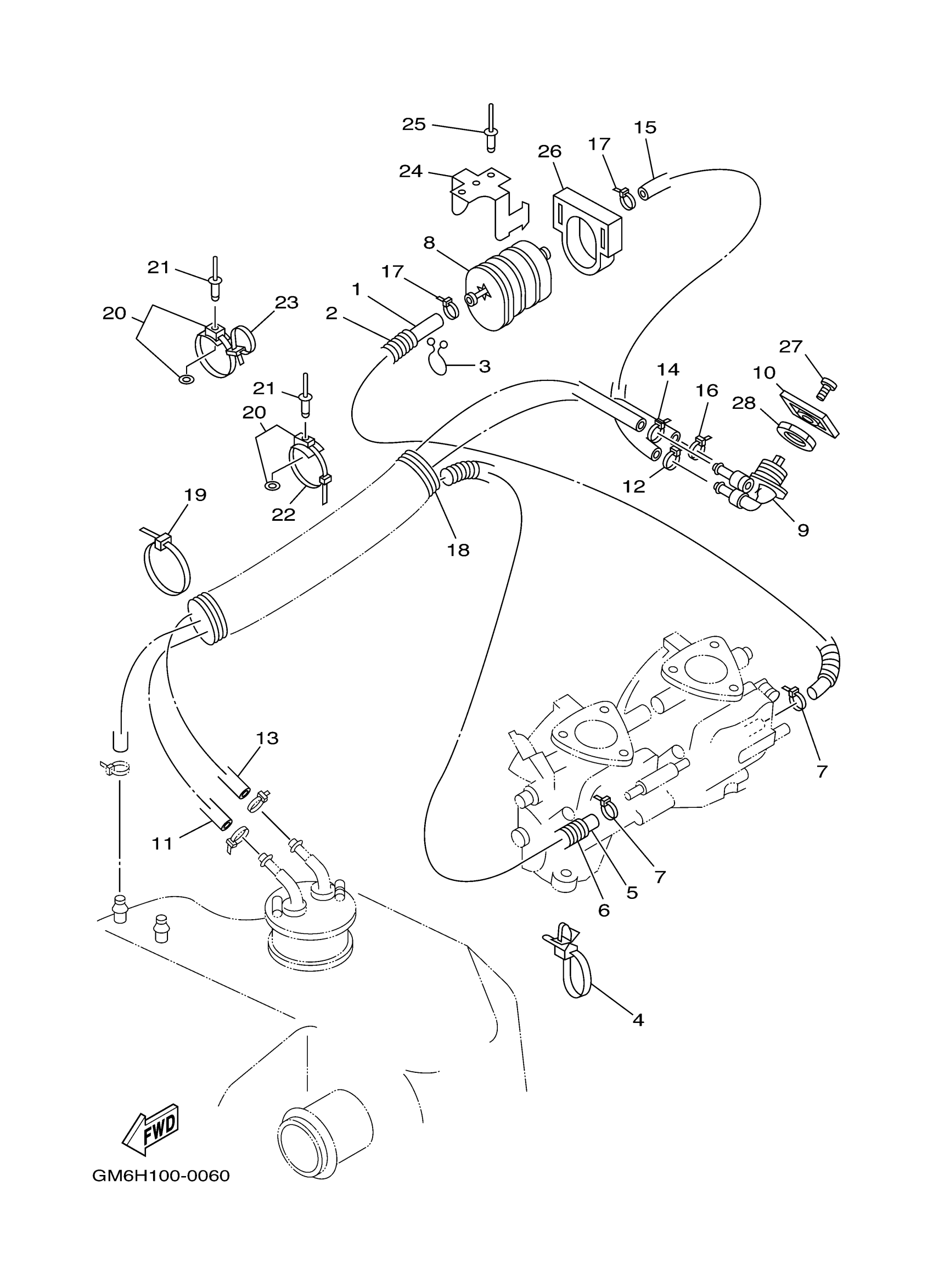

Yamaha SJ700BK (SUPER JET) F2FE 2011 FUEL Diagram

#

Description
Price

1

PIPE 2

6BA-24312-00-00

$18.49

2

TUBE

EU0-67731-00-00

Unavailable

3

CLAMP

90465-18147-00

$5.39

4

CLAMP(62T)

90465-12M56-00

$6.94

5

PIPE 3

6BA-24313-00-00

$111.93

6

HOSE(64U)

90446-14M64-00

Unavailable

7

CLAMP

90464-36005-00

$0.86

8

FILTER ASSY

6K8-24560-21-00

$27.27

9

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

10

LEVER, COCK

6R7-24524-00-00

$7.21

11

PIPE 4

6BA-24314-00-00

$77.60

12

CLAMP

90464-36005-00

$0.86

13

PIPE 5

6BA-24315-00-00

$79.09

14

CLAMP

90464-36005-00

$0.86

15

PIPE 6

6BA-24316-00-00

$18.64

16

CLAMP

90464-36005-00

$0.86

17

CLAMP

90464-36005-00

$0.86

18

TUBE,2

GM6-6773E-00-00

$11.18

19

BAND (EU0)

90601-20009-00

$6.27

20

CLAMP COMP (EU0)

90600-91736-00

Unavailable

21

RIVET, BLIND

90267-48802-00

$1.98

22

BAND (EU0)

90601-20009-00

$6.27

23

NYLON CLIP 1(GD0)

90601-20016-00

Unavailable

24

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

25

RIVET, BLIND

90267-48802-00

$1.98

26

HOLDER

EU0-67817-00-00

$13.67

27

SCREW, BIND

98980-04008-00

$3.14

28

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable
