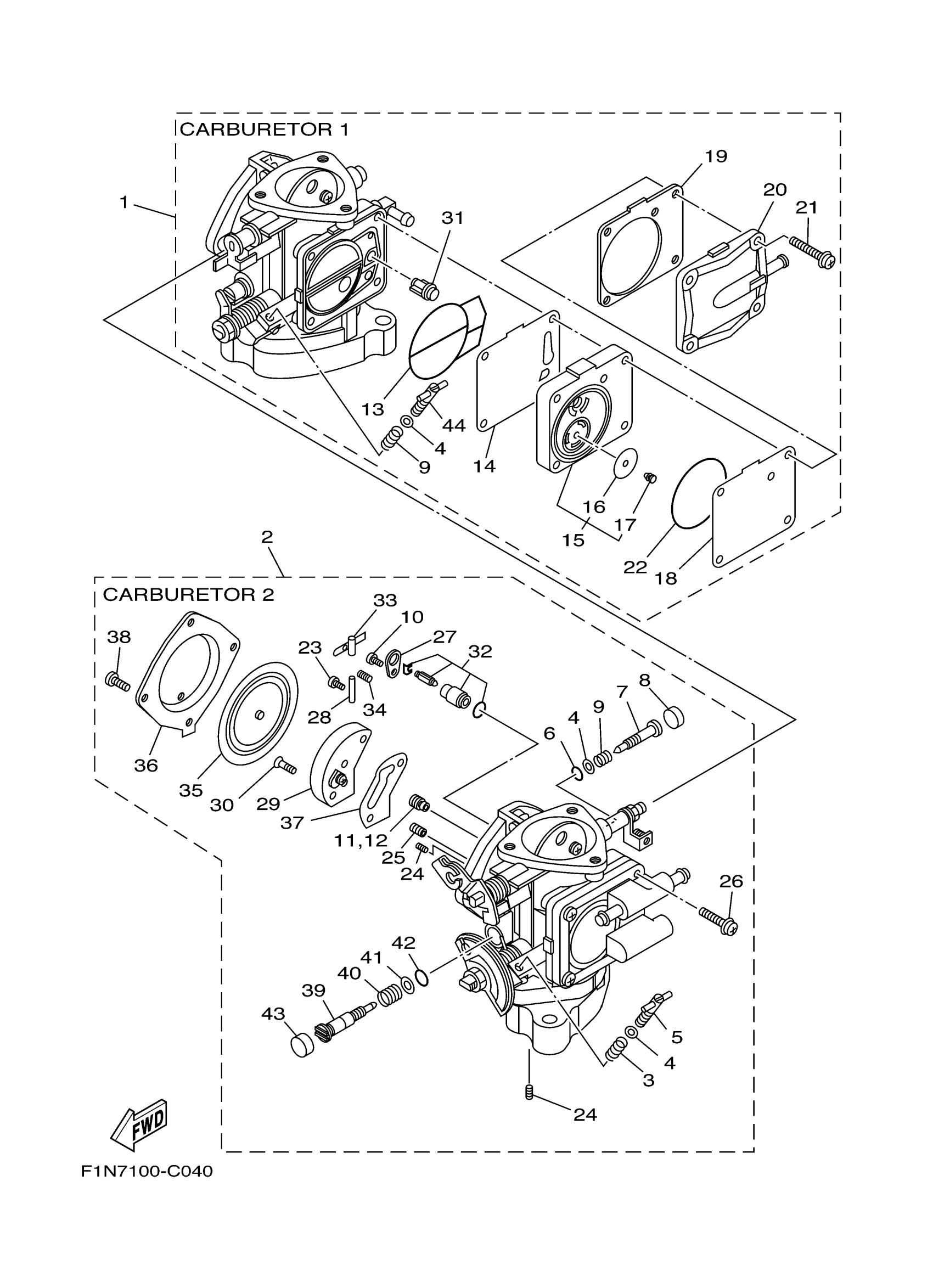

Yamaha SJ700BK (SUPER JET) F2FE 2011 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
64U-14301-11-00
Unavailable
2
CARBURETOR ASSY 2
64U-14302-11-00
Unavailable
3
. SPRING, THROTTLE STOP
47X-14133-00-00
Unavailable
4
WASHER,NEEDLE
812-14235-00-00
Unavailable
5
SCREW,ADJUST
6M6-14521-01-00
Unavailable
6
. O-RING
6K8-14562-00-00
Unavailable
7
. PLATE, NEEDLE FITTING
64U-14946-00-00
Unavailable
8
. PLUG
64U-1432A-00-00
Unavailable
9
SPRING, THROTTLE VALVE
68V-14331-00-00
Unavailable
10
. SCREW
6M6-14503-00-00
Unavailable
11
JET, MAIN (#130)
3G2-14231-26-A0
$10.99
12
JET, MAIN (#130)
3G2-14231-26-A0
$10.99
13
. O-RING
6K8-14564-00-00
Unavailable
14
. DIAPHRAGM
6K8-24411-20-00
Unavailable
15
BODY 2
6M6-24413-02-00
Unavailable
16
.. VALVE, CHECK
65U-24421-00-00
Unavailable
17
.. BUSH, FUEL PUMP
65U-24492-00-00
Unavailable
18
. VALVE, CHECK
6K8-24421-10-00
Unavailable
19
. GASKET, FUEL PUMP 1
6K8-24431-20-00
Unavailable
20
. COVER
6K8-24452-10-00
Unavailable
21
SCREW, WITH WASHER(61B)
97985-05330-00
Unavailable
22
. O-RING
6K8-14563-00-00
Unavailable
23
. SCREW
6K8-14503-02-00
Unavailable
24
. SCREW
6K8-14521-10-00
Unavailable
25
JET, MAIN (# 70)
830-14231-14-00
Unavailable
26
. SCREW, PAN HEAD
98580-05018-00
Unavailable
27
. PLATE
6K8-14527-11-00
Unavailable
28
. PIN, FLOAT
439-14186-00-00
Unavailable
29
. BODY 1
6R7-24412-02-00
Unavailable
30
SCREW, STOP
6K8-14523-12-00
Unavailable
31
. STRAINER
6R7-14569-00-00
Unavailable
32
NEEDLE
61X-14916-16-00
Unavailable
33
. ARM, FLOAT
6K8-14547-01-00
Unavailable
34
. SPRING
6R7-14253-00-00
Unavailable
35
. DIAPHRAGM, PUMP
6R7-14541-00-00
Unavailable
36
. BODY, PUMP 1
6R7-14542-00-00
Unavailable
37
. GASKET
6K8-14536-11-00
Unavailable
38
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
39
. SCREW, PILOT
64U-14923-10-00
Unavailable
40
. SPRING
6K8-14589-00-00
Unavailable
41
WASHER, NEEDLE
822-14235-00-00
Unavailable
42
O-RING
583-14561-00-00
Unavailable
43
. PLUG
64U-1432A-10-00
Unavailable
44
SCREW, ADJUST
6K8-14521-02-00
Unavailable
