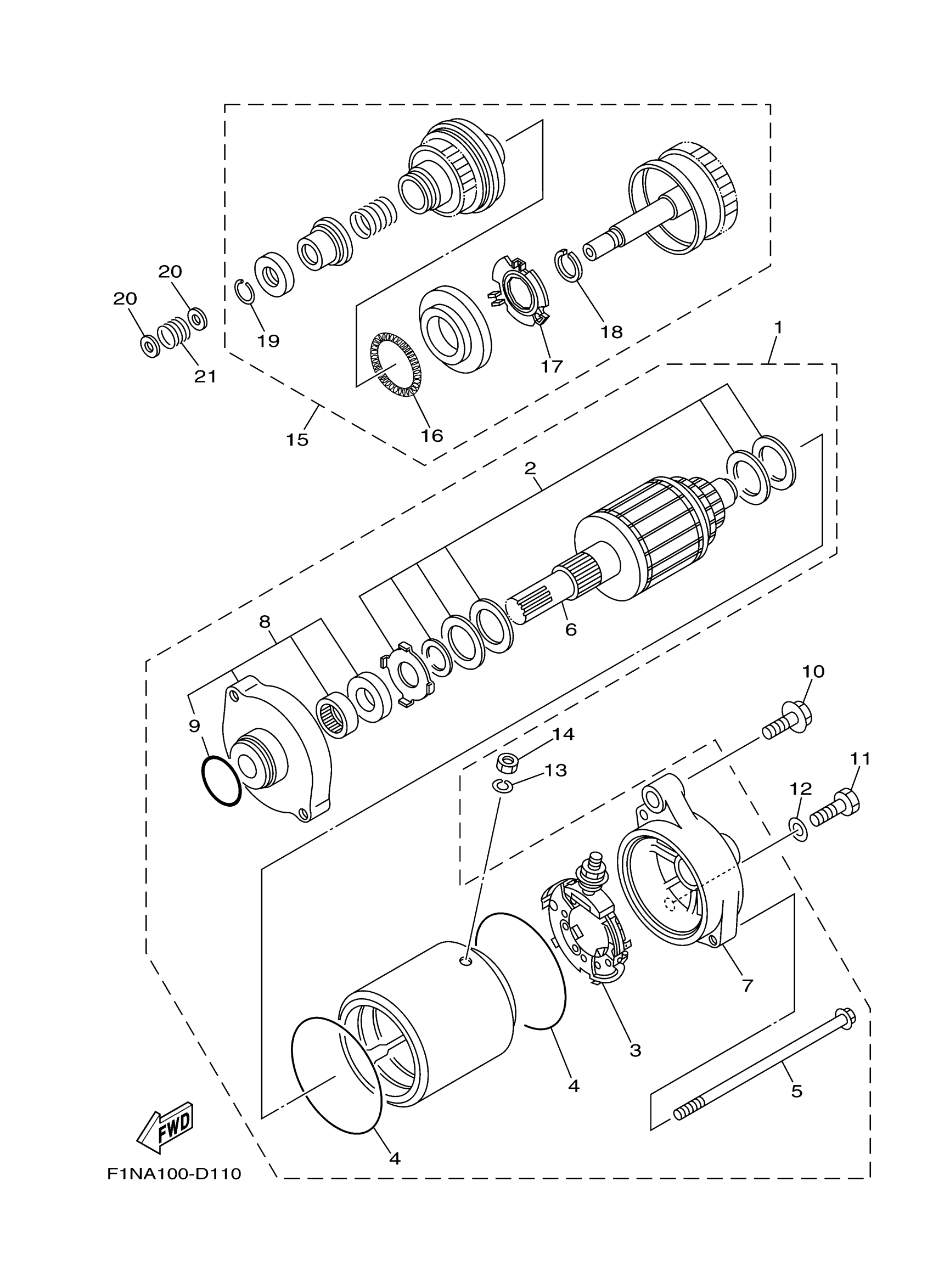

Yamaha SJ700BJ (SUPER JET) F2F9 2010 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSY

6M6-81800-10-00

$367.90

2

WASHER KIT

3AJ-81809-00-00

Unavailable

3

. BRUSH HOLDER ASSY

6M6-81840-10-00

$122.71

4

GASKET

35C-81844-00-00

Unavailable

5

. BOLT

6M6-81826-00-00

$8.51

6

. ARMATURE ASSY

6M6-81850-00-00

$487.86

7

. REAR BRACKET ASSY

6M6-81820-00-00

$171.20

8

. FRONT BRACKET ASSY

6M6-81830-00-00

$136.35

9

O-RING (437)

93210-24235-00

$5.34

10

BOLT, WITH WASHER

97513-08540-00

$3.18

11

BOLT

97013-08035-00

$4.48

12

.. WASHER, PLATE

92990-08600-00

$2.17

13

WASHER, SPRING

92995-06100-00

$2.95

14

NUT(650)

95380-06700-00

$5.75

15

IDLE GEAR COMP.

6M6-8183E-01-00

$431.80

16

. WEIGHT SPRING

6M6-81866-00-00

$14.38

17

. WEIGHT HOLDER

6M6-81865-00-00

$10.74

18

CIRCLIP(6M6)

93440-25M08-00

Unavailable

19

CIRCLIP(6M6)

93450-18M06-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

SPRING, COMPRESSION

90501-14M73-00

$7.40
