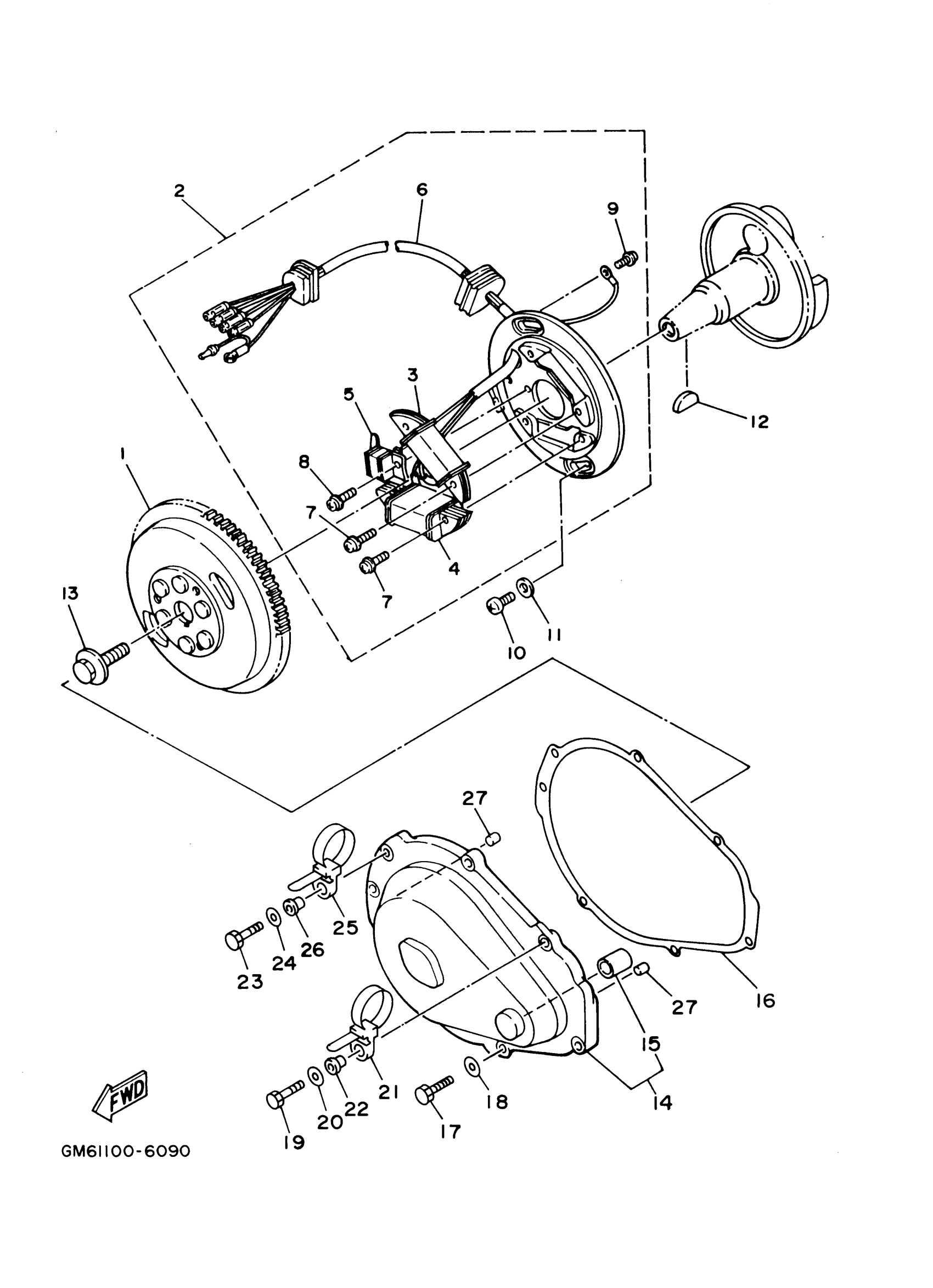

Yamaha SJ700BJ (SUPER JET) F2F9 2010 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

62T-85550-01-00

Unavailable

2

BASE ASSY

6R8-85560-11-00

Unavailable

3

COIL, CHARGE

62T-85520-01-00

$159.08

4

. COIL, LIGHTING

62T-85533-00-00

$132.18

5

. COIL, PULSER

6M6-85580-00-00

$169.68

6

LEAD WIRE ASY

6R8-85515-10-00

Unavailable

7

. SCREW, WITH WASHER

97902-05125-00

$2.00

8

. SCREW, WITH WASHER

97902-04122-00

$6.36

9

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

10

SCREW, PAN HEAD

98580-06016-00

$2.88

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

KEY, WOODRUFF

90280-05001-00

$11.00

13

BOLT

90109-10M44-00

$26.99

14

COVER, FLYWHEEL

6M6-81337-00-8S

$142.41

15

. BUSH, SOLID

90380-12M29-00

Unavailable

16

. GASKET, HOLE COVER

6M6-81365-A0-00

$37.49

17

BOLT

90101-06M27-00

$3.14

18

WASHER, PLAIN (646)

92990-06600-00

$1.84

19

BOLT(J52)

97080-06035-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$1.84

21

CLAMP

90465-12M53-00

$5.00

22

COLLAR

90387-06M05-00

$6.45

23

BOLT(J52)

97080-06035-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

$1.84

25

CLAMP

90465-12M53-00

$5.00

26

COLLAR

90387-06M05-00

$6.45

27

PIN, DOWEL (614)

93606-12019-00

Unavailable
