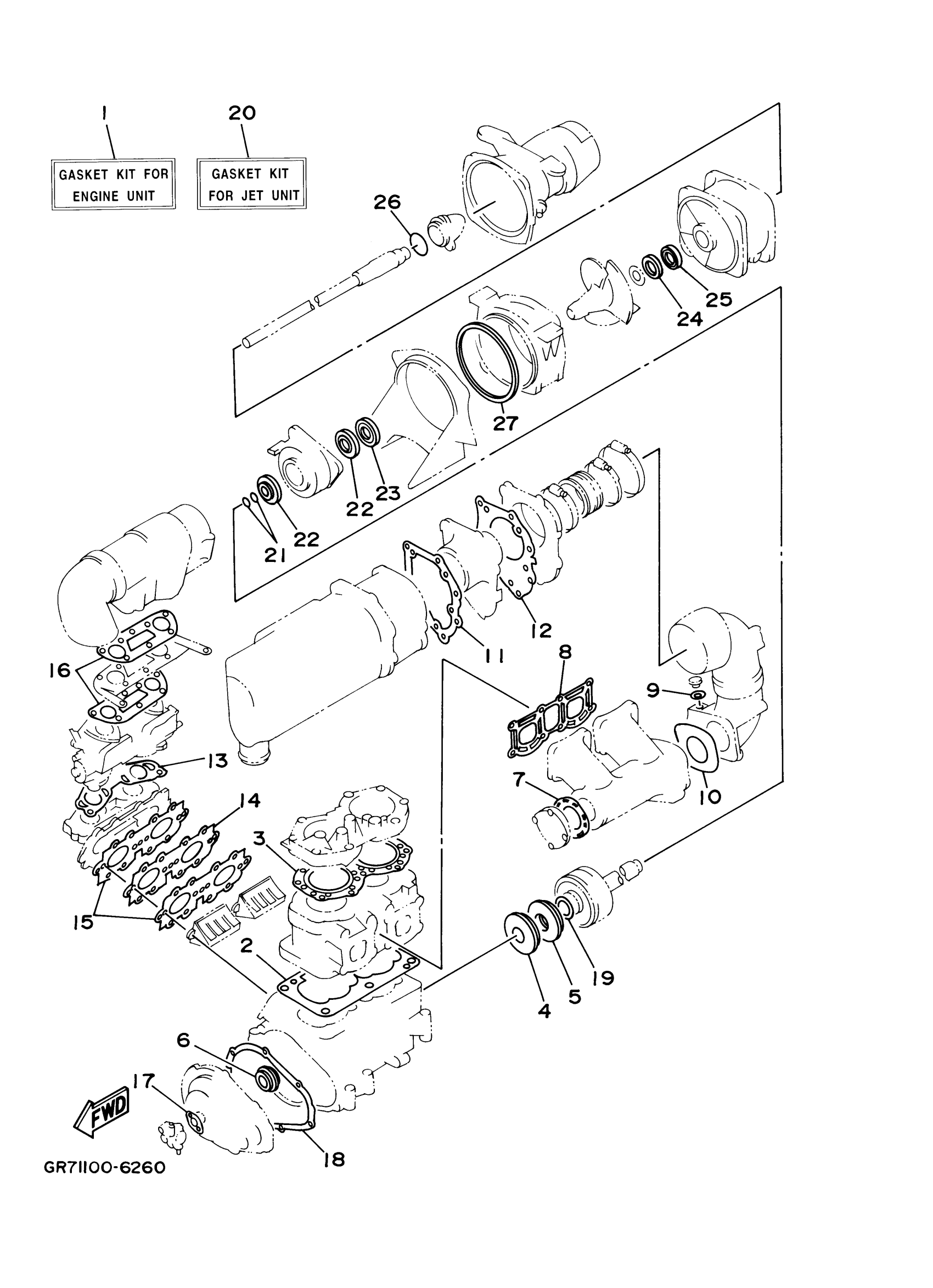

Yamaha SJ700BG (Super Jet) F2F1 2008 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

64U-W0001-00-00

$178.77

2

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

3

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$59.08

4

. OIL SEAL

93102-36M33-00

$15.55

5

. OIL SEAL

93101-36M46-00

$17.41

6

. OIL SEAL

93103-32M01-00

$14.81

7

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

8

GASKET, EXHAUST PIPE

61X-14613-A1-00

$27.26

9

GASKET

90430-08003-00

$1.08

10

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

11

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

12

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

13

. GASKET, MANIFOLD

62T-13556-00-00

$11.85

14

. PLATE,REED VALVE

62T-13624-00-00

$19.68

15

. GASKET

62T-13566-00-00

$8.88

16

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

$5.55

17

. GASKET, PUMP CASE

6R8-13116-A0-00

$2.95

18

. GASKET, HOLE COVER

6M6-81365-A0-00

$37.49

19

SEAL

62T-45127-01-00

Unavailable

20

GASKETKIT FOR JET UNIT

61X-W0001-22-00

$107.56

21

O-RING(6R7)

93210-17MA4-00

Unavailable

22

OIL SEAL(62T)

93101-25M55-00

Unavailable

23

OIL SEAL

93101-24001-00

Unavailable

24

OIL SEAL(6R7)

93102-25M34-00

Unavailable

25

OIL SEAL(6R7)

93101-25M50-00

Unavailable

26

. O-RING

93210-46M16-00

$7.15

27

. PACKING

6R7-51117-01-00

$39.38
