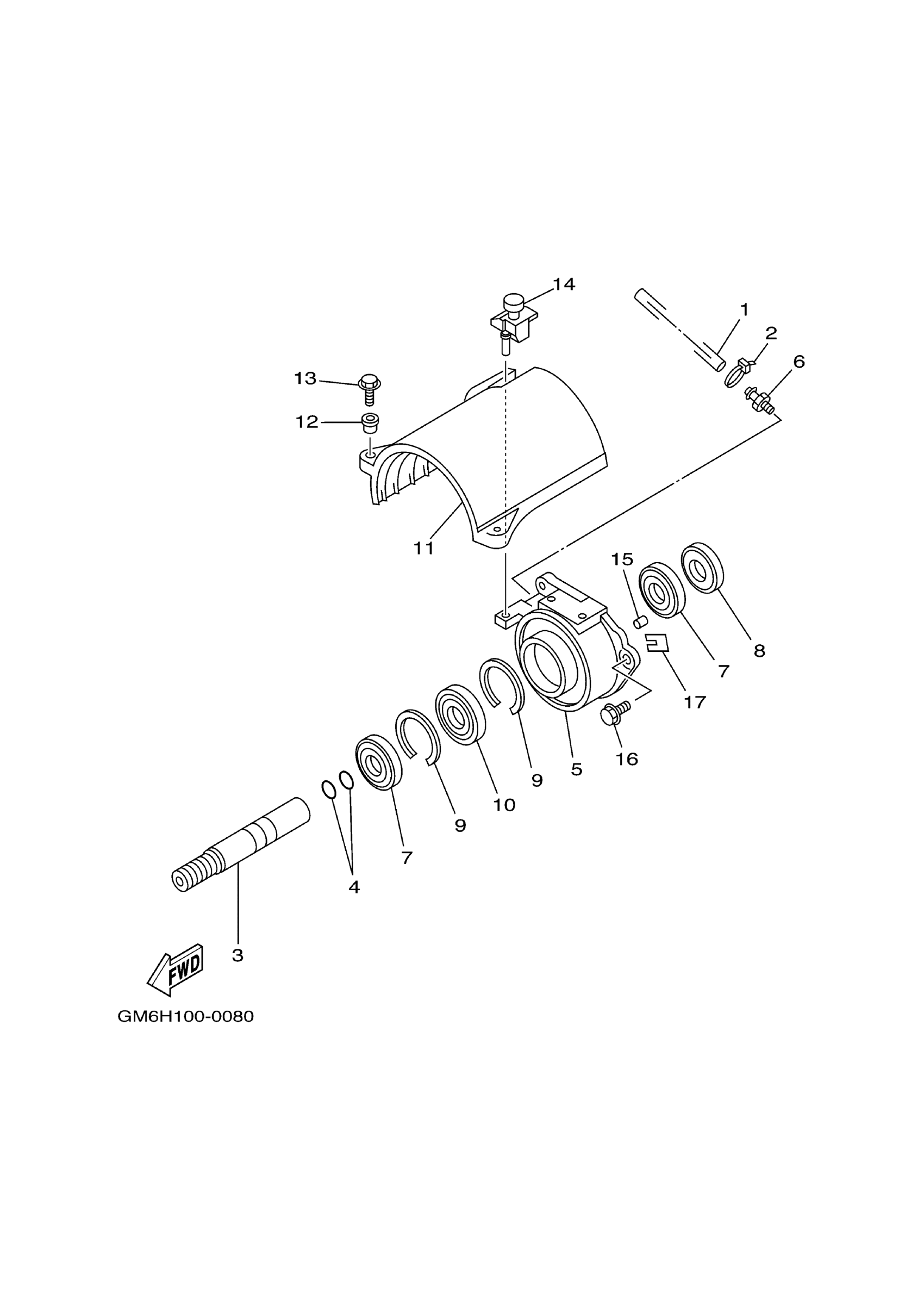

Yamaha SJ700BG (Super Jet) F2F1 2008 JET UNIT 2 Diagram

#

Description
Price

1

HOSE (L445)

90445-09M21-00

$20.98

2

CLAMP

90465-10098-00

$2.24

3

SHAFT, COUPLER

6R7-51323-02-00

$252.22

4

O-RING(6R7)

93210-17MA4-00

$4.65

5

HOUSING, BEARING

61X-G5332-00-00

$134.54

6

NIPPLE, HOSE

61L-45378-00-00

$8.73

7

OIL SEAL(62T)

93101-25M55-00

$24.36

8

OIL SEAL

93101-24001-00

$30.69

9

CIRCLIP

93430-47M04-00

$5.31

10

BEARING(62G)

93306-205U6-00

$53.13

11

COVER

61X-51381-00-00

$25.11

12

COLLAR

90387-06M60-00

$6.83

13

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.04

14

GROMMET(GD0)

90480-06M69-00

$55.25

15

PIN, DOWEL (614)

93606-12019-00

$3.50

16

BOLT, WITH WASHER

90119-08907-00

$5.17

17

SHIM (T=0.5)

GD0-67249-A0-00

$4.31

17

SHIM (T=1.0)

GD0-67249-00-10

Unavailable
