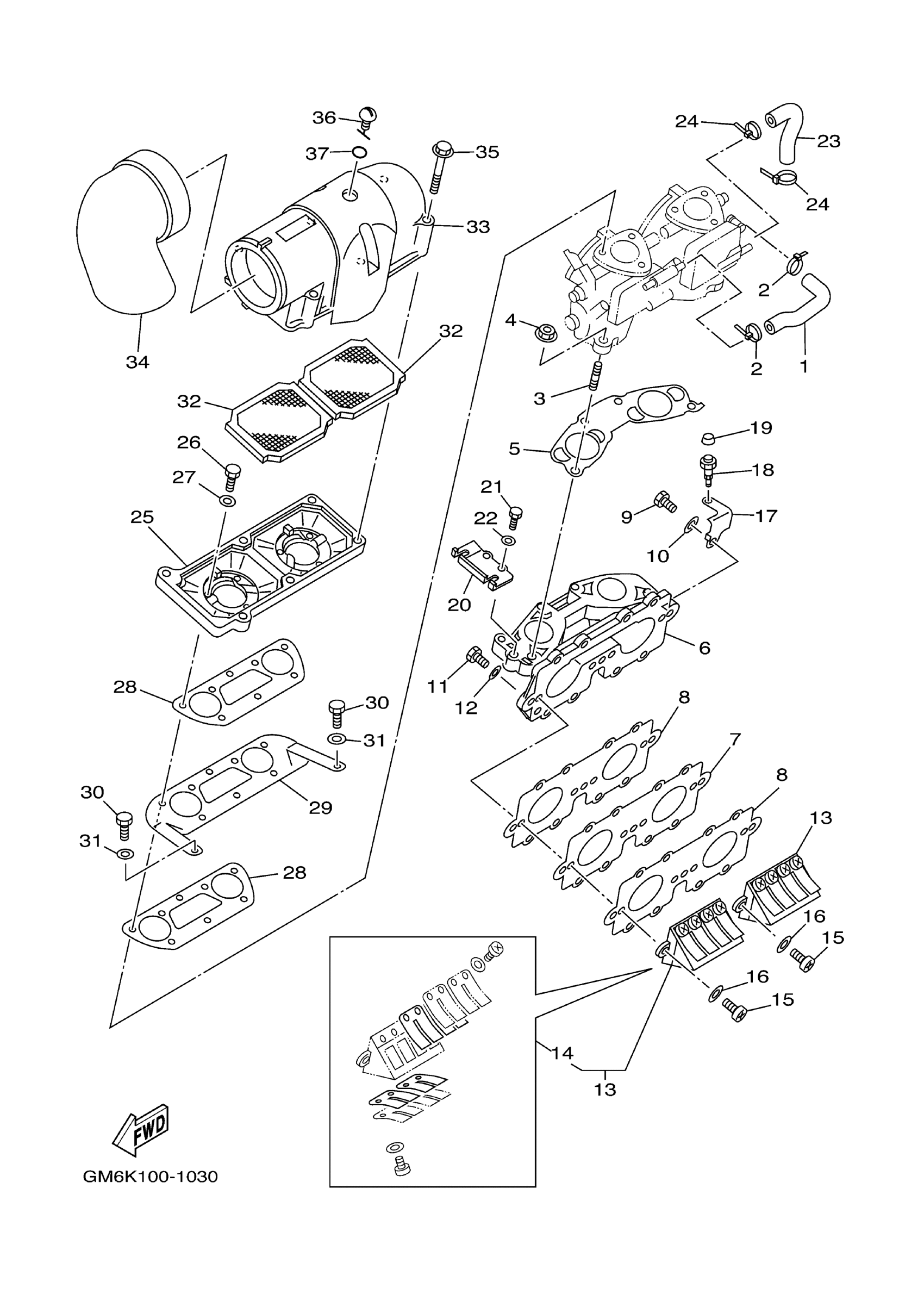

Yamaha SJ700BF (SuperJet) F1NG 2007 INTAKE Diagram
#
1
PIPE 3
62T-24313-01-00
Unavailable
2
CLAMP
90465-10098-00
Unavailable
3
BOLT, STUD
90116-08M60-00
Unavailable
4
NUT
90179-08M15-00
Unavailable
5
. GASKET, MANIFOLD
62T-13556-00-00
Unavailable
6
MANIFOLD, INTAKE
62T-13555-00-00
Unavailable
7
. PLATE,REED VALVE
62T-13624-00-00
Unavailable
8
. GASKET
62T-13566-00-00
Unavailable
9
BOLT(3RV)
97014-06035-00
$2.75
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
BOLT(62Y)
97013-06025-00
$1.06
12
WASHER, PLAIN (646)
92990-06600-00
$2.80
13
REED VALVE ASSY
62T-13610-00-00
Unavailable
14
. REED SET
62T-W0004-00-00
Unavailable
15
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
16
WASHER, PLAIN (646)
92990-05600-00
Unavailable
17
PLATE
62T-14243-01-00
Unavailable
18
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
19
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
20
PLATE
62T-14527-02-00
Unavailable
21
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
$2.80
23
PIPE 4
62T-24314-01-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
COVER, CARBURETOR 2
62T-14284-10-8S
Unavailable
26
BOLT(62Y)
97013-06020-00
Unavailable
27
WASHER, PLAIN (646)
92990-06600-00
$2.80
28
. GASKET, AIR COOLER COVER 1
62T-13674-00-00
Unavailable
29
PLATE
62T-14255-00-00
Unavailable
30
BOLT (661)
97013-06012-00
Unavailable
31
WASHER, PLAIN (646)
92990-06600-00
$2.80
32
ELEMENT, AIR CLEANER
62T-14451-00-00
Unavailable
33
COVER, CARBURETOR 1
62T-14283-01-00
Unavailable
34
PIPE
62T-14419-00-00
Unavailable
35
BOLT, WITH WASHER
90119-05M02-00
Unavailable
36
GROMMET
62T-14435-00-00
Unavailable
37
. O-RING
93210-13M63-00
Unavailable
