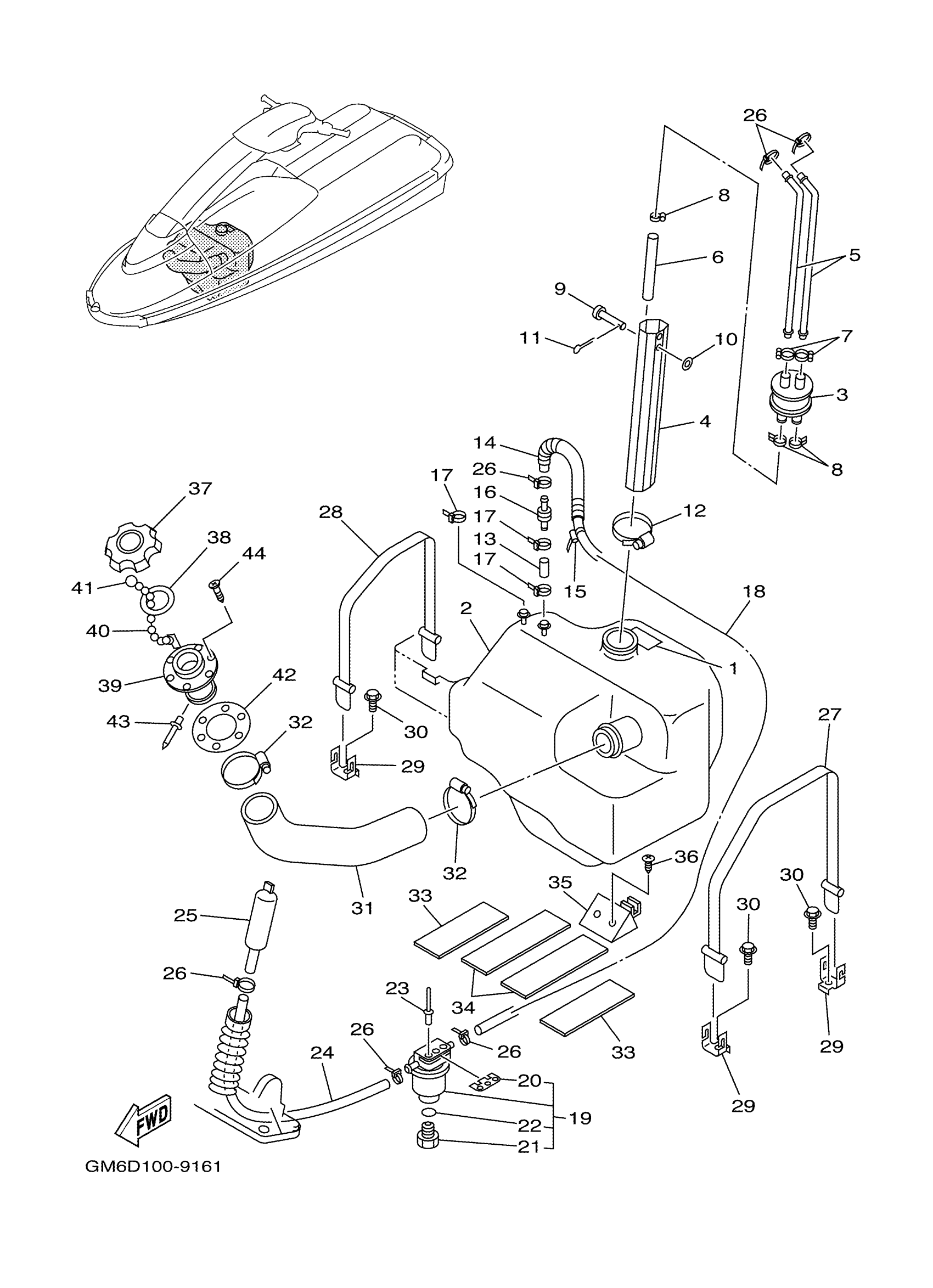

Yamaha SJ700BF (SuperJet) F1NG 2007 FUEL TANK Diagram

#

Description
Price

1

LABEL,FUEL TANK

GM6-6418D-00-00

$16.99

2

TANK, FUEL

EW2-67711-01-00

$271.20

3

PIPE, JOINT

FJ0-67713-01-00

Unavailable

4

PIPE, FILLER

EW2-67716-02-00

$24.98

5

PIPE, SUCTION 3

EW2-67714-02-00

$16.99

6

HOSE (L198)

90445-11293-00

$6.69

7

BAND, HOSE 11

90601-11062-00

Unavailable

8

CLIP (7K7)

90467-11044-00

$4.89

9

PIN (FJ0)

91790-05040-00

$2.53

10

WASHER, PLAIN (646)

92990-05600-00

Unavailable

11

PIN. COTTER

91490-16010-00

$2.36

12

BAND, HOSE 62

90601-16274-00

$19.68

13

HOSE

90699-50100-00

$26.99

14

HOSE(6TC)

90446-14M51-00

$5.67

15

CLAMP (6E5)

90465-13M11-00

$5.31

16

CHECK VALVE

EU0-67767-31-00

$20.93

17

CLAMP

90465-10098-00

$1.68

18

HOSE (L1200)

90699-50120-00

Unavailable

19

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

20

. PLATE, FILTER

EW2-62142-00-00

$44.99

21

. PLUG, DRAIN

70R-24543-00-00

$9.08

22

. O-RING

70R-24489-00-00

$5.00

23

RIVET, BLIND

90267-48802-00

$1.98

24

HOSE (L450)

90699-50045-00

Unavailable

25

AIR, VENT ASSY

EW2-62150-00-00

$20.99

26

CLAMP

90465-10098-00

$1.68

27

BAND, FUEL TANK

EW2-67821-30-00

$28.73

28

BAND, FUEL TANK

EW2-67821-00-00

$38.49

29

HOOK A

EW2-65772-00-00

$7.40

30

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

31

HOSE

GM6-67844-11-00

$116.65

32

BAND, HOSE 55

90601-15573-00

$12.86

33

MAT

GM6-67593-00-00

$23.99

34

MAT

GM6-67594-00-00

Unavailable

35

DAMPER, FUEL TANK

EW2-67822-01-00

$62.11

36

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.57

37

CAP, FUEL FILLER (YAMAHA BLACK)

FN8-67831-01-00

$50.42

38

PACKING 1

EU0-67832-00-00

$7.40

39

SOCKET

FN8-67833-00-00

Unavailable

40

. CHAIN BALL

EU0-67835-00-00

$5.18

41

COUPLING

EU0-67839-00-00

$6.36

42

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

43

. RIVET, BLIND

90267-40935-00

$1.28

44

SCREW, FLAT HEAD

EU0-67869-00-00

$3.64
