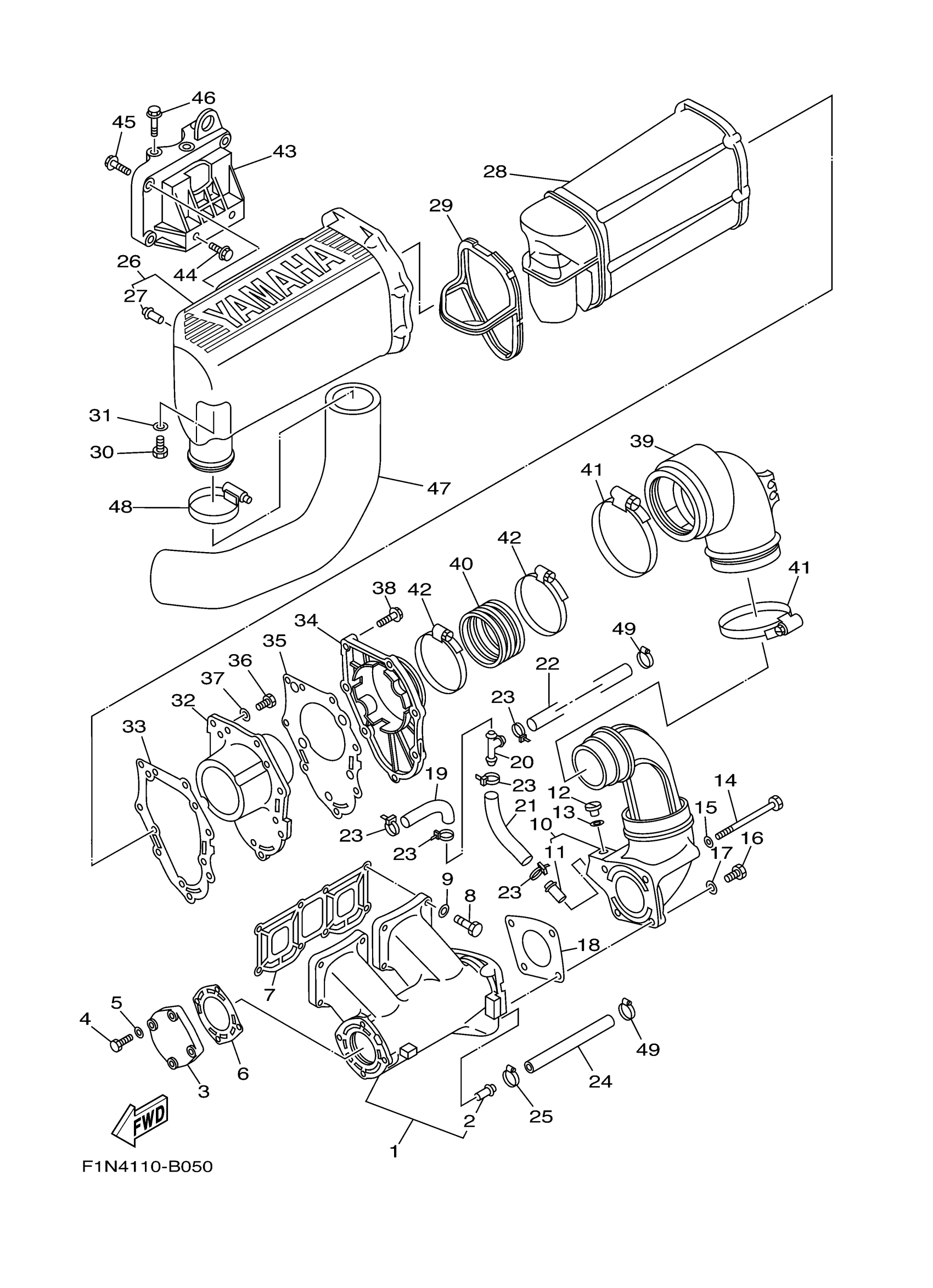

Yamaha SJ700BF (SuperJet) F1NG 2007 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

61X-14711-02-00

$478.77

2

. NIPPLE

6K8-51129-00-00

$9.62

3

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.99

4

BOLT(62Y)

97013-06025-00

$1.35

5

WASHER, PLAIN (646)

92990-06600-00

$1.84

6

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

7

GASKET, EXHAUST PIPE

61X-14613-A1-00

$27.26

8

BOLT

97013-08035-00

$4.48

9

.. WASHER, PLATE

92990-08600-00

$2.17

10

RING, JOINT

61L-14712-00-00

Unavailable

11

. NIPPLE

6K8-51129-00-00

$9.62

12

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

13

GASKET

90430-08003-00

$1.08

14

BOLT, WITH WASHER

97513-08590-00

Unavailable

15

.. WASHER, PLATE

92990-08600-00

$2.17

16

BOLT (682)

97013-08025-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

19

HOSE

90445-14M11-00

Unavailable

20

PIPE, JOINT 3

6E5-24378-00-00

$15.68

21

HOSE

90445-14M11-00

Unavailable

22

HOSE (L1300)

90445-14M22-00

Unavailable

23

CLAMP

90465-10098-00

$1.68

24

HOSE

90445-14M03-00

Unavailable

25

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

26

MUFFLER 2

6R7-14721-00-8S

$363.62

27

. PIPE, JOINT

6R7-14485-00-00

$11.99

28

SILENCER, EXHAUST

6R7-14753-00-8S

$203.02

29

SEAL, RUBBER 1

6R7-15761-00-00

$27.26

30

BOLT(62Y)

97013-06020-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

$1.84

32

DIFFUSER

6R7-14785-00-8S

$104.53

33

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

34

OUTER COVER, EXHAUST

6R7-41113-00-8S

$109.08

35

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

37

WASHER, PLAIN (646)

92990-06600-00

$1.84

38

BOLT, WITH WASHER(63M)

97513-06530-00

$3.98

39

JOINT, EXHAUST 1

61L-14615-00-00

$99.53

40

JOINT, EXHAUST 2

61L-14625-00-00

$75.81

41

CLAMP, HOSE

90460-90M11-00

$42.60

42

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

43

STAY, MUFFLER 1

6M6-14771-00-00

$98.47

44

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

45

BOLT, FLANGE

90105-10M88-00

$2.95

46

BOLT, WITH WASHER

90119-10M17-00

$9.08

47

PIPE, OUTLET

64V-14752-00-00

$178.77

48

CLAMP, HOSE(6R7)

90460-64M15-00

Unavailable

49

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable
