- SJ700BF (SuperJet) F1NG 2007
ENGINE HATCH

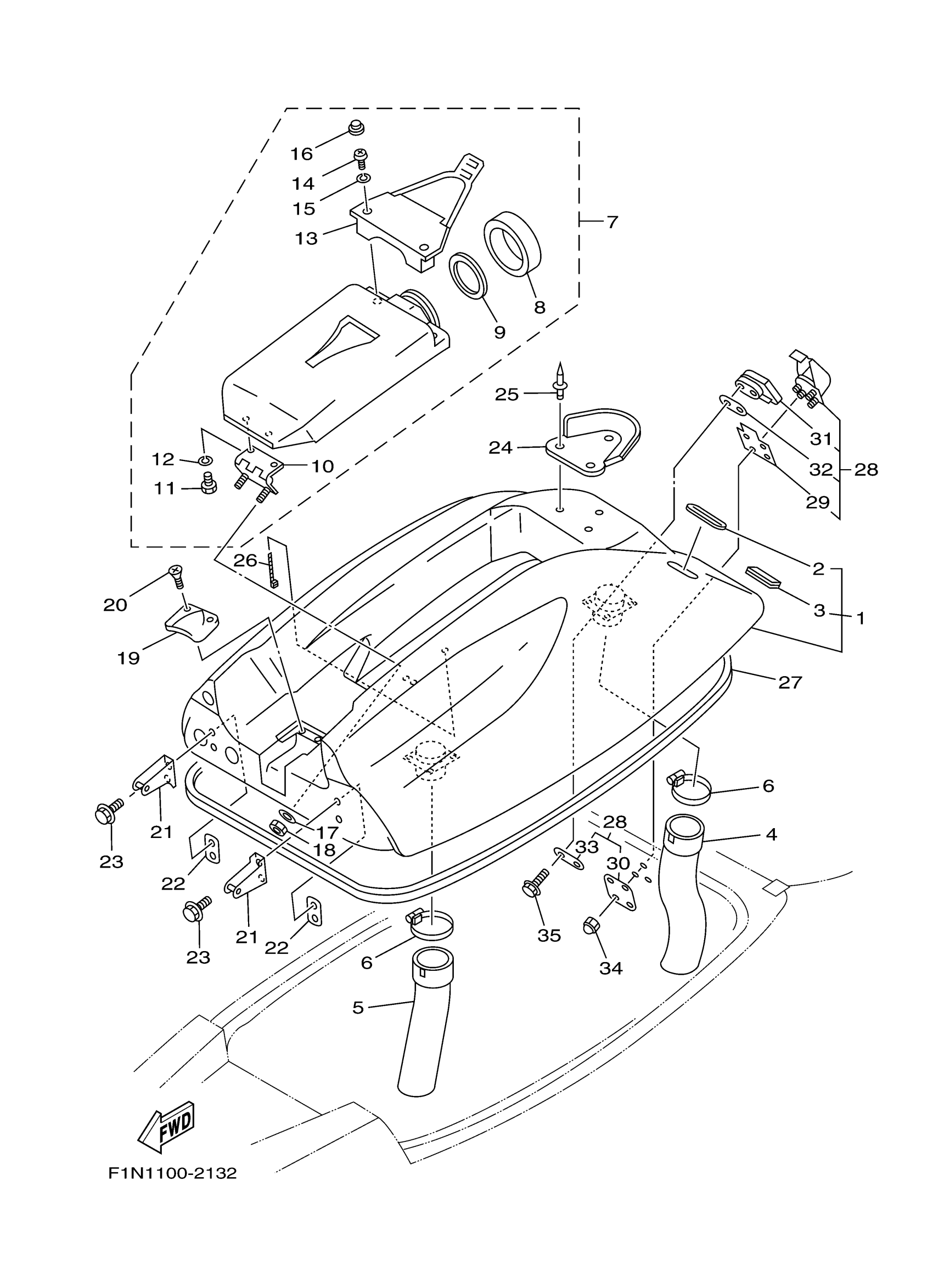

Yamaha SJ700BF (SuperJet) F1NG 2007 ENGINE HATCH Diagram
#
1
ENGINE HATCH COMP. (YAMAHA BLACK) (BLACK COAT 1)
GM6-6516A-10-33
Unavailable
2
. TRIM,HATCH 2
FX1-65116-10-00
Unavailable
3
. TRIM 1
GM6-6516C-00-00
Unavailable
4
HOSE,VENTILATOR 1
GM6-6213F-00-00
Unavailable
5
HOSE, VENTILATOR 2
EW2-62137-00-00
Unavailable
6
BAND, HOSE 68 (FJ0)(TAIWAN)
90601-16875-00
$33.99
7
CASE,ASSY 1
FX1-6591A-10-00
Unavailable
8
. CAP, CASE
EW2-65912-00-00
Unavailable
9
. PACKING, CASE
EW2-65913-00-00
Unavailable
10
HINGE, LID
FX1-6517D-00-00
Unavailable
11
BOLT, HEXAGON DEEP RECESS
97D95-06014-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
BAND,CASE
FX1-6591K-00-00
Unavailable
14
SCREW, PAN HEAD
98580-06016-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
CAP
FX1-6514F-00-00
Unavailable
17
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
18
NUT, SELF-LOCKING
95720-06300-00
Unavailable
19
PLATE, HATCH (FL1)
A00-62858-02-00
Unavailable
20
YBS81-516 SCREW,O.HEAD TAPPING
97780-50316-00
Unavailable
21
STOPPER HATCH 2
GM6-65136-00-00
Unavailable
22
PLATE, STOPPER HATCH 2
EW2-65137-00-00
Unavailable
23
BOLT, WITH WASHER
90119-06900-00
Unavailable
24
DAMPER, POLE
FX1-6514B-00-00
Unavailable
25
RIVET (EU0)
90267-48938-00
Unavailable
26
CLAMP
90464-20258-00
Unavailable
27
PACKING
GM6-62664-01-00
Unavailable
28
HATCH LOCK ASSY
EW2-62840-11-00
Unavailable
29
. PACKING, HATCH LOCK
EW2-62845-10-00
Unavailable
30
. PLATE, HATCH LOCK
EW2-62846-00-00
Unavailable
31
. HOOK, HATCH LOCK
EW2-62843-00-00
Unavailable
32
. PACKING, HOOK
EW2-62847-00-00
Unavailable
33
. PLATE, HOOK
EW2-62848-00-00
Unavailable
34
NUT, FLANGE
95720-05300-00
Unavailable
35
BOLT WITH WASHER (EW2)
90119-05923-00
Unavailable
