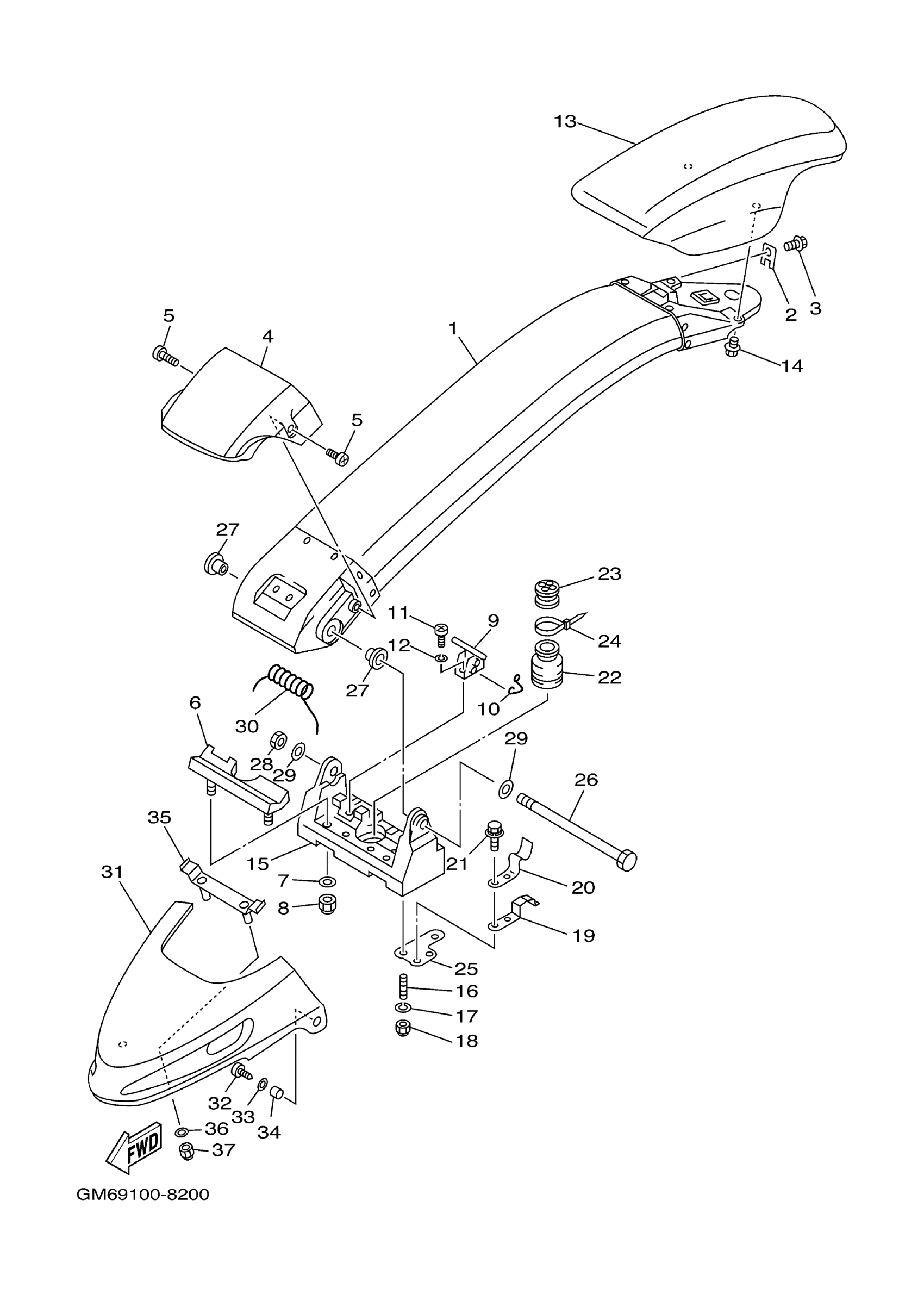

Yamaha SJ700BC (SuperJet) F1N7 2004 STEERING 2 Diagram
#
1
STEERING POLE COMP.
GM6-6491A-09-5W
Unavailable
2
STOPPER, CABLE
FX1-61468-00-00
Unavailable
3
BOLT, WITH WASHER
90119-06913-00
Unavailable
4
COVER,POLE
FX1-6492E-10-00
Unavailable
5
SCREW(FX1)
90149-06997-00
$12.49
6
STOPPER, POLE
FX1-61337-00-00
Unavailable
7
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
8
NUT, SELF-LOCKING
95720-06300-00
Unavailable
9
STOPPER PIN ASSY
FX1-61105-00-00
Unavailable
10
SPRING, TORSION
EW2-61395-30-00
Unavailable
11
SCREW,PAN HEAD (646)
98580-05012-00
$7.99
12
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
13
STEERING PAD COMP
GM6-6142A-31-00
Unavailable
14
BOLT H/W (FJ1)
90119-06918-00
$10.49
15
BRACKET,PIVOT
FX1-6133C-13-00
Unavailable
16
BOLT, STUD
95680-08630-00
Unavailable
17
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
18
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
19
PLATE,GUIDE
GM6-6215G-00-00
Unavailable
20
STOPPER, HATCH 1
GM6-65135-00-00
Unavailable
21
BOLT, WITH WASHER
90119-06900-00
Unavailable
22
GROMMET
FX1-61338-00-00
Unavailable
23
PACKING, CABLE
EW2-61465-00-00
Unavailable
24
BAND (EU0)
90601-20009-00
Unavailable
25
PLATE, BRACKET
GM6-6133B-00-00
Unavailable
26
SHAFT,PIVOT
FX1-6134L-00-00
Unavailable
27
BUSH
EW2-61344-01-00
Unavailable
28
. NUT
95380-14700-00
Unavailable
29
WASHER, PLAIN
92990-14200-00
Unavailable
30
SPRING, PIVOT
FX1-61391-00-00
Unavailable
31
COVER,PIVOT 1
GM6-6492J-30-00
Unavailable
32
SCREW, TAPPING
97780-60520-00
Unavailable
33
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
34
COLLAR(GH1)
90387-06916-00
Unavailable
35
BRACKET
GM6-64949-00-00
Unavailable
36
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
37
NUT, SELF-LOCKING
95720-06300-00
Unavailable
