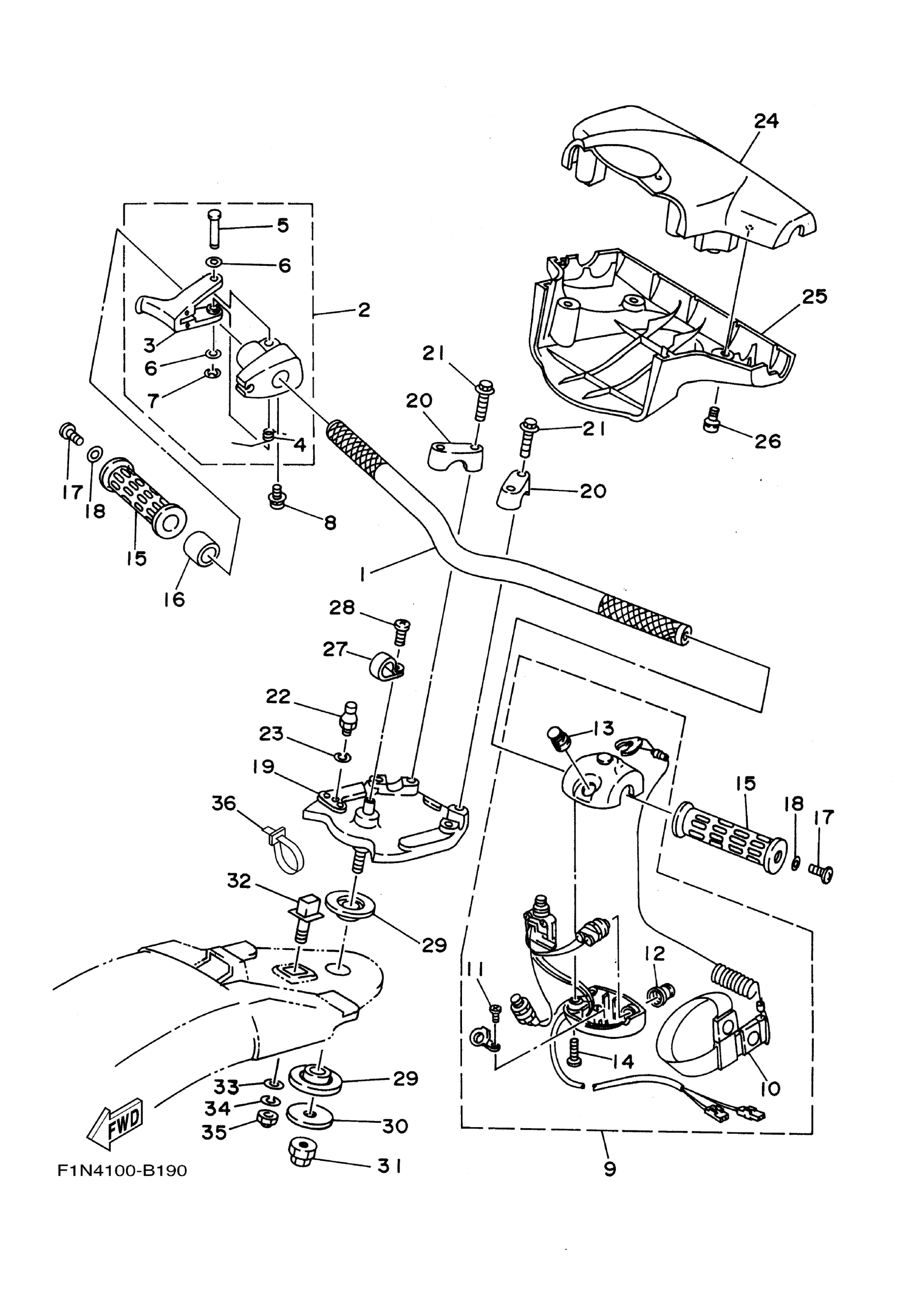

Yamaha SJ700BC (SuperJet) F1N7 2004 STEERING 1 Diagram
#
1
HANDLE
FX1-61552-00-00
Unavailable
2
THROTTLE LEVER ASSY
EW2-67250-02-00
Unavailable
3
. LEVER, THROTTLE
EW2-67255-00-00
Unavailable
4
. SPRING
EW2-67256-00-00
Unavailable
5
. SHAFT
EW2-67257-01-00
Unavailable
6
WASHER, PLAIN (646)
92990-05600-00
$0.80
7
CIRCLIP (EU0)
99080-04600-00
Unavailable
8
SCREW, WITH WASHER
90159-05900-00
Unavailable
9
SWITCH BOX ASSY
EW2-68310-04-00
Unavailable
10
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
11
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
12
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
13
. START BUTTON COMP
FK7-68313-02-00
Unavailable
14
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
15
GRIP, HANDLE 1
EW2-61553-00-00
Unavailable
16
SPACER(1LX)
90560-22281-00
Unavailable
17
SCREW,TRASS HEAD (FJ0)
90149-05959-00
Unavailable
18
WASHER, PLATE
90201-05800-00
Unavailable
19
BRAKE, ASSY.
EW2-61540-11-00
Unavailable
20
HOLDER, HANDLE UPPER
EU0-23814-02-00
Unavailable
21
BOLT, FLANGE (EW2)
90105-08902-00
Unavailable
22
STUD, JOINT BALL
EU0-61461-02-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
PAD, STEERING 1
FX1-6143D-20-00
Unavailable
25
PAD, STEERING 2
FX1-6143E-20-00
Unavailable
26
SCREW
90149-05937-00
Unavailable
27
CLIP, NYLON 17
90600-91728-00
Unavailable
28
SCREW, BINDING (M01)
98980-04010-00
Unavailable
29
BEARING, COLUMN
EW2-61417-00-00
Unavailable
30
WASHER, STEERING
EW2-61419-00-00
Unavailable
31
NUT (EW2)
90179-12933-00
Unavailable
32
PIN, STOPPER 1
EW2-61314-00-00
Unavailable
33
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
34
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
35
NUT, CROWN(GM6)
90176-10915-00
Unavailable
36
CLAMP (6E5)
90465-13M11-00
Unavailable
