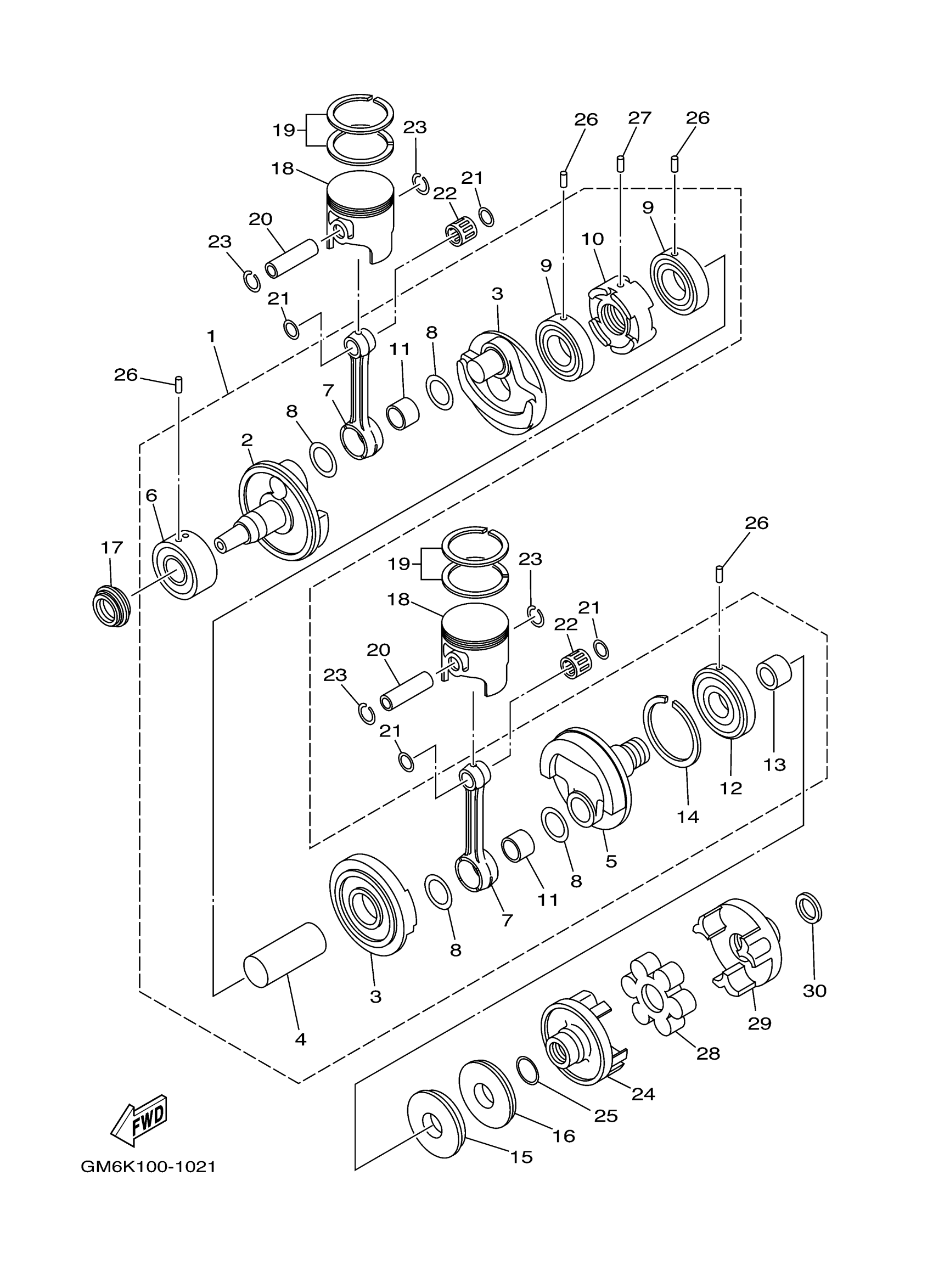

Yamaha SJ700BC (SuperJet) F1N7 2004 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

62T-11400-02-00

Unavailable

2

. CRANK 1

6M6-11412-00-00

Unavailable

3

. CRANK 2

6M6-11422-00-00

Unavailable

4

. CRANK 3

6M6-11431-00-00

Unavailable

5

. CRANK 4

6M6-11442-01-00

Unavailable

6

BEARING(8AB)

93305-30601-00

$193.99

7

. ROD, CONNECTING

64X-11651-01-00

Unavailable

8

WASHER(8AY)

90209-25325-00

$19.99

9

BEARING (8U9)

93306-20712-00

$79.99

10

SEAL, LABYRINTH 1

82M-11515-00-00

Unavailable

11

. BEARING

93310-525U0-00

Unavailable

12

BEARING(6M6)

93306-307U3-00

Unavailable

13

. COLLAR, DRIVE SHAFT

62T-45526-00-00

Unavailable

14

CIRCLIP (834)

93440-80023-00

$15.99

15

. OIL SEAL

93102-36M33-00

Unavailable

16

. OIL SEAL

93101-36M46-00

Unavailable

17

. OIL SEAL

93103-32M01-00

Unavailable

18

PISTON (STD)

61X-11631-02-93

Unavailable

18

PISTON (0.25MM O/S)

61X-11635-02-00

Unavailable

18

PISTON (0.50MM O/S)

61X-11636-02-00

Unavailable

19

PISTON RING SET (STD)

61X-11603-01-00

Unavailable

19

PISTON RING SET (0.25MM O/S)

61X-11604-01-00

Unavailable

19

PISTON RING SET (0.50MM O/S)

61X-11605-01-00

Unavailable

20

PIN, PISTON

61X-11633-00-00

Unavailable

21

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

22

BEARING, CYLINDRICAL(62T)

93310-320U2-00

Unavailable

23

CIRCLIP (8H0)

93450-21053-00

Unavailable

24

FLANGE, COUPLING

6M6-45813-32-8P

Unavailable

25

SEAL

62T-45127-01-00

Unavailable

26

PIN (2H7)

93603-10049-00

Unavailable

27

PIN, DOWEL (8H1)

93604-07141-00

Unavailable

28

RUBBER SHAFT COUPLING

61X-4581J-00-00

Unavailable

29

FLANGE, COUPLING

6M6-45813-22-8P

Unavailable

30

WASHER, PLATE(61X)

90201-24M02-00

Unavailable
