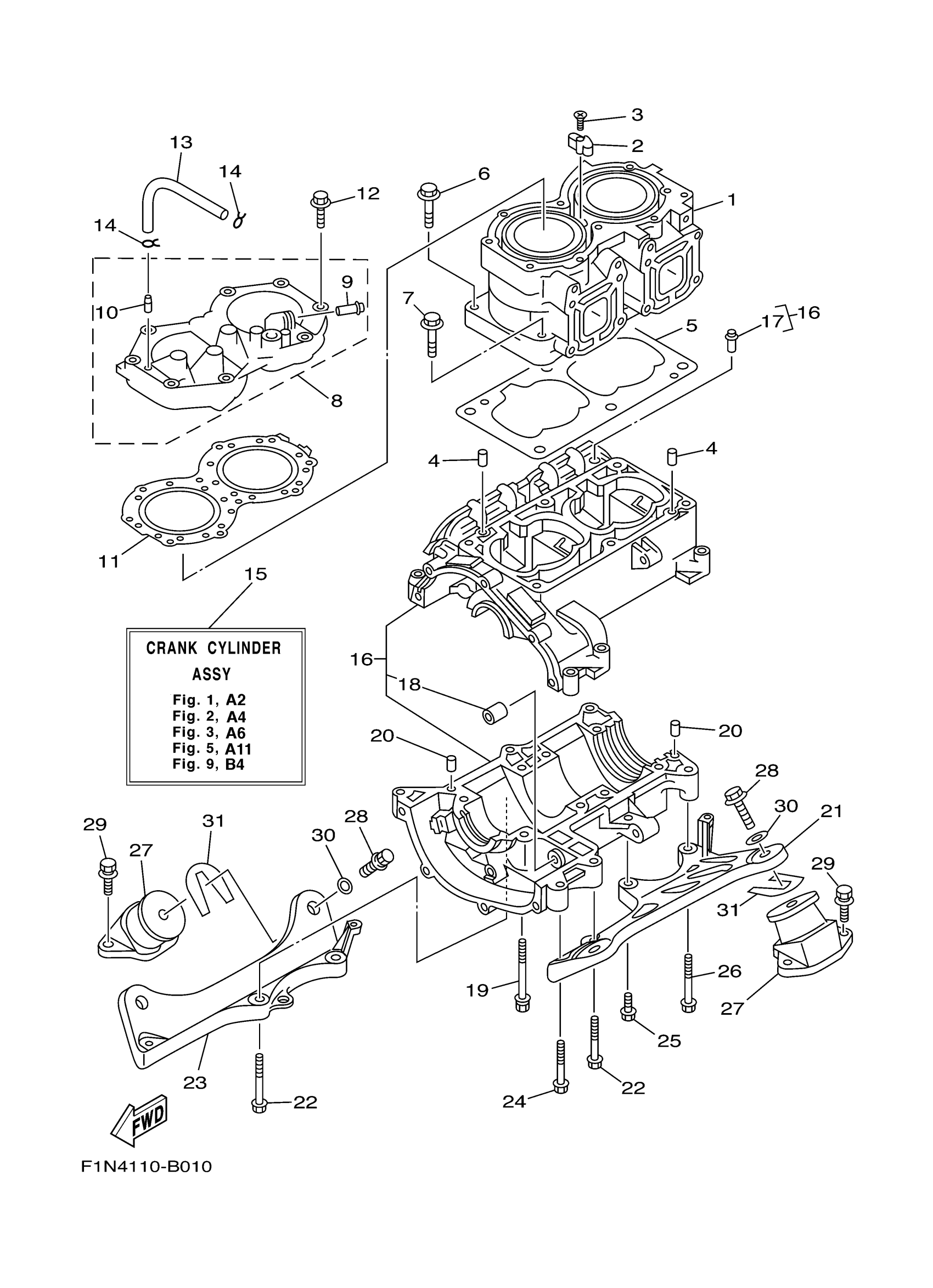

Yamaha SJ700BB (SUPER JET) F1N4 2003 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CYLINDER 1

61X-11311-01-8S

$767.15

2

ANODE

6E5-11325-00-00

$4.52

3

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

4

PIN, DOWEL (614)

93606-12019-00

$3.50

5

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

6

BOLT, WITH WASHER

90119-10M56-00

$10.04

7

BOLT (6F5)

90119-10M07-00

$4.21

8

HEAD, CYLINDER 1

64U-11111-00-8S

$349.24

9

. NIPPLE

6K8-51129-00-00

$9.87

10

. PIPE, JOINT

6R7-14485-00-00

$11.93

11

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$56.00

12

BOLT, WITH WASHER

90119-08M96-00

$3.03

13

HOSE (L200)

90445-07M19-00

$6.39

14

CLIP

90467-06016-00

$3.08

15

CRANK CYLINDER ASSY

64V-W0090-02-8S

$3,574.61

16

CRANKCASE ASSY

62T-15100-00-00

$792.52

17

NIPPLE

62T-14251-10-00

$4.31

18

. BUSH, SOLID

90380-12M29-00

Unavailable

19

BOLT, WITH WASHER

90119-08M55-00

$3.03

20

PIN, DOWEL (614)

93606-12019-00

$3.50

21

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$129.84

22

BOLT, WITH WASHER

90119-10M23-00

$10.04

23

BRACKET, REAR UPPER 1

6R7-21425-01-00

$137.30

24

BOLT, WITH WASHER

90119-10M01-00

$8.94

25

BOLT, WITH WASHER

90119-10M00-00

$8.56

26

BOLT, WITH WASHER

90119-10M03-00

$8.94

27

MOUNT RUBBER

6R7-44517-00-8S

$86.17

28

BOLT, WITH WASHER

90119-08904-00

$3.02

29

BOLT, WITH WASHER

90119-08038-00

$4.72

30

PLATE

EU0-67324-00-00

$10.99

31

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

31

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

31

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

31

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

31

SHIM (T=2.0)

EU0-67354-E0-00

$3.88
