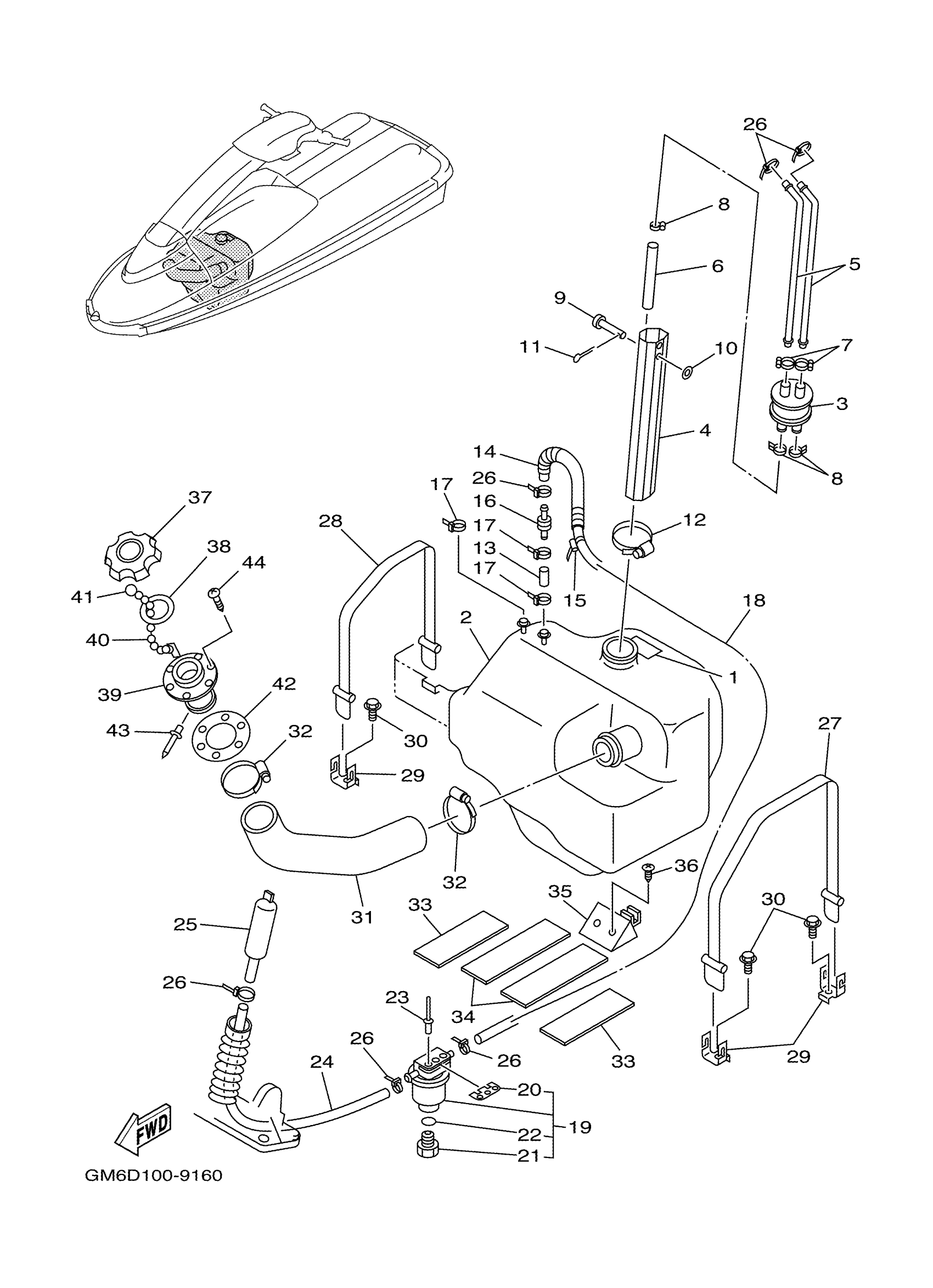

Yamaha SJ700BA (SUPER JET) F1N1 2002 FUEL TANK Diagram

#

Description
Price

1

LABEL,FUEL TANK

GM6-6418D-00-00

$16.99

2

TANK, FUEL

EW2-67711-01-00

$267.15

3

PIPE, JOINT

FJ0-67713-01-00

Unavailable

4

PIPE, FILLER

EW2-67716-02-00

$24.61

5

PIPE, SUCTION 3

EW2-67714-02-00

$16.99

6

HOSE (L198)

90445-11293-00

$6.69

7

BAND, HOSE 11

90601-11062-00

Unavailable

8

CLIP (7K7)

90467-11044-00

$4.89

9

PIN (FJ0)

91790-05040-00

$2.49

10

WASHER, PLAIN (646)

92990-05600-00

Unavailable

11

PIN. COTTER

91490-16010-00

$2.52

12

BAND, HOSE 62

90601-16274-00

$19.39

13

HOSE

90699-50100-00

$26.85

14

HOSE(6TC)

90446-14M51-00

$5.67

15

CLAMP (6E5)

90465-13M11-00

$5.34

16

CHECK VALVE

EU0-67767-31-00

$30.97

17

CLAMP

90465-10098-00

$2.24

18

HOSE (L1200)

90699-50120-00

Unavailable

19

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

20

. PLATE, FILTER

EW2-62142-00-00

$44.76

21

. PLUG, DRAIN

70R-24543-00-00

$8.94

22

. O-RING

70R-24489-00-00

$4.93

23

RIVET, BLIND

90267-48802-00

$1.98

24

HOSE (L450)

90699-50045-00

Unavailable

25

AIR, VENT ASSY

EW2-62150-00-00

$20.88

26

CLAMP

90465-10098-00

$2.24

27

BAND, FUEL TANK

EW2-67821-30-00

$29.25

28

BAND, FUEL TANK

EW2-67821-00-00

$29.25

29

HOOK A

EW2-65772-00-00

$7.59

30

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

31

HOSE

GM6-67844-11-00

$114.91

32

BAND, HOSE 55

90601-15573-00

$12.67

33

MAT

GM6-67593-00-00

$23.87

34

MAT

GM6-67594-00-00

Unavailable

35

DAMPER, FUEL TANK

EW2-67822-01-00

$61.18

36

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.66

37

CAP, FUEL FILLER (YAMAHA BLACK)

FN8-67831-01-00

$50.73

38

PACKING 1

EU0-67832-00-00

$7.59

39

SOCKET

FN8-67833-00-00

Unavailable

40

. CHAIN BALL

EU0-67835-00-00

$5.31

41

COUPLING

EU0-67839-00-00

$6.27

42

PACKING, FUEL FILLER

EU0-67834-00-00

$25.36

43

. RIVET, BLIND

90267-40935-00

$1.29

44

SCREW, FLAT HEAD

EU0-67869-00-00

$3.58
