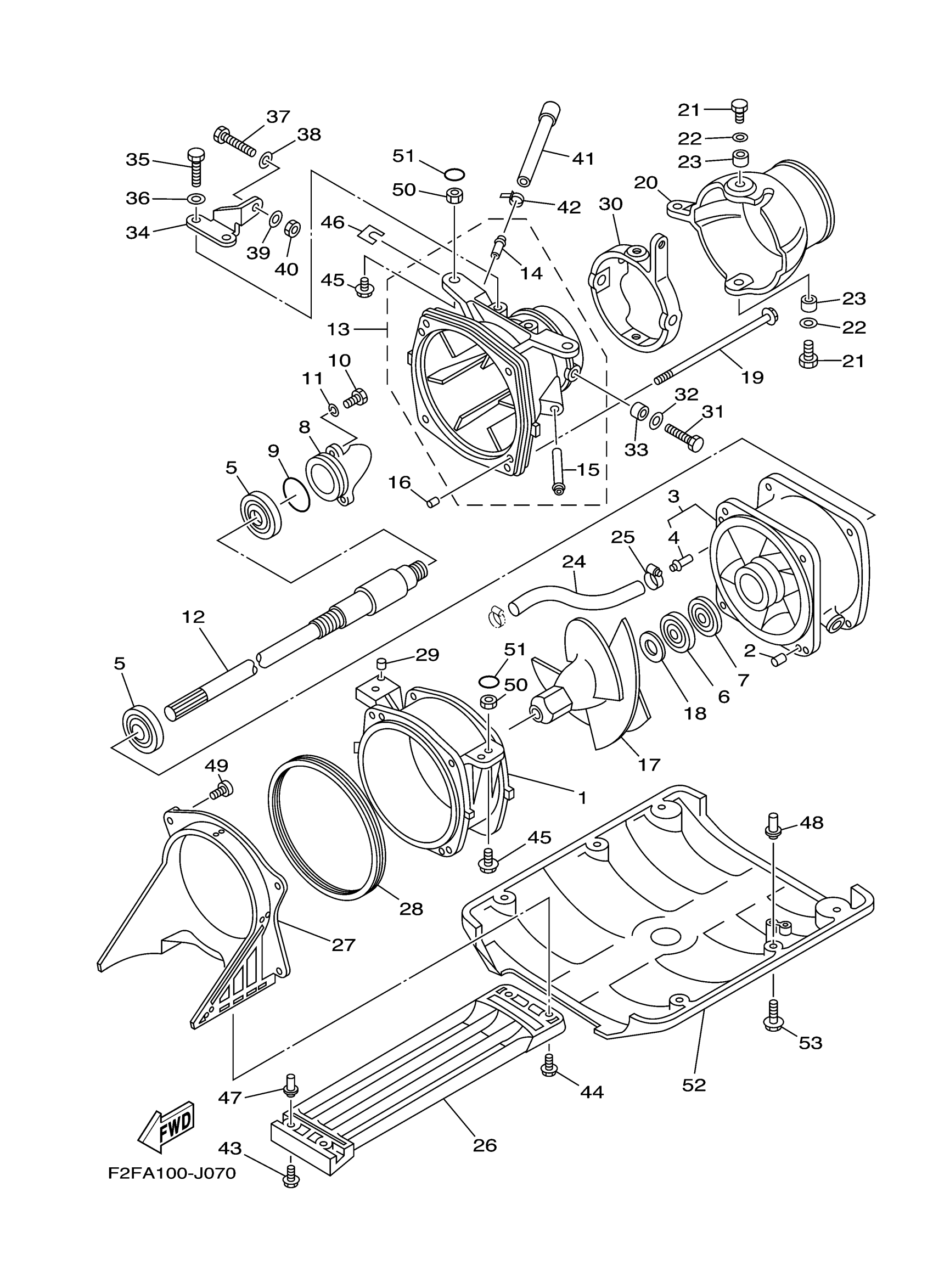

Yamaha SJ700B-U (SUPER JET) F4DJ 2019 JET UNIT 1 Diagram

#

Description
Price

1

HOUSING, IMPELLER

6R7-51312-03-00

$255.38

2

PIN, DOWEL (614)

93606-12019-00

$3.50

3

DUCT, IMPELLER

62T-51315-01-00

Unavailable

4

. NIPPLE

6K8-51129-00-00

$9.87

5

BEARING (6K8)

93306-205U1-00

$19.73

6

OIL SEAL(6R7)

93102-25M34-00

$13.85

7

OIL SEAL(6R7)

93101-25M50-00

$20.80

8

CAP

62T-51326-10-00

$45.93

9

. O-RING

93210-44003-00

$2.65

10

BOLT(7U8)

97080-06020-00

$3.71

11

WASHER, PLAIN (646)

92990-06600-00

$2.38

12

SHAFT, DRIVE

6BA-45511-00-00

$386.75

13

NOZZLE

64R-51318-01-00

$208.81

14

. NIPPLE

6K8-51129-00-00

$9.87

15

. NIPPLE

62T-51129-00-00

$18.37

16

PIN, DOWEL (614)

93606-12019-00

$3.50

17

IMPELLER

6BA-51321-00-00

$732.34

18

SPACER

62T-51348-00-00

$46.16

19

BOLT, WITH WASHER

90119-06M70-00

$7.59

20

NOZZLE, DEFLECTOR

6BA-51313-00-00

$82.07

21

BOLT, HEXAGON

97095-08020-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

$2.26

23

COLLAR(6R7)

90387-08M06-00

Unavailable

24

HOSE

90445-14M11-00

Unavailable

25

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

26

SCREEN, INTAKE

6R7-51333-00-00

$92.63

27

DUCT, INTAKE

6R7-51311-00-00

$119.10

28

. PACKING

6R7-51117-01-00

$30.39

29

PIN, DOWEL(6R7)

93606-07M17-00

Unavailable

30

RING,TRIM

62T-51190-01-00

$61.75

31

BOLT, HEXAGON

97095-08018-00

$3.09

32

.. WASHER, PLATE

92990-08600-00

$2.26

33

COLLAR

90387-08M08-00

Unavailable

34

STAY

6BA-51387-00-00

$24.99

35

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.29

36

WASHER, PLAIN (646)

92990-06600-00

$2.38

37

BOLT(7U8)

97080-06020-00

$3.71

38

WASHER, PLAIN (646)

92990-06600-00

$2.38

39

WASHER, PLATE

90201-06M31-00

$2.80

40

NUT(650)

95380-06700-00

Unavailable

41

PIPE 1

6BA-51673-00-00

$12.49

42

CLAMP

90465-10098-00

$2.24

43

BOLT, WITH WASHER

90119-06896-00

$5.23

44

BOLT, WITH WASHER

90119-06908-00

$2.65

45

BOLT, WITH WASHER

90119-10948-00

$6.07

46

SHIM (T=0.5)

EW2-67354-C0-00

$2.21

46

SHIM (T=1.0)

EW2-67354-D0-00

$2.21

47

NUT(FJ0)

90179-06947-00

Unavailable

48

NUT

90179-08962-00

$19.10

49

SCREW, TAPPING

97780-60520-00

$3.97

50

NUT

90179-10925-00

$4.85

51

SEAL

EW2-62723-30-00

$7.06

52

PLATE 2

F2F-6273B-01-00

$199.99

53

BOLT, WITH WASHER

90119-08943-00

$3.09
