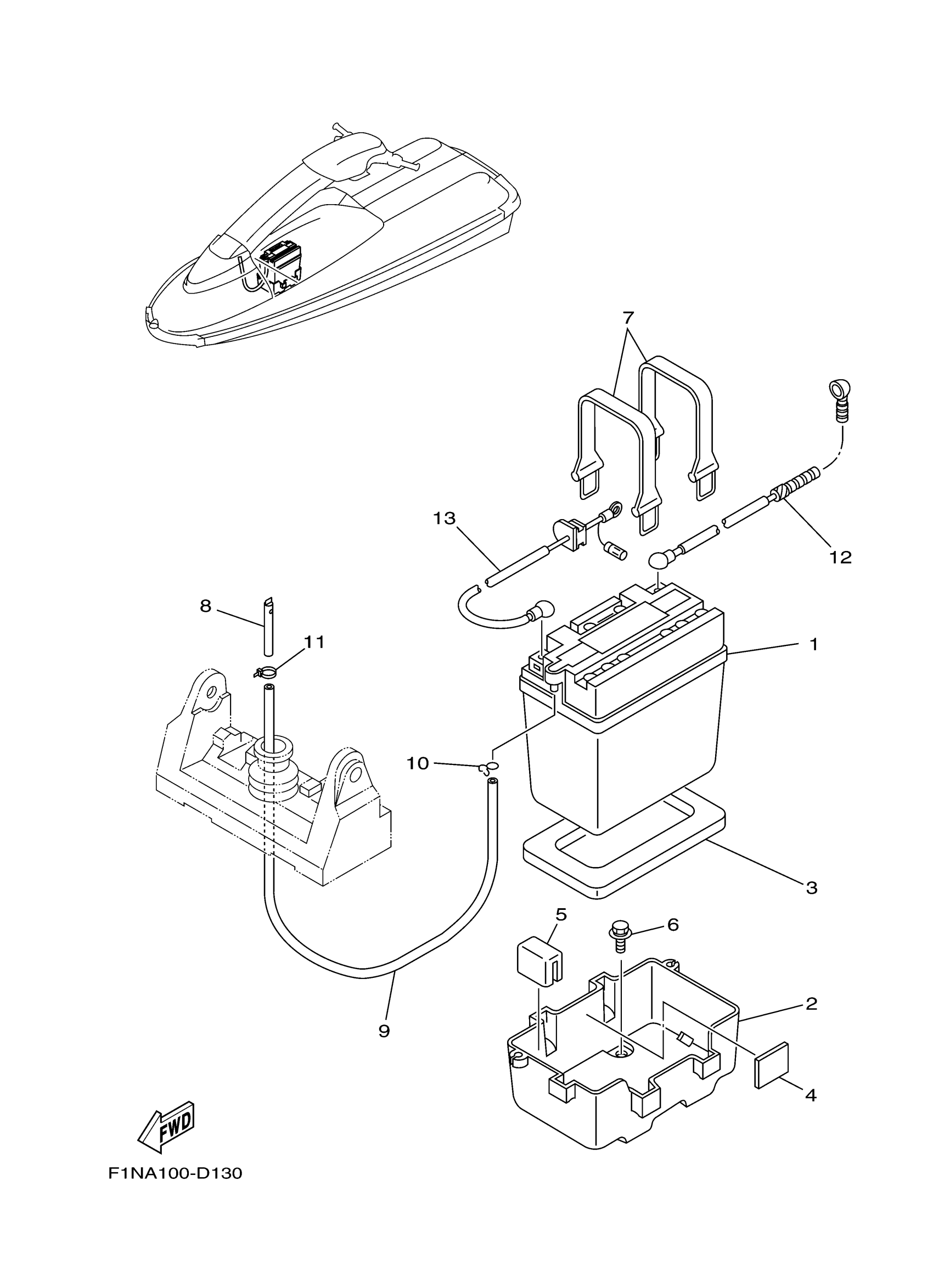

Yamaha SJ700B-U (SUPER JET) F4DJ 2019 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY

EU0-82110-08-00

Unavailable

2

CASE, BATTERY

EW2-68211-00-00

$38.22

3

PAD, BATTERY 1

EU0-68221-00-00

$30.87

4

PAD, BATTERY 2

EU0-68221-30-00

$45.57

5

PAD, BATTERY

EW2-68221-00-00

$13.96

6

BOLT WITH WASHER (EW2)

90119-06920-00

$4.55

7

BAND,BATTERY

EU0-68218-04-00

$38.89

8

PIPE, VENTILATION 1

EW2-62149-00-00

$7.06

9

HOSE

90699-50085-00

$24.25

10

CLIP

90467-08M10-00

Unavailable

11

CLAMP

90465-10098-00

$2.24

12

WIRE, LEAD

64V-82117-00-00

$68.69

13

WIRE, LEAD

6R7-82117-11-00

$61.55
