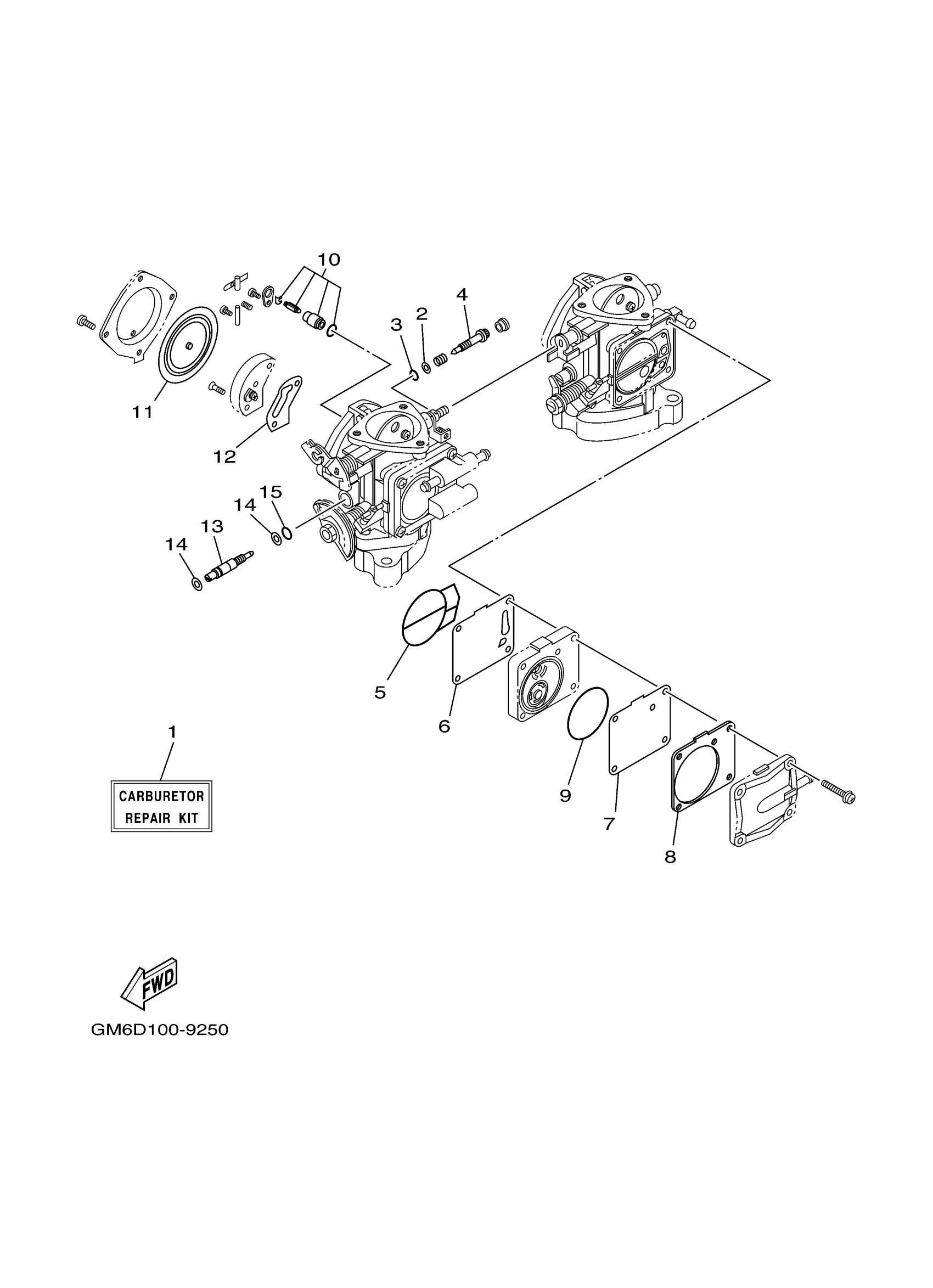

Yamaha SJ700AY (SUPER JET) GM6H 2000 REPAIR KIT 2 Diagram

#

Description
Price

1

CARBURETOR REPAIR KIT

64U-W0093-02-00

$338.22

2

WASHER,NEEDLE

812-14235-00-00

$2.44

3

. O-RING

6K8-14562-00-00

$1.78

4

. PLATE, NEEDLE FITTING

63M-14946-00-00

$18.37

5

. O-RING

6K8-14564-00-00

$8.73

6

. DIAPHRAGM

6K8-24411-20-00

$38.22

7

. VALVE, CHECK

6K8-24421-10-00

$25.07

8

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$13.96

9

. O-RING

6K8-14563-00-00

$11.01

10

NEEDLE

61X-14916-16-00

$20.08

11

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

12

. GASKET

6K8-14536-11-00

$8.35

13

. SCREW, PILOT

64U-14923-00-00

$45.57

14

WASHER, NEEDLE

822-14235-00-00

$3.72

15

O-RING

583-14561-00-00

$4.55
