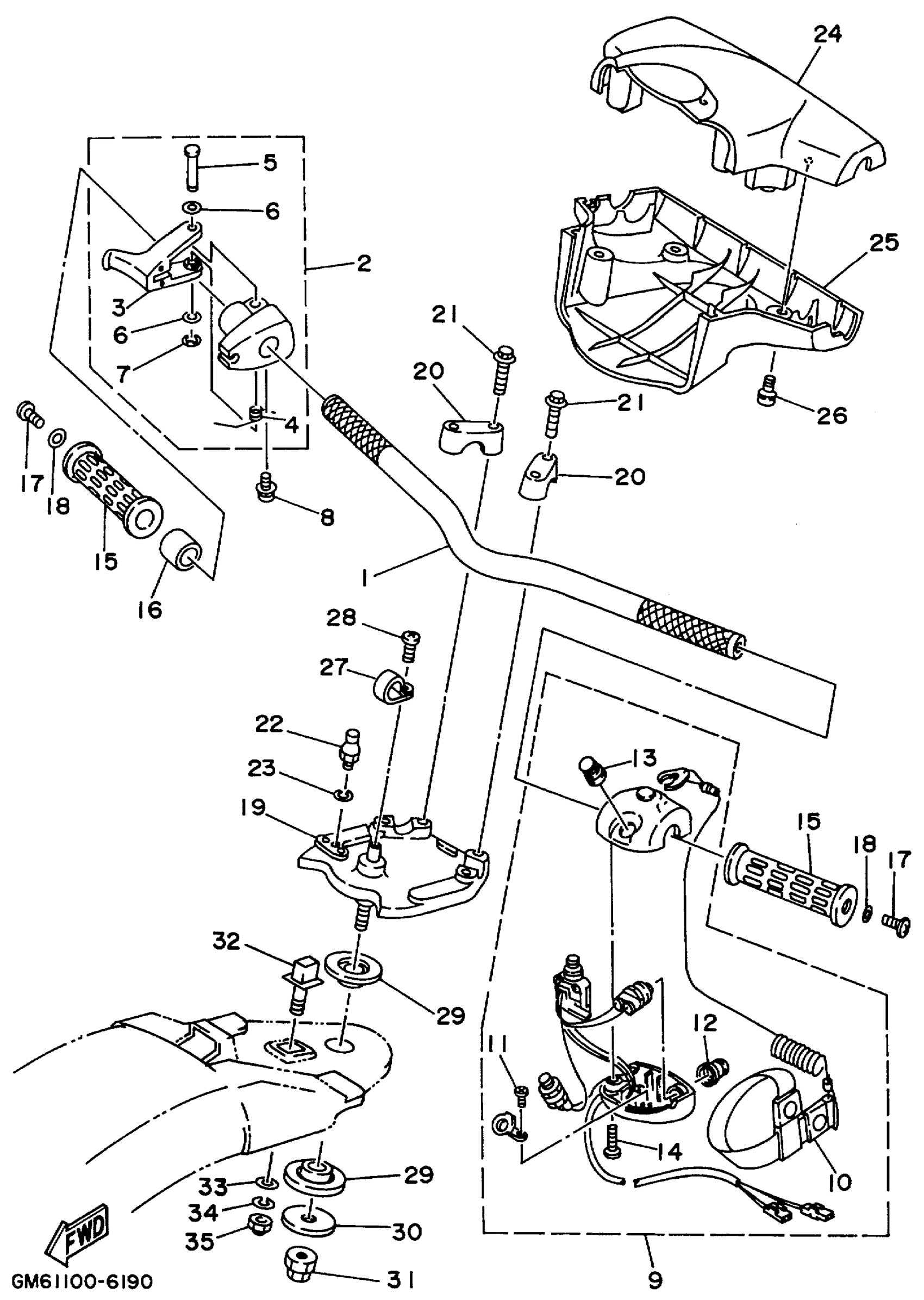

Yamaha SJ700AX (SUPER JET) GM6D 1999 STEERING 1 Diagram

#

Description
Price

1

HANDLE

FX1-61552-00-00

$160.59

2

THROTTLE LEVER ASSY

EW2-67250-02-00

$104.53

3

. LEVER, THROTTLE

EW2-67255-00-00

$21.48

4

. SPRING

EW2-67256-00-00

$6.36

5

. SHAFT

EW2-67257-01-00

$13.99

6

WASHER, PLAIN (646)

92990-05600-00

Unavailable

7

CIRCLIP (EU0)

99080-04600-00

$1.70

8

SCREW, WITH WASHER

90159-05900-00

$2.17

9

SWITCH BOX ASSY

EW2-68310-04-00

$210.59

10

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

11

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

12

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

13

. START BUTTON COMP

FK7-68313-02-00

$11.31

14

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

15

GRIP, HANDLE 1

EW2-61553-00-00

$14.81

16

SPACER(1LX)

90560-22281-00

Unavailable

17

SCREW,TRASS HEAD (FJ0)

90149-05959-00

Unavailable

18

WASHER, PLATE

90201-05800-00

$0.65

19

BRAKE, ASSY.

EW2-61540-11-00

Unavailable

20

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

21

BOLT, FLANGE (EW2)

90105-08902-00

Unavailable

22

STOOD, JOINT BALL

EU0-61461-01-00

Unavailable

23

WASHER, SPRING

92995-06100-00

$2.95

24

PAD, STEERING 1

FX1-6143D-20-00

$83.32

25

PAD, STEERING 2

FX1-6143E-20-00

$92.41

26

SCREW

90149-05937-00

$1.09

27

CLIP, NYLON 17

90600-91728-00

$5.45

28

SCREW, BINDING (M01)

98980-04010-00

Unavailable

29

BEARING, COLUMN

EW2-61417-00-00

$10.74

30

WASHER, STEERING

EW2-61419-00-00

$9.08

31

NUT (EW2)

90179-12933-00

Unavailable

32

PIN, STOPPER 1

EW2-61314-00-00

Unavailable

33

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

34

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

35

NUT, CROWN(GM6)

90176-10915-00

Unavailable
