Description

Price

1

HOSE (L445)

90445-09M21-00

$26.99

2

CLAMP

90465-10098-00

Unavailable

3

PIN, DOWEL (614)

93606-12019-00

$4.24

4

COVER

61X-51381-00-00

Unavailable

5

COLLAR

90387-06M60-00

Unavailable

6

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

Unavailable

7

GROMMET(GD0)

90480-06M69-00

$63.99

8

SHAFT, COUPLER

6R7-51323-02-00

Unavailable

9

O-RING(6R7)

93210-17MA4-00

$7.49

10

HOUSING, BEARING

61X-G5332-00-00

Unavailable

11

NIPPLE, HOSE

61L-45378-00-00

Unavailable

12

OIL SEAL(62T)

93101-25M55-00

$30.99

13

OIL SEAL

93101-24001-00

$31.99

14

CIRCLIP

93430-47M04-00

Unavailable

15

BEARING(62G)

93306-205U6-00

Unavailable

16

BOLT, WITH WASHER

90119-08907-00

Unavailable

17

SHIM (T=0.5)

GD0-67249-A0-00

Unavailable

17

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

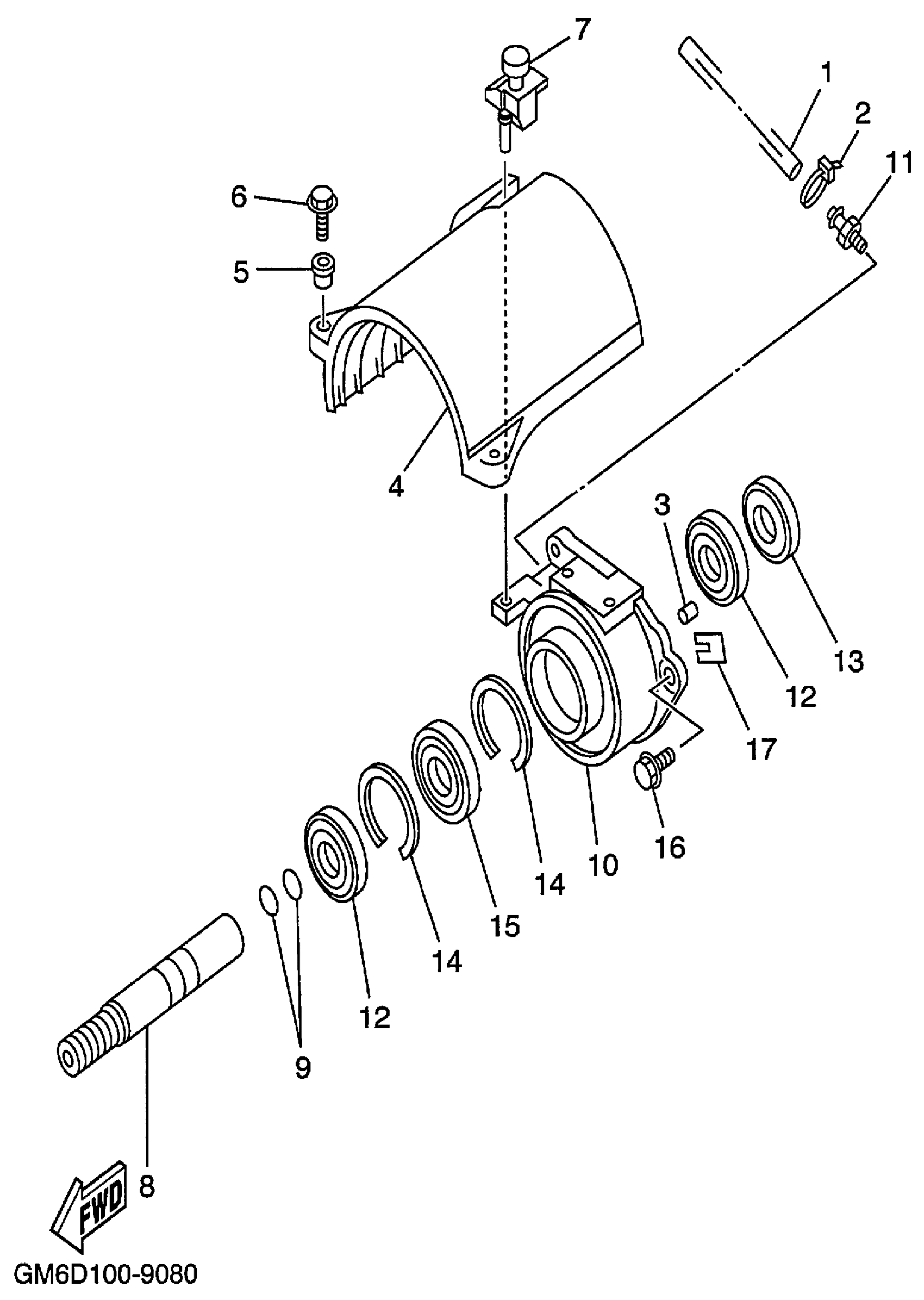

Yamaha SJ700AX (SUPER JET) GM6D 1999 JET UNIT 2 Diagram

HOSE (L445)

CLAMP

PIN, DOWEL (614)

COVER

COLLAR

BOLT, HEXAGON W/W DEEP RECESS

GROMMET(GD0)

SHAFT, COUPLER

O-RING(6R7)

HOUSING, BEARING

NIPPLE, HOSE

OIL SEAL(62T)

OIL SEAL

CIRCLIP

BEARING(62G)

BOLT, WITH WASHER

SHIM (T=0.5)

SHIM (T=1.0)
