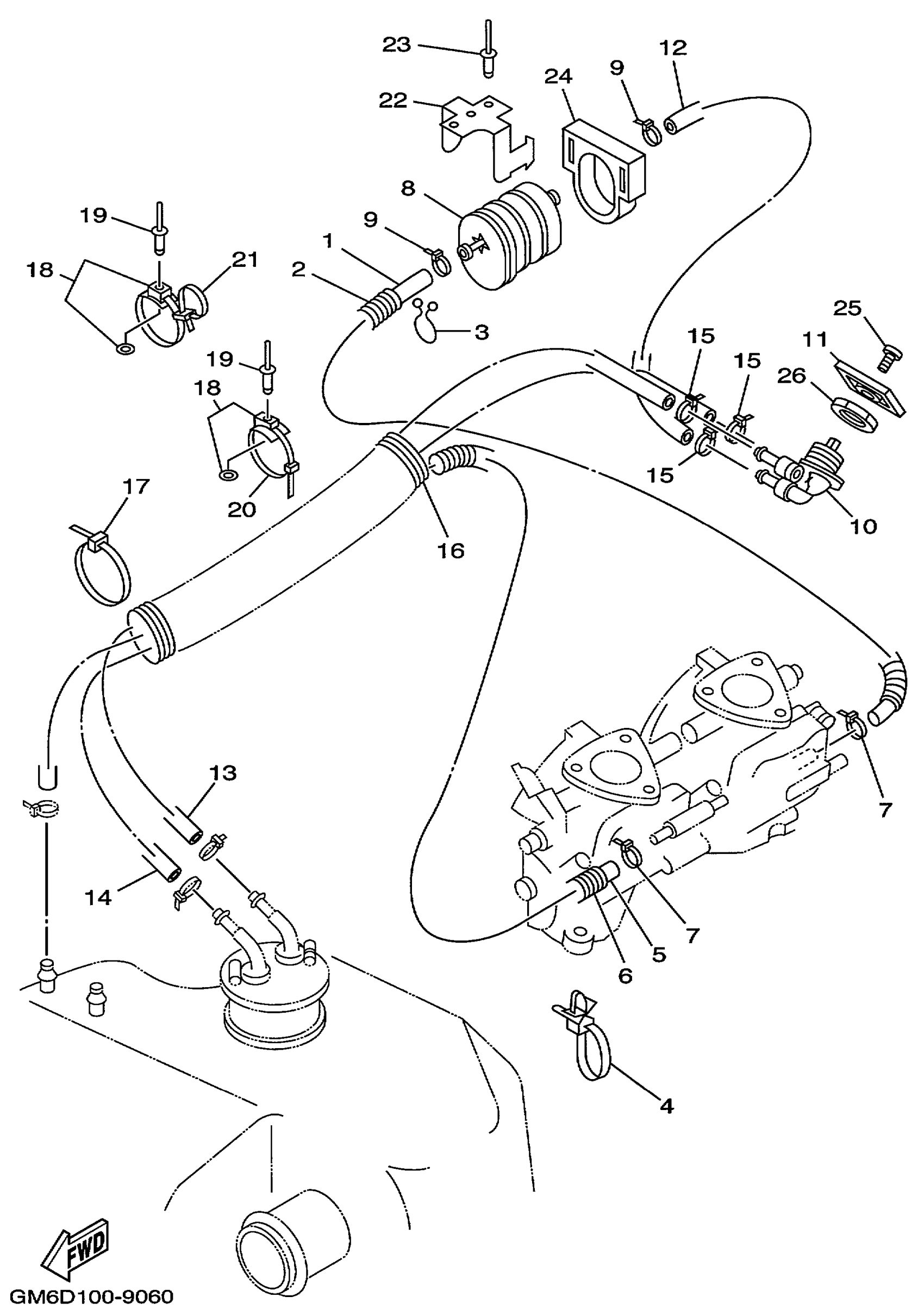

Yamaha SJ700AX (SUPER JET) GM6D 1999 FUEL Diagram

#

Description

Price

1

HOSE (L400)

90445-10M43-00

Unavailable

2

TUBE

EU0-67731-00-00

Unavailable

3

CLAMP

90465-18147-00

$7.49

4

CLAMP(62T)

90465-12M56-00

$8.49

5

HOSE (L1700)

90445-10M87-00

Unavailable

6

HOSE(64U)

90446-14M64-00

Unavailable

7

CLAMP

90465-10098-00

Unavailable

8

FILTER ASSY

6K8-24560-21-00

Unavailable

9

CLAMP

90465-10098-00

Unavailable

10

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

11

LEVER, COCK

6R7-24524-00-00

Unavailable

12

HOSE (L1040)

90445-10MA9-00

$68.99

13

HOSE (L1040)

90445-10MA9-00

$68.99

14

HOSE (L400)

90445-10M43-00

Unavailable

15

CLAMP

90465-10098-00

Unavailable

16

TUBE,2

GM6-6773E-00-00

Unavailable

17

BAND (EU0)

90601-20009-00

Unavailable

18

CLAMP COMP (EU0)

90600-91736-00

Unavailable

19

RIVET, BLIND

90267-48802-00

Unavailable

20

BAND (EU0)

90601-20009-00

Unavailable

21

NYLON CLIP 1(GD0)

90601-20016-00

Unavailable

22

BRACKET, FUEL FILTER

FN8-67816-00-00

Unavailable

23

RIVET, BLIND

90267-48802-00

Unavailable

24

HOLDER

EU0-67817-00-00

Unavailable

25

SCREW, BIND

98980-04008-00

Unavailable

26

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable
