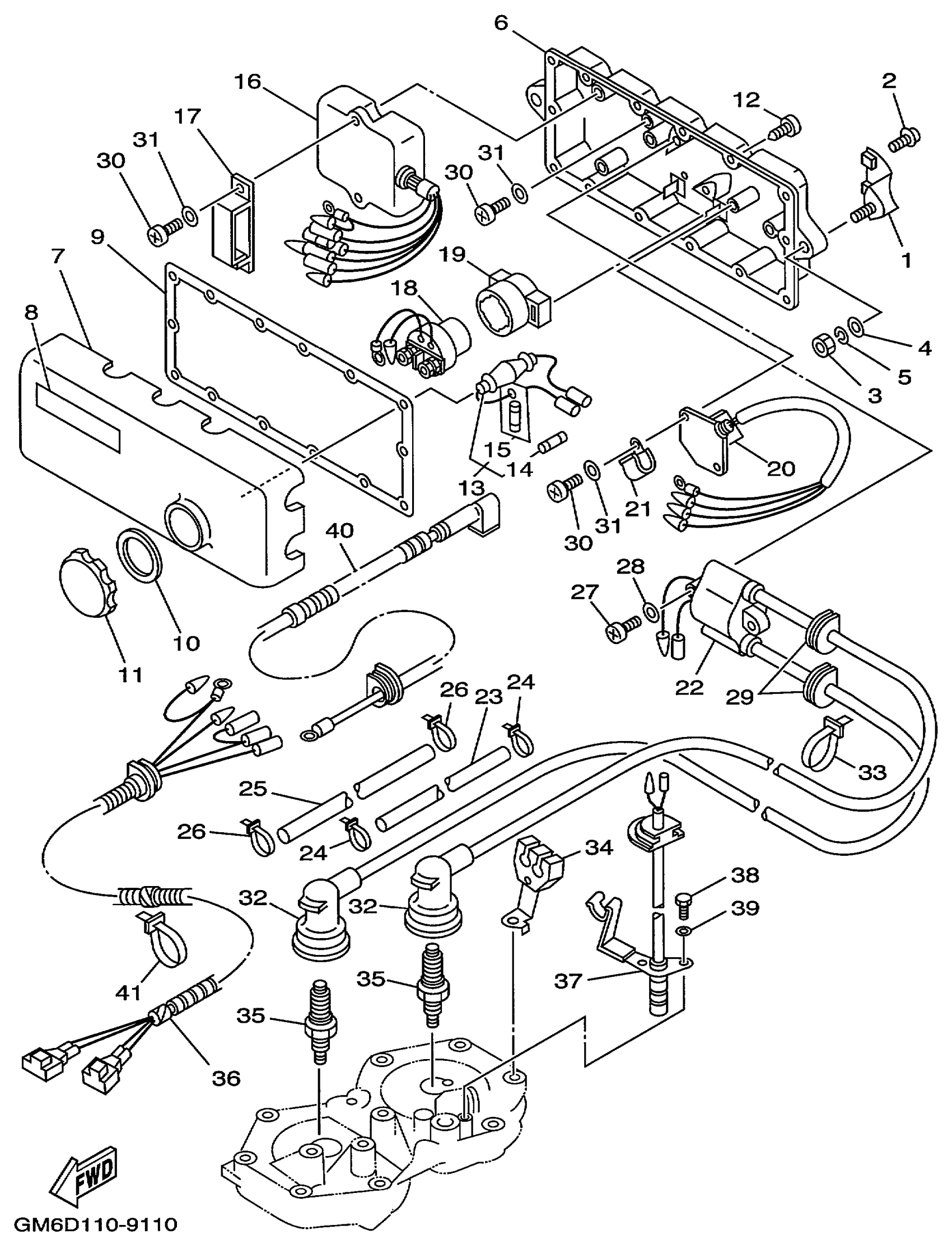

Yamaha SJ700AX (SUPER JET) GM6D 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

EW2-68156-00-00

Unavailable

2

BOLT, WITH WASHER

90119-06908-00

Unavailable

3

NUT (661)

95380-08600-00

$7.49

4

WASHER, PLAIN

92990-08200-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

HOUSING

6M6-8552A-01-8P

Unavailable

7

COVER, CASE

6M6-8552E-01-00

Unavailable

8

MARK 3

6R7-83623-40-00

Unavailable

9

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

10

GASKET

6M6-81844-00-00

Unavailable

11

CAP

6M6-8132W-00-00

Unavailable

12

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

13

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

14

FUSE (10A)

1E6-82151-00-00

$7.99

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

Unavailable

18

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

19

HOLDER, RELAY

6M6-81952-01-00

Unavailable

20

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

21

CLAMP

90465-08028-00

Unavailable

22

IGNITION COIL ASSY

62E-85570-00-00

Unavailable

23

TUBE, CORD

63M-82351-00-00

Unavailable

24

CLAMP

90465-10098-00

Unavailable

25

TUBE, CORD

63M-82351-00-00

Unavailable

26

CLAMP

90465-10098-00

Unavailable

27

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

GROMMET

90480-06M43-00

Unavailable

30

SCREW, PAN HEAD

98580-06016-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

33

CLAMP

90465-10098-00

Unavailable

34

CLAMP, CORD

6R7-82361-02-00

Unavailable

35

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

36

EXTENSION, WIRE LEAD

6R7-82553-01-00

Unavailable

37

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

WIRE, LEAD

62E-82117-20-00

Unavailable

41

CLAMP (6E5)

90465-13M11-00

Unavailable
