1999 Yamaha Super Jet (SJ700AX) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1999 Yamaha Super Jet (SJ700AX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

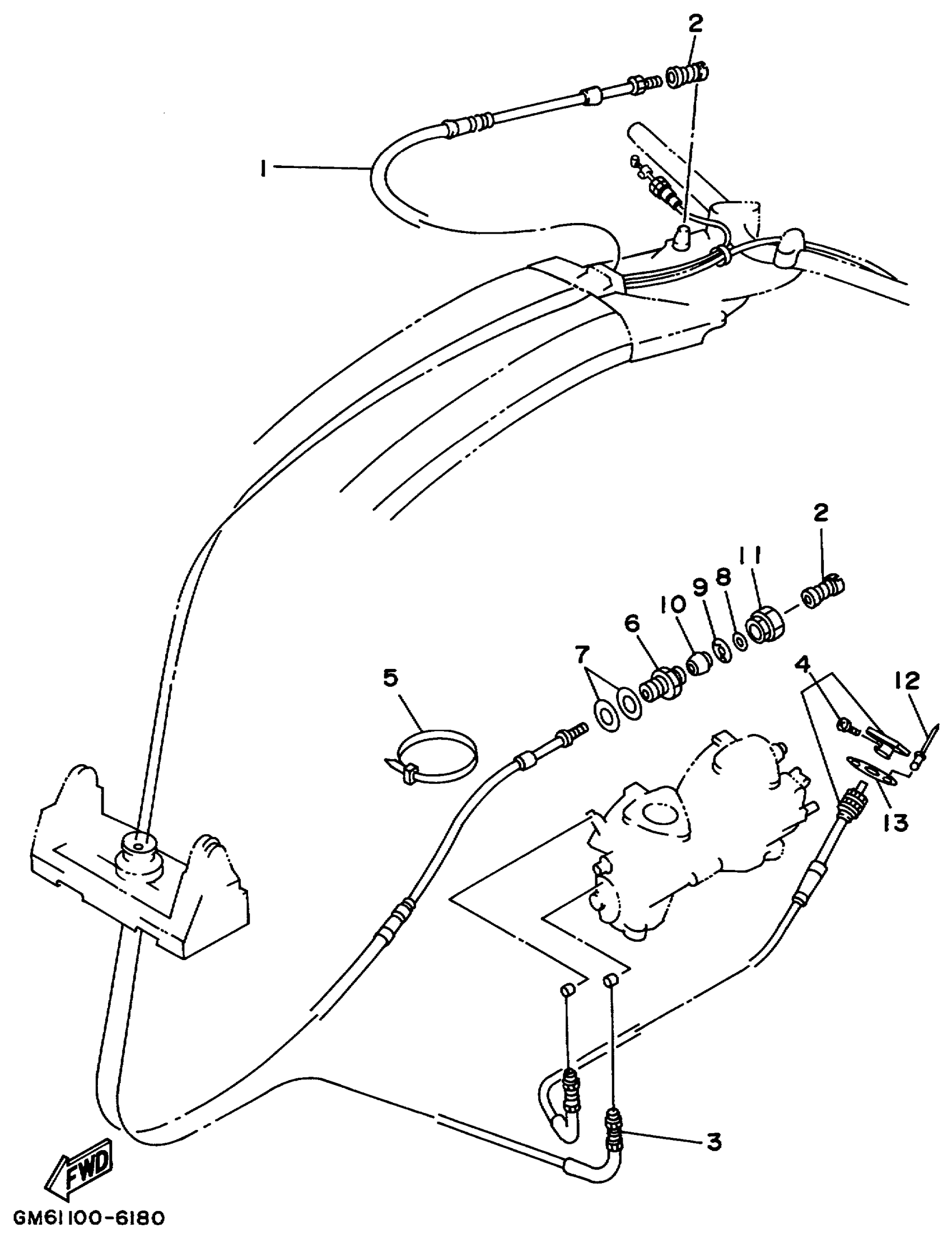

1999 Yamaha Super Jet (SJ700AX) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

GM6-61481-00-00

1
Out of stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1
Out of stock

3

CABLE, THROTTLE

GM6-67252-00-00

1
Out of stock

4

CABLE, CHOKE

GM6-67242-00-00

1
Out of stock

5

CLAMP (6E5)

90465-13M11-00

1
Out of stock

6

BODY,CABLE CONNECTOR

EU0-61436-00-00

1
Out of stock

7

. PACKING (C)

EU0-61438-00-00

1
Out of stock

8

. WASHER 30

EU0-61446-00-00

1
Out of stock

9

. STOPPER

EU0-61486-00-00

1
Out of stock

10

. SEAL, PIPE 30

EU0-61435-00-00

1
Out of stock

11

. CAP

EU0-62694-00-00

1
Out of stock

12

RIVET, BLIND(FX1)

90267-40945-00

—
Out of stock

13

WASHER(FX1)

90209-12920-00

—
Out of stock
