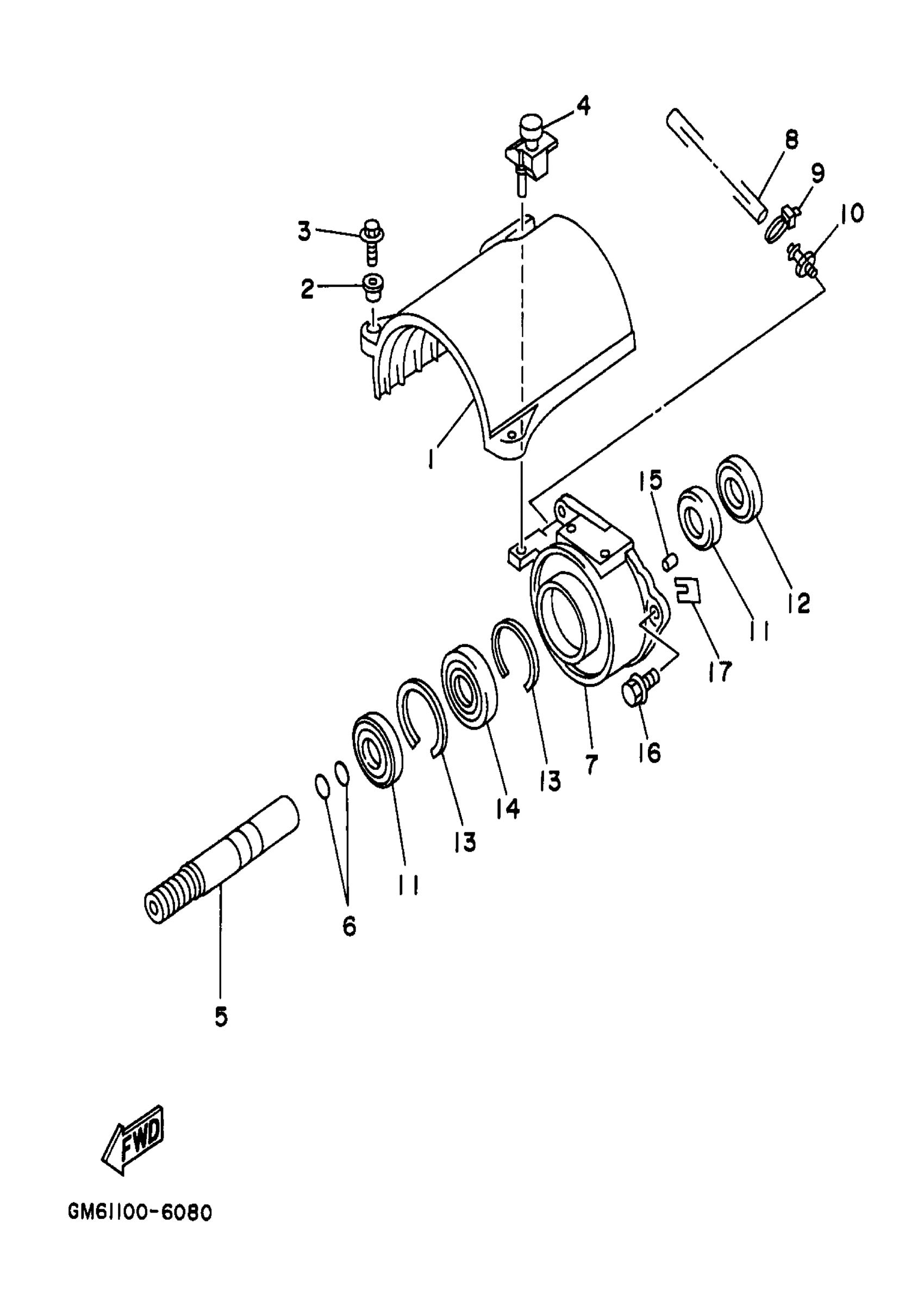

Yamaha SJ700AW (SUPER JET) GM69 1998 JET UNIT 2 Diagram

#

Description
Price

1

COVER

61X-51381-00-00

$22.65

2

COLLAR

90387-06M60-00

$6.83

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$0.90

4

GROMMET(GD0)

90480-06M69-00

$54.44

5

SHAFT, COUPLER

6R7-51323-02-00

$248.51

6

O-RING(6R7)

93210-17MA4-00

$4.65

7

HOUSING, BEARING

61X-G5332-00-00

$134.54

8

HOSE (L445)

90445-09M21-00

$20.98

9

CLAMP

90465-10098-00

$2.24

10

NIPPLE, HOSE

61L-45378-00-00

$8.73

11

OIL SEAL(62T)

93101-25M55-00

$24.36

12

OIL SEAL

93101-24001-00

$30.69

13

CIRCLIP

93430-47M04-00

$5.31

14

BEARING(62G)

93306-205U6-00

$47.87

15

PIN, DOWEL (614)

93606-12019-00

$3.50

16

BOLT, WITH WASHER

90119-08907-00

$5.12

17

SHIM (T=0.5)

GD0-67249-A0-00

$4.27

17

SHIM (T=1.0)

GD0-67249-00-10

Unavailable
