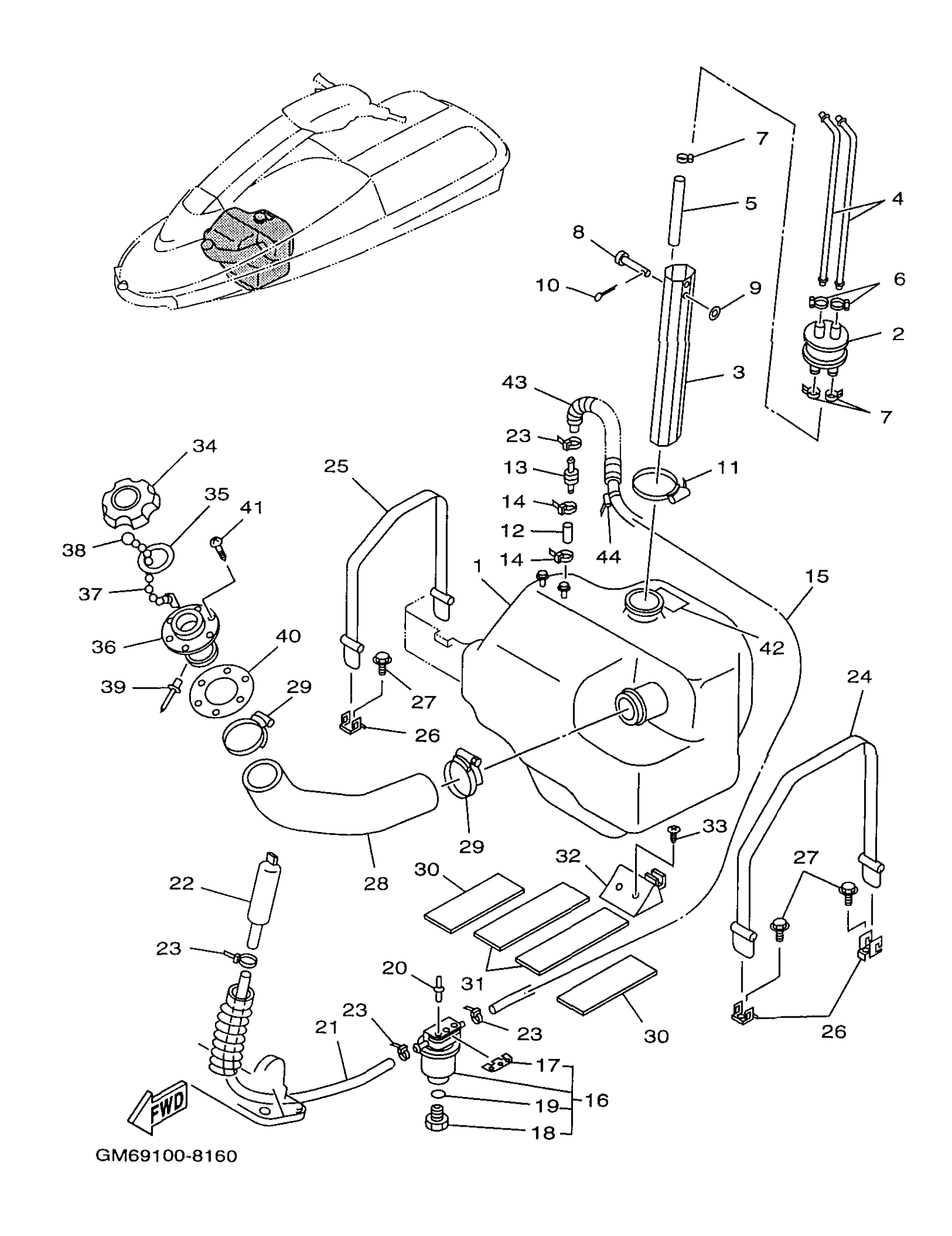

Yamaha SJ700AW (SUPER JET) GM69 1998 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

EW2-67711-01-00

$271.20

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

PIPE, FILLER

EW2-67716-02-00

$24.98

4

PIPE, SUCTION 3

EW2-67714-02-00

$16.99

5

HOSE (L198)

90445-11293-00

$6.69

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIN (FJ0)

91790-05040-00

$2.53

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

PIN. COTTER

91490-16010-00

$2.36

11

BAND, HOSE 62

90601-16274-00

$19.68

12

HOSE

90699-50100-00

$26.99

13

CHECK VALVE

EU0-67767-31-00

$20.93

14

CLAMP

90465-10098-00

$1.68

15

HOSE (L1200)

90699-50120-00

$19.12

16

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

17

. PLATE, FILTER

EW2-62142-00-00

$44.99

18

. PLUG, DRAIN

70R-24543-00-00

$9.08

19

. O-RING

70R-24489-00-00

$5.00

20

RIVET, BLIND

90267-48802-00

$1.98

21

HOSE (L450)

90699-50045-00

Unavailable

22

AIR, VENT ASSY

EW2-62150-00-00

$20.99

23

CLAMP

90465-10098-00

$1.68

24

BAND, FUEL TANK

EW2-67821-30-00

$28.73

25

BAND, FUEL TANK

EW2-67821-00-00

$38.49

26

HOOK A

EW2-65772-00-00

$7.40

27

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

28

HOSE

GM6-67844-11-00

$116.65

29

BAND, HOSE 55

90601-15573-00

$12.86

30

MAT

GM6-67593-00-00

$23.99

31

MAT

GM6-67594-00-00

Unavailable

32

DAMPER, FUEL TANK

EW2-67822-01-00

$62.11

33

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.57

34

CAP, FUEL FILLER (YAMAHA BLACK)

FN8-67831-01-00

$50.42

35

PACKING 1

EU0-67832-00-00

$7.40

36

SOCKET

FN8-67833-00-00

Unavailable

37

. CHAIN BALL

EU0-67835-00-00

$5.18

38

COUPLING

EU0-67839-00-00

$6.36

39

. RIVET, BLIND

90267-40935-00

$1.28

40

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

41

SCREW, FLAT HEAD

EU0-67869-00-00

$3.64

42

LABEL,FUEL TANK

GM6-6418D-00-00

$16.99

43

HOSE(6TC)

90446-14M51-00

Unavailable

44

CLAMP

90465-10098-00

$1.68
