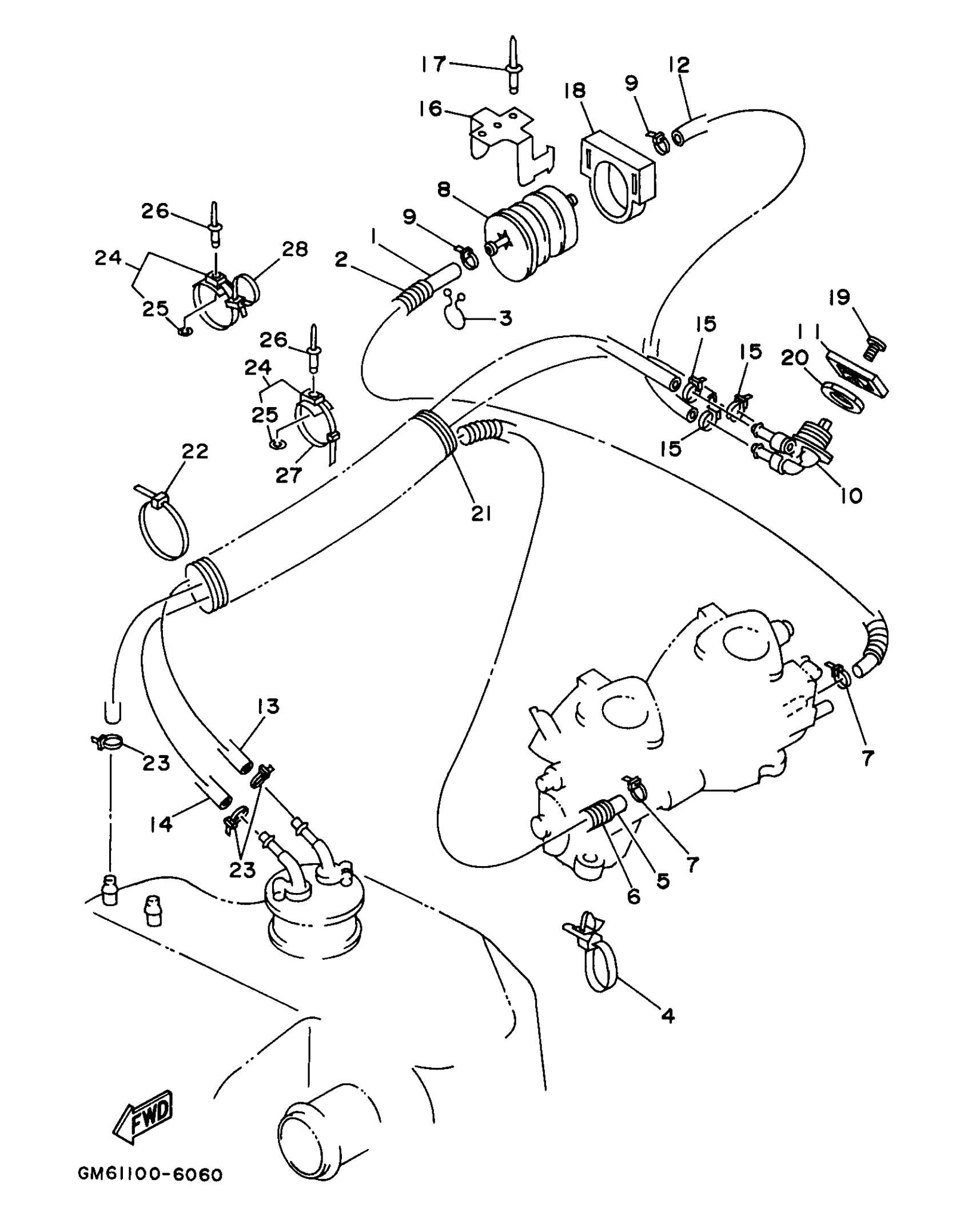

Yamaha SJ700AW (SUPER JET) GM69 1998 FUEL Diagram
#
Description
Price
1
HOSE (L400)
90445-10M43-00
Unavailable
2
TUBE
EU0-67731-00-00
Unavailable
3
CLAMP
90465-08028-00
Unavailable
4
CLAMP(62T)
90465-12M56-00
$8.49
5
HOSE (L1700)
90445-10M87-00
Unavailable
6
HOSE(64U)
90446-14M64-00
Unavailable
7
CLAMP
90465-10098-00
Unavailable
8
FILTER ASSY
6K8-24560-21-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
FUEL COCK ASSY 1
6K8-24500-03-00
Unavailable
11
LEVER, COCK
6R7-24524-00-00
Unavailable
12
HOSE (L1040)
90445-10MA9-00
$68.99
13
HOSE (L1040)
90445-10MA9-00
$68.99
14
HOSE (L400)
90445-10M43-00
Unavailable
15
CLAMP
90465-10098-00
Unavailable
16
BRACKET, FUEL FILTER
FN8-67816-00-00
Unavailable
17
RIVET, BLIND
90267-48802-00
Unavailable
18
HOLDER
EU0-67817-00-00
Unavailable
19
SCREW, BIND
98980-04008-00
Unavailable
20
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
21
TUBE,2
GM6-6773E-00-00
Unavailable
22
BAND (EU0)
90601-20009-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
CLAMP COMP (EU0)
90600-91736-00
Unavailable
25
. WASHER, PLAIN
90201-05925-00
Unavailable
26
RIVET, BLIND
90267-48802-00
Unavailable
27
BAND (EU0)
90601-20009-00
Unavailable
28
NYLON CLIP 1(GD0)
90601-20016-00
Unavailable
