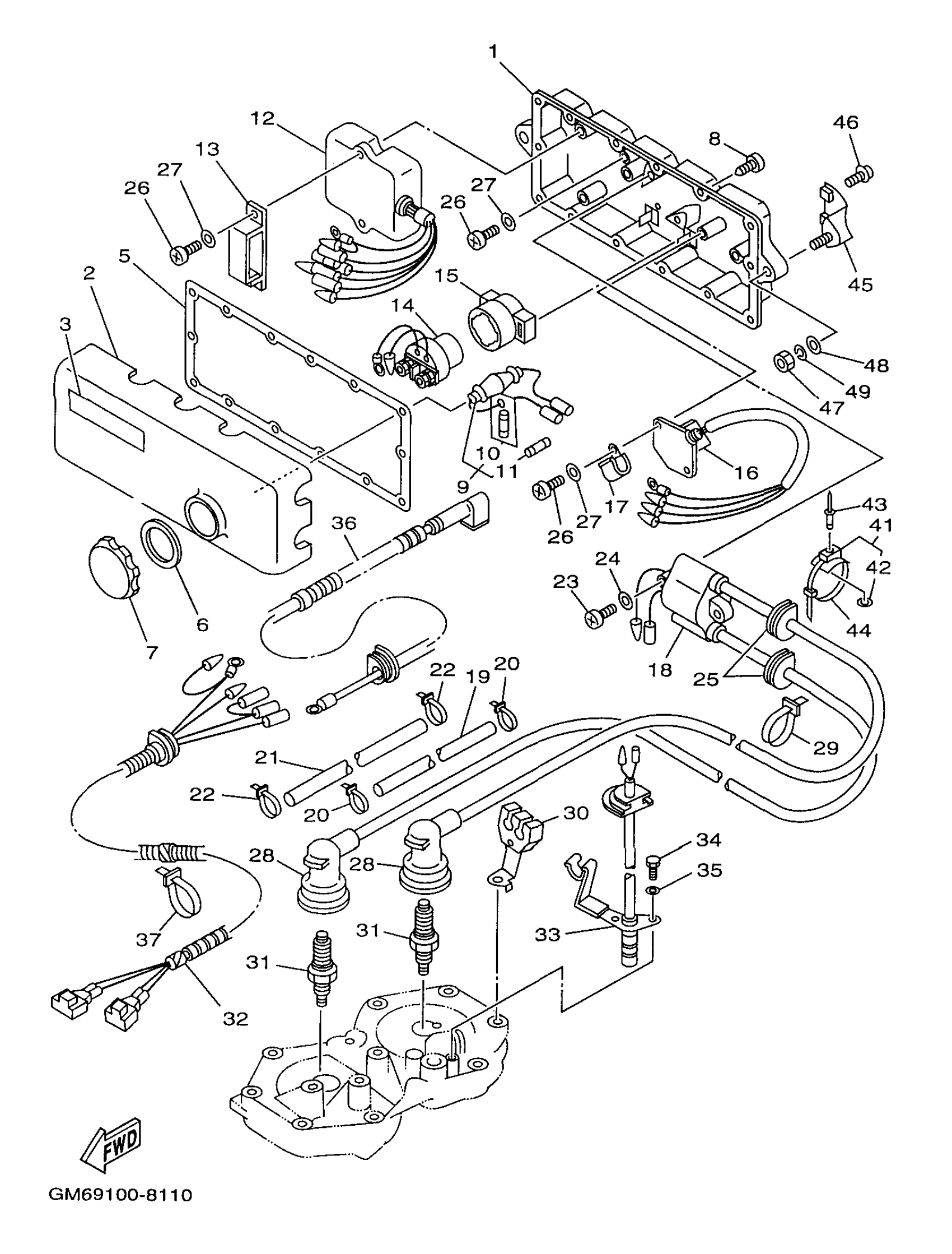

Yamaha SJ700AW (SUPER JET) GM69 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

6M6-8552A-01-8P

Unavailable

2

COVER, CASE

6M6-8552E-01-00

Unavailable

3

MARK 3

6R7-83623-40-00

Unavailable

5

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

6

GASKET

6M6-81844-00-00

Unavailable

7

CAP

6M6-8132W-00-00

Unavailable

8

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

9

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

10

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

11

FUSE (10A)

1E6-82151-00-00

$7.99

12

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

13

CLAMP

90464-06M29-00

Unavailable

14

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

15

HOLDER, RELAY

6M6-81952-01-00

Unavailable

16

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

17

CLAMP

90465-08028-00

Unavailable

18

IGNITION COIL ASSY

62E-85570-00-00

Unavailable

19

TUBE, CORD

63M-82351-00-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

TUBE, CORD

63M-82351-00-00

Unavailable

22

CLAMP

90465-10098-00

Unavailable

23

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

GROMMET

90480-06M43-00

Unavailable

26

SCREW, PAN HEAD

98580-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

29

CLAMP

90465-10098-00

Unavailable

30

CLAMP, CORD

6R7-82361-02-00

Unavailable

31

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

32

EXTENSION, WIRE LEAD

6R7-82553-01-00

Unavailable

33

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

34

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

WIRE, LEAD

62E-82117-20-00

Unavailable

37

CLAMP (6E5)

90465-13M11-00

Unavailable

41

CLAMP COMP (EU0)

90600-91736-00

Unavailable

42

. WASHER, PLAIN

90201-05925-00

Unavailable

43

RIVET, BLIND

90267-48802-00

Unavailable

44

BAND (EU0)

90601-20009-00

Unavailable

45

BRACKET, ELECTRIC BOX

EW2-68156-00-00

Unavailable

46

BOLT, WITH WASHER

90119-06908-00

Unavailable

47

NUT (661)

95380-08600-00

Unavailable

48

WASHER, PLAIN

92990-08200-00

Unavailable

49

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
