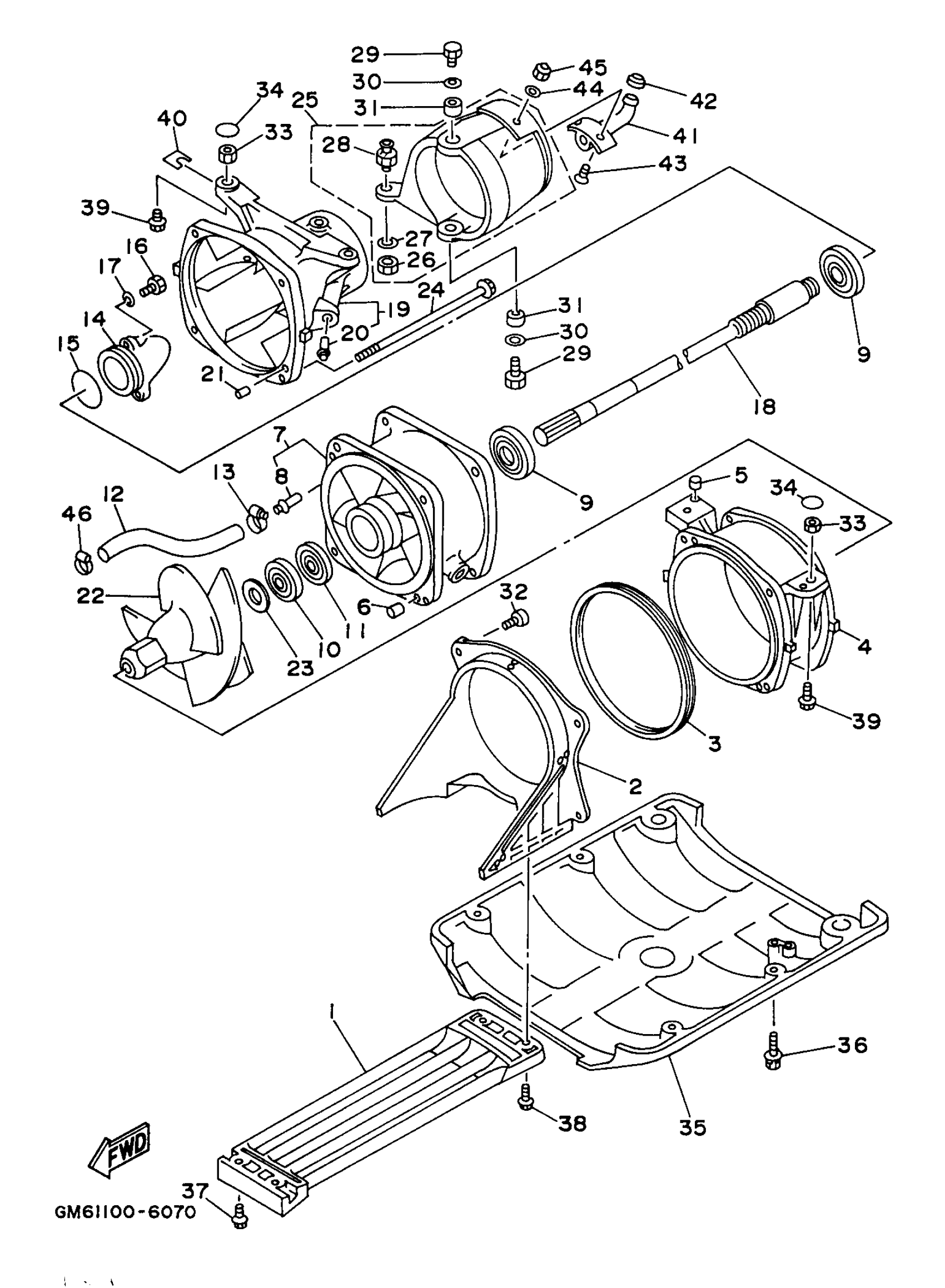

Yamaha SJ700AV (SUPER JET) GM65 1997 JET UNIT 1 Diagram
#
1
SCREEN, INTAKE
6R7-51333-00-00
Unavailable
2
DUCT, INTAKE
6R7-51311-00-00
Unavailable
3
. PACKING
6R7-51117-01-00
Unavailable
4
HOUSING, IMPELLER
6R7-51312-03-00
Unavailable
5
PIN, DOWEL(6R7)
93606-07M17-00
$9.49
6
PIN, DOWEL (614)
93606-12019-00
$4.24
7
DUCT, IMPELLER
62T-51315-01-00
Unavailable
8
. NIPPLE
6K8-51129-00-00
Unavailable
9
BEARING (6K8)
93306-205U1-00
$25.99
10
OIL SEAL(6R7)
93102-25M34-00
$16.99
11
OIL SEAL(6R7)
93101-25M50-00
Unavailable
12
HOSE
90445-14M11-00
Unavailable
13
HOSE CLAMP ASSY(62T)
90450-14M05-00
$17.99
14
CAP
62T-51326-00-00
Unavailable
15
. O-RING
93210-46M16-00
Unavailable
16
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
Unavailable
18
SHAFT, DRIVE
6R7-45511-01-00
Unavailable
19
NOZZLE
6R7-51318-05-94
Unavailable
20
. NIPPLE
6K8-51129-00-00
Unavailable
21
PIN, DOWEL (614)
93606-12019-00
$4.24
22
IMPELLER
6R7-51321-00-8S
Unavailable
23
SPACER
62T-51348-00-00
Unavailable
24
BOLT, WITH WASHER
90119-06M70-00
Unavailable
25
NOZZLE DEFLECOR
61L-51313-00-00
Unavailable
26
NUT(650)
95380-06700-00
Unavailable
27
WASHER, PLATE
90201-06M02-00
Unavailable
28
. BOLT, JOINT
6R7-42316-00-00
Unavailable
29
BOLT, HEXAGON
97095-08018-00
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
COLLAR(6R7)
90387-08M06-00
Unavailable
32
SCREW, TAPPING
97780-60520-00
Unavailable
33
NUT
90179-10925-00
Unavailable
34
SEAL
EW2-62723-30-00
Unavailable
35
PLATE 2
F2F-6273B-09-00
Unavailable
36
BOLT, WITH WASHER
90119-08943-00
Unavailable
37
BOLT, WITH WASHER
90119-06896-00
Unavailable
38
BOLT, WITH WASHER
90119-06908-00
Unavailable
39
BOLT, WITH WASHER
90119-10948-00
Unavailable
40
SHIM (T=0.1)
EW2-67354-00-01
Unavailable
40
SHIM (T=0.3)
EW2-67354-00-03
Unavailable
40
SHIM (T=0.5)
EW2-67354-00-05
Unavailable
40
SHIM (T=1.0)
EW2-67354-00-10
Unavailable
41
SPOUT
EU0-62693-02-00
Unavailable
42
CAP, SPOUT
6R8-62695-00-00
Unavailable
43
. SCREW, FLAT HEAD
98780-05016-00
Unavailable
44
. WASHER, PLAIN
92990-05200-00
Unavailable
45
NUT, FLANGE
95720-05300-00
Unavailable
46
BAND, HOSE 11
90601-11062-00
Unavailable
