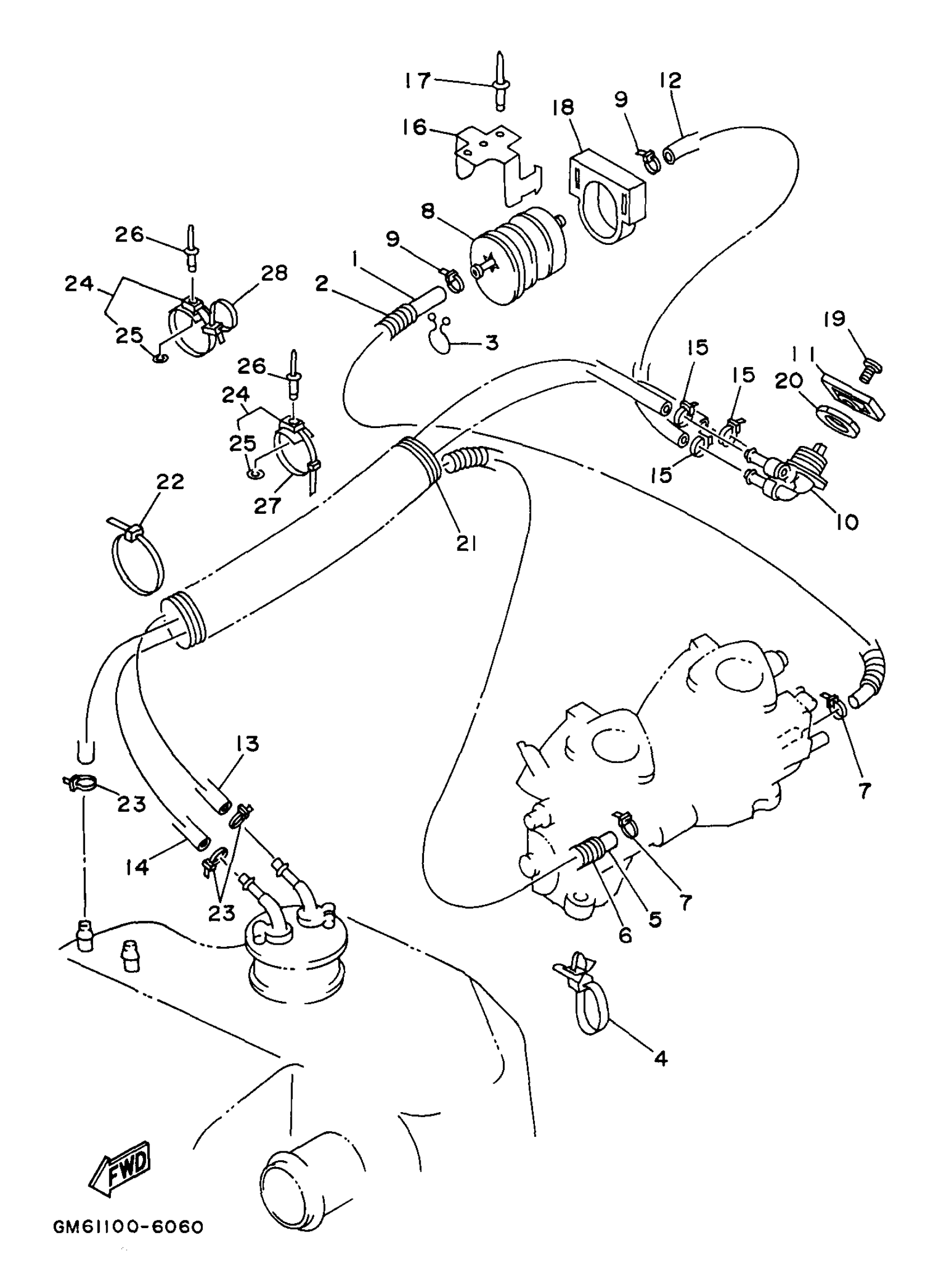

Yamaha SJ700AV (SUPER JET) GM65 1997 FUEL Diagram

#

Description
Price

1

HOSE (L400)

90445-10M43-00

$5.96

2

TUBE

EU0-67731-00-00

Unavailable

3

CLAMP

90465-08028-00

$4.31

4

CLAMP(62T)

90465-12M56-00

$6.64

5

HOSE (L1700)

90445-10M87-00

Unavailable

6

HOSE(64U)

90446-14M64-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

FILTER ASSY

6K8-24560-21-00

$28.64

9

CLAMP

90465-10098-00

$1.68

10

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

11

LEVER, COCK

6R7-24524-00-00

$7.03

12

HOSE (L1700)

90445-10M87-00

Unavailable

13

HOSE (L1700)

90445-10M87-00

Unavailable

14

HOSE (L400)

90445-10M43-00

$5.96

15

CLAMP

90465-10098-00

$1.68

16

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

17

RIVET, BLIND

90267-48802-00

$1.98

18

HOLDER

EU0-67817-00-00

$13.33

19

SCREW, BIND

98980-04008-00

$3.05

20

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

21

TUBE,2

GM6-6773E-00-00

$11.35

22

BAND (EU0)

90601-20009-00

$6.36

23

CLAMP

90465-10098-00

$1.68

24

CLAMP COMP (EU0)

90600-91736-00

Unavailable

25

. WASHER, PLAIN

90201-05925-00

Unavailable

26

RIVET, BLIND

90267-48802-00

$1.98

27

BAND (EU0)

90601-20009-00

$6.36

28

NYLON CLIP 1(GD0)

90601-20016-00

Unavailable
