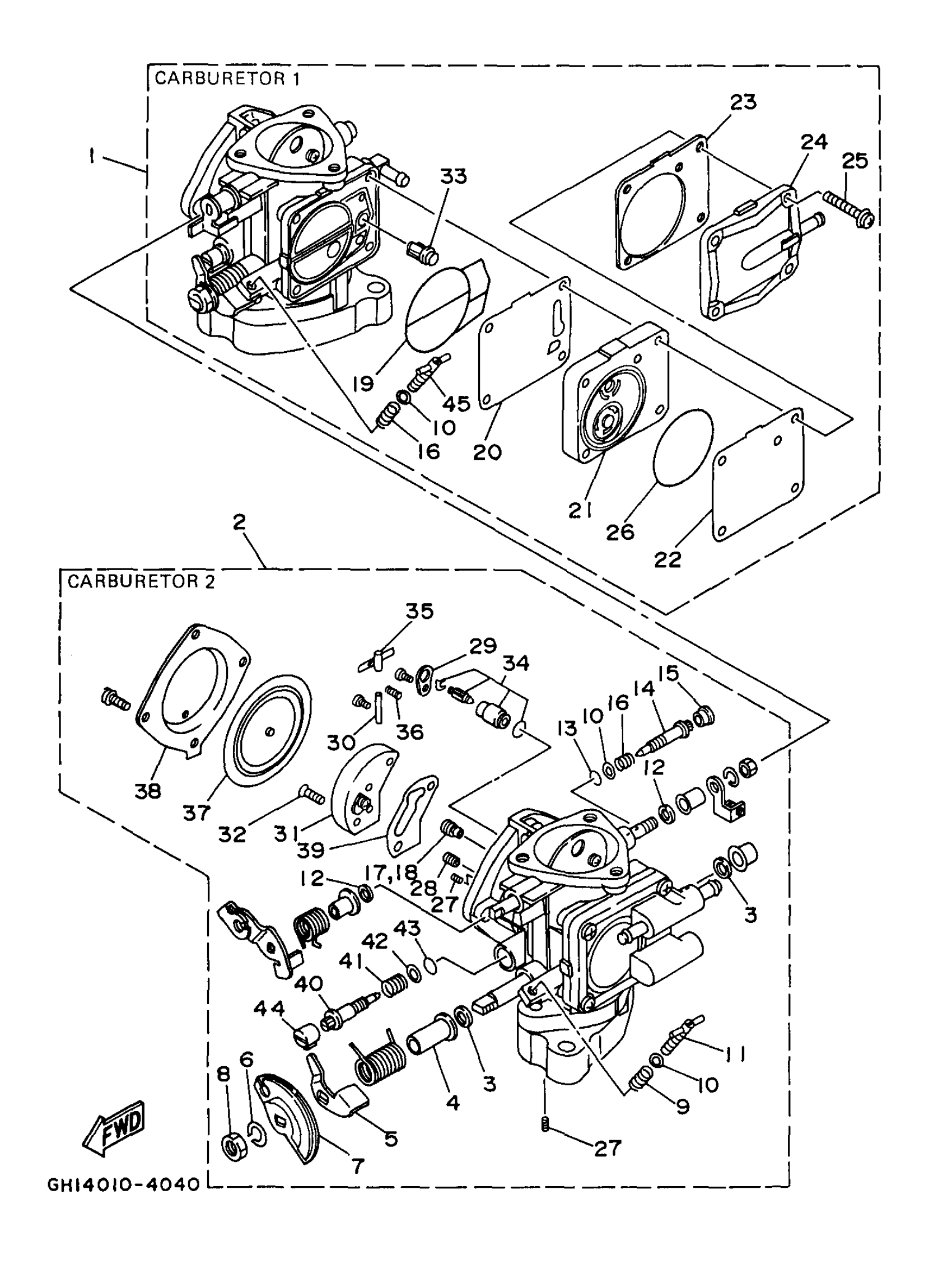

Yamaha SJ700AV (SUPER JET) GM65 1997 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

64U-14301-04-00

Unavailable

2

CARBURETOR ASSY 2

64U-14302-03-00

$557.56

3

. WASHER

6R7-14596-01-00

Unavailable

4

. COLLAR

6K8-14534-10-00

$19.68

5

. BRACKET, THROTTLE 1

6K8-14926-10-00

$19.68

6

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

7

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

Unavailable

8

. NUT

95380-08700-00

$3.05

9

. SPRING, ADJUST SCREW

6K8-14531-00-00

Unavailable

10

WASHER,NEEDLE

812-14235-00-00

$2.44

11

SCREW,ADJUST

6M6-14521-01-00

Unavailable

12

. WASHER

6K8-14597-11-00

Unavailable

13

. O-RING

6K8-14562-00-00

$1.88

14

. PLATE, NEEDLE FITTING

63M-14946-00-00

$18.49

15

. CAP, CARBURETOR

6K8-14471-10-00

$8.17

16

. SPRING, ADJUST SCREW

6K8-14533-00-00

Unavailable

17

JET, MAIN (#130)

3G2-14231-26-A0

Unavailable

18

JET, MAIN (#130)

3G2-14231-26-A0

Unavailable

19

. O-RING

6K8-14564-00-00

$8.51

20

. DIAPHRAGM

6K8-24411-20-00

$29.63

21

BODY 2

6M6-24413-02-00

$45.81

22

. VALVE, CHECK

6K8-24421-10-00

$24.44

23

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

24

. COVER

6K8-24452-10-00

Unavailable

25

SCREW, WITH WASHER(61B)

97985-05330-00

$2.80

26

. O-RING

6K8-14563-00-00

Unavailable

27

. SCREW

6K8-14521-10-00

$34.49

28

JET, MAIN (# 70)

830-14231-14-00

Unavailable

29

. PLATE

6K8-14527-11-00

$11.35

30

. PIN, FLOAT

6K8-14579-00-00

Unavailable

31

. BODY 1

6R7-24412-01-00

$23.36

32

SCREW, STOP

6K8-14523-12-00

Unavailable

33

. STRAINER

6R7-14569-00-00

$11.48

34

NEEDLE

61X-14916-16-00

$22.90

35

. ARM, FLOAT

6K8-14547-01-00

$8.26

36

. SPRING

6R7-14253-00-00

$2.49

37

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

38

. BODY, PUMP 1

6R7-14542-00-00

$56.05

39

. GASKET

6K8-14536-11-00

$8.14

40

. SCREW, PILOT

63M-14923-00-00

Unavailable

41

. SPRING

6K8-14589-00-00

$3.70

42

. WASHER

6K8-14537-00-00

$3.18

43

O-RING

583-14561-00-00

Unavailable

44

. CAP, CARBURETOR

6K8-14481-10-00

Unavailable

45

. SCREW, ADJUST

6K8-14521-00-00

$27.26
