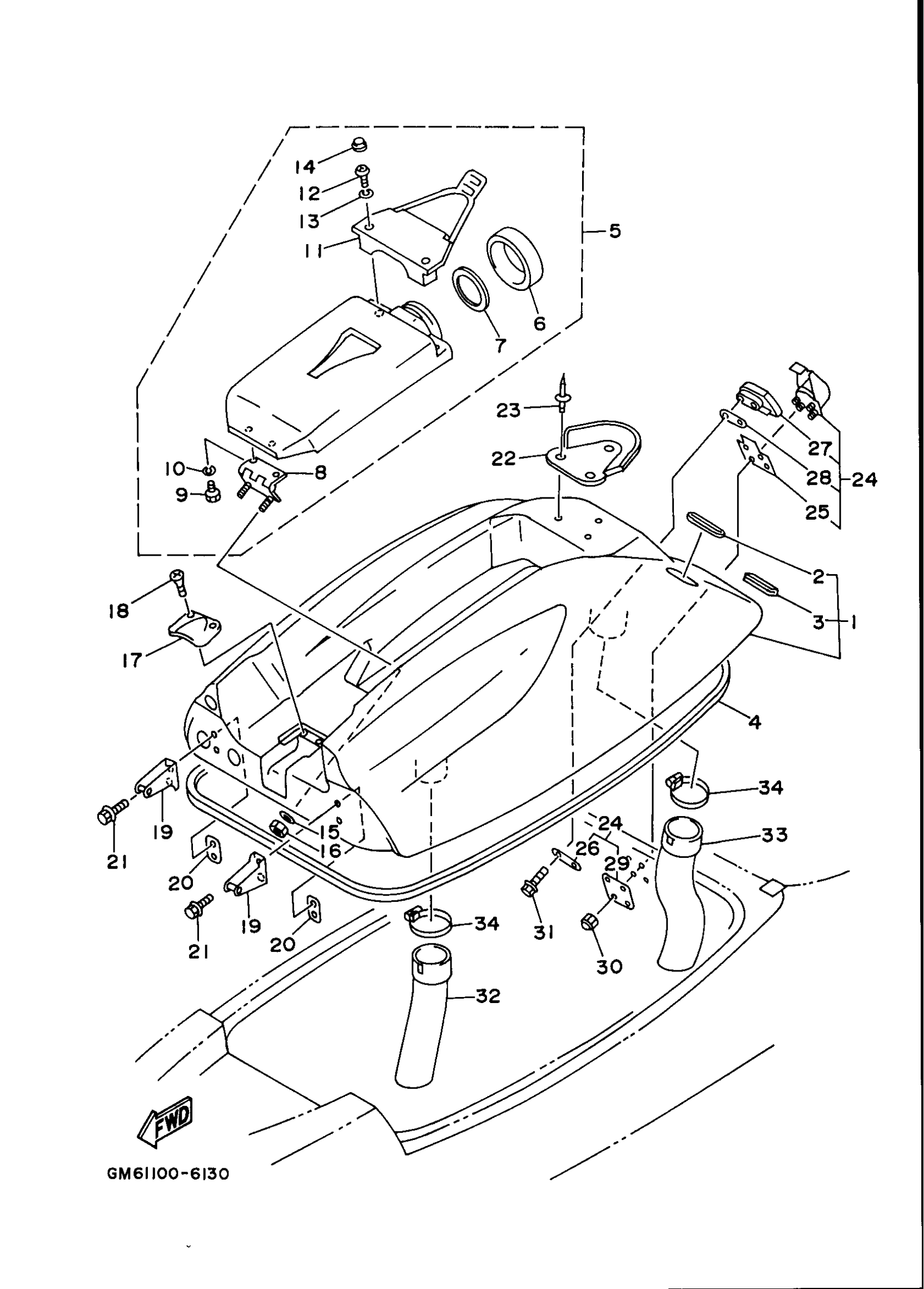

Yamaha SJ700AV (SUPER JET) GM65 1997 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GM6-6516A-01-P0

Unavailable

2

. TRIM, HATCH 2

FX1-65116-00-00

Unavailable

3

. TRIM 1

GM6-6516C-00-00

Unavailable

4

PACKING

GM6-62664-01-00

Unavailable

5

CASE ASSEMBLY 1

FX1-6591A-00-00

Unavailable

6

. CAP, CASE

EW2-65912-00-00

Unavailable

7

. PACKING, CASE

EW2-65913-00-00

Unavailable

8

HINGE, LID

FX1-6517D-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BAND,CASE

FX1-6591K-00-00

Unavailable

12

SCREW, PAN HEAD

98580-06016-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

CAP

FX1-6514F-00-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

NUT, SELF-LOCKING

95720-06300-00

Unavailable

17

PLATE, HATCH (FL1)

A00-62858-02-00

Unavailable

18

YBS81-516 SCREW,O.HEAD TAPPING

97780-50316-00

Unavailable

19

STOPPER HATCH 2

GM6-65136-00-00

Unavailable

20

PLATE, STOPPER HATCH 2

EW2-65137-00-00

Unavailable

21

BOLT, WITH WASHER

90119-06900-00

Unavailable

22

DAMPER, POLE

FX1-6514B-00-00

Unavailable

23

RIVET (EU0)

90267-48938-00

Unavailable

24

HATCH LOCK ASSY

EW2-62840-11-00

Unavailable

25

. PACKING, HATCH LOCK

EW2-62845-10-00

Unavailable

26

. PLATE, HATCH LOCK

EW2-62846-00-00

Unavailable

27

. HOOK, HATCH LOCK

EW2-62843-00-00

Unavailable

28

. PACKING, HOOK

EW2-62847-00-00

Unavailable

29

. PLATE, HOOK

EW2-62848-00-00

Unavailable

30

NUT, FLANGE

95720-05300-00

Unavailable

31

BOLT WITH WASHER (EW2)

90119-05923-00

Unavailable

32

HOSE,VENTILATOR 1

GM6-6213F-00-00

Unavailable

33

HOSE, VENTILATOR 2

EW2-62137-00-00

Unavailable

34

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

Unavailable
