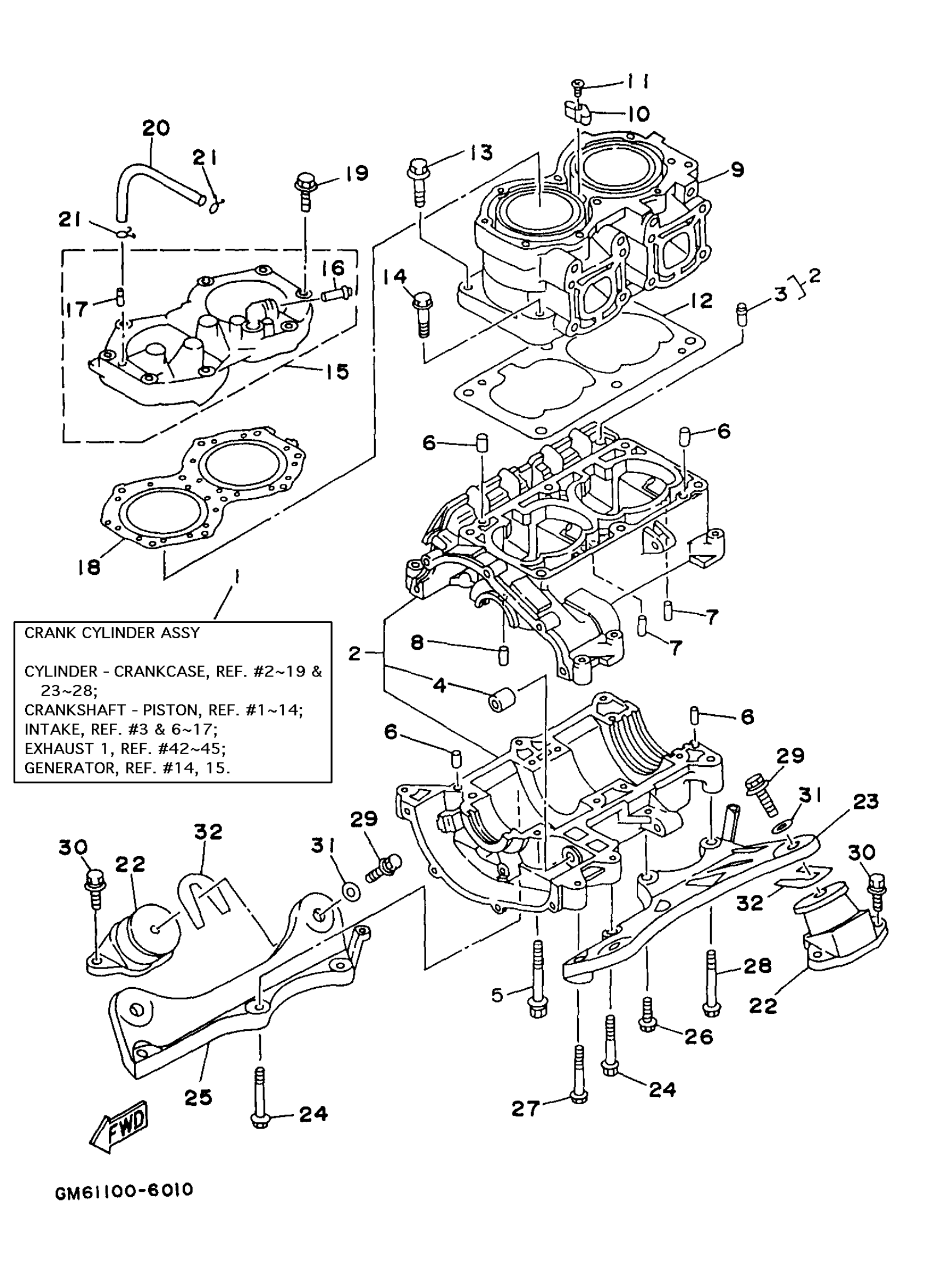

Yamaha SJ700AV (SUPER JET) GM65 1997 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

64V-W0090-02-8S

$3,628.77

2

CRANKCASE ASSY

62T-15100-00-00

$804.53

3

NIPPLE

62T-14251-10-00

$4.51

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$2.95

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

PIN (2H7)

93603-10049-00

Unavailable

8

PIN, DOWEL (8H1)

93604-07141-00

$1.29

9

CYLINDER 1

61X-11311-01-8S

$778.77

10

ANODE

6E5-11325-00-00

$4.08

11

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

12

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

13

BOLT, WITH WASHER

90119-10M56-00

$10.24

14

BOLT (6F5)

90119-10M07-00

$4.21

15

HEAD, CYLINDER 1

64U-11111-00-8S

$354.53

16

. NIPPLE

6K8-51129-00-00

$9.62

17

. PIPE, JOINT

6R7-14485-00-00

$11.99

18

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$59.08

19

BOLT, WITH WASHER

90119-08019-00

$4.79

20

HOSE (L200)

90445-07M19-00

Unavailable

21

CLIP

90467-06016-00

$2.93

22

MOUNT RUBBER

6R7-44517-00-8S

$90.89

23

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

24

BOLT, WITH WASHER

90119-10M23-00

$10.24

25

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

26

BOLT, WITH WASHER

90119-10M00-00

$8.56

27

BOLT, WITH WASHER

90119-10M01-00

$9.08

28

BOLT, WITH WASHER

90119-10M03-00

$9.08

29

BOLT, WITH WASHER

90119-08904-00

$3.18

30

BOLT, WITH WASHER

90119-08038-00

$4.99

31

PLATE

EU0-67324-00-00

$8.14

32

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

32

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

32

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

32

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

32

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
