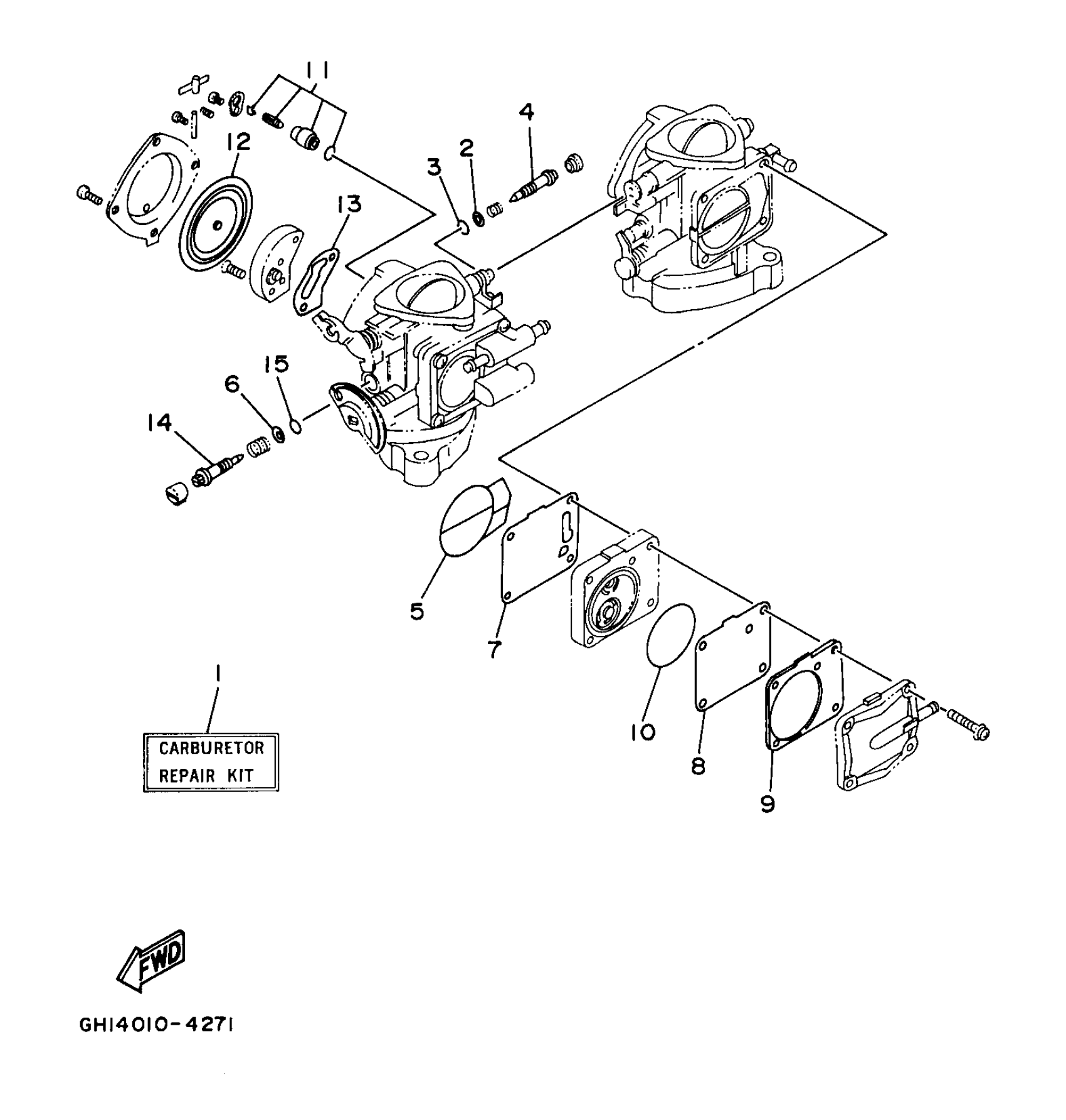

Yamaha SJ700AU (SUPER JET) 1996 REPAIR KIT 2 Diagram

#

Description
Price

1

CARBURETOR REPAIR KIT

64U-W0093-00-00

Unavailable

2

WASHER,NEEDLE

812-14235-00-00

$2.44

3

. O-RING

6K8-14562-00-00

$1.88

4

. PLATE, NEEDLE FITTING

63M-14946-00-00

$18.49

5

. O-RING

6K8-14564-00-00

$8.51

6

. WASHER

6K8-14537-00-00

$3.18

7

. DIAPHRAGM

6K8-24411-20-00

$29.63

8

. VALVE, CHECK

6K8-24421-10-00

$24.44

9

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

10

. O-RING

6K8-14563-00-00

Unavailable

11

NEEDLE

61X-14916-16-00

$22.90

12

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

13

. GASKET

6K8-14536-11-00

$8.14

14

. SCREW, PILOT

63M-14923-00-00

Unavailable

15

O-RING

583-14561-00-00

$4.44
