1996 Yamaha Super Jet (SJ700AU) Jet Unit 2 Diagram

← All diagrams

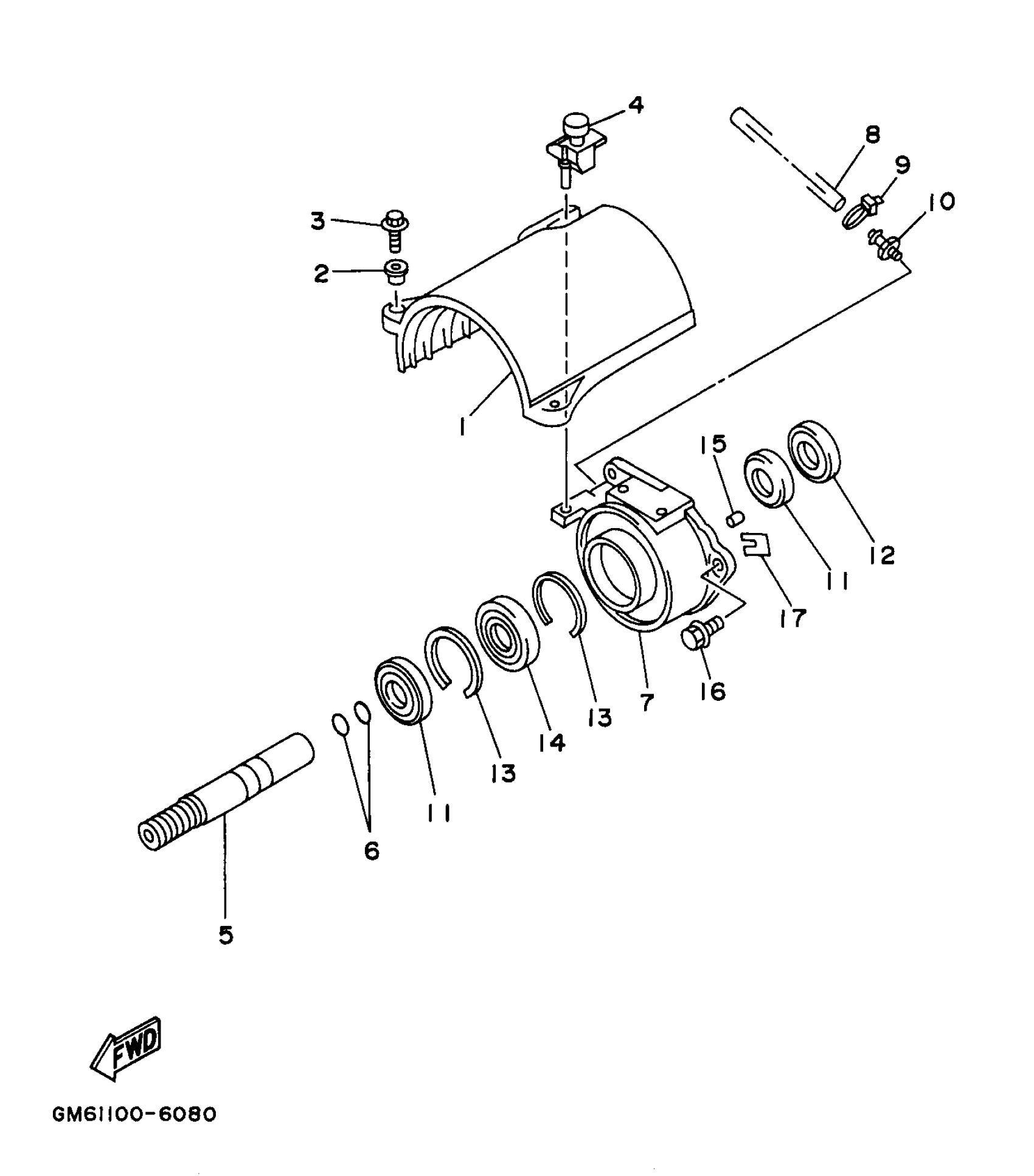

Find the part on the Jet Unit 2 diagram for your 1996 Yamaha Super Jet (SJ700AU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Super Jet (SJ700AU) Jet Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

61X-51381-00-00

1
Out of stock

2

COLLAR

90387-06M60-00

1
Out of stock

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

1
Out of stock

4

GROMMET(GD0)

90480-06M69-00

1
Out of stock

5

SHAFT, COUPLER

6R7-51323-02-00

1
Out of stock

6

O-RING(6R7)

93210-17MA4-00

1
Out of stock

7

HOUSING, BEARING

61X-G5332-00-00

1
Out of stock

8

HOSE (L445)

90445-09M21-00

1
Out of stock

9

CLAMP

90465-10098-00

1
Out of stock

10

NIPPLE, HOSE

61L-45378-00-00

1
Out of stock

11

OIL SEAL(62T)

93101-25M55-00

1
Out of stock

12

OIL SEAL

93101-24001-00

1
Out of stock

13

CIRCLIP

93430-47M04-00

1
Out of stock

14

BEARING(62G)

93306-205U6-00

1
Out of stock

15

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

16

BOLT, WITH WASHER

90119-08907-00

1
Out of stock

17

SHIM (T=0.5)

GD0-67249-A0-00

1
Out of stock

17

SHIM (T=1.0)

GD0-67249-00-10

1
Out of stock
