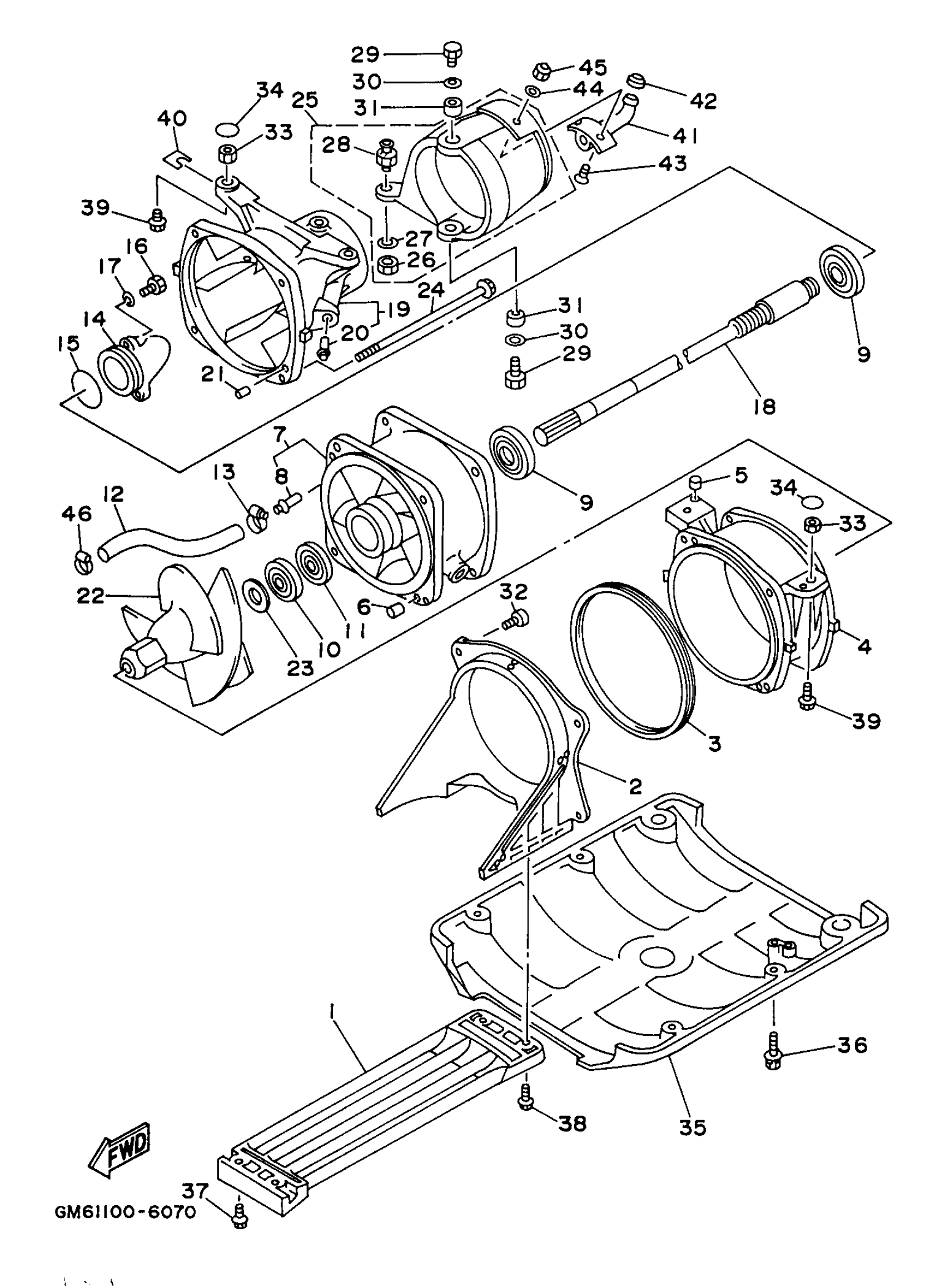

Yamaha SJ700AU (SUPER JET) 1996 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6R7-51333-00-00

$95.44

2

DUCT, INTAKE

6R7-51311-00-00

$122.71

3

. PACKING

6R7-51117-01-00

$39.38

4

HOUSING, IMPELLER

6R7-51312-03-00

$306.70

5

PIN, DOWEL(6R7)

93606-07M17-00

$6.76

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

62T-51315-01-00

Unavailable

8

. NIPPLE

6K8-51129-00-00

$9.62

9

BEARING (6K8)

93306-205U1-00

$19.73

10

OIL SEAL(6R7)

93102-25M34-00

$13.70

11

OIL SEAL(6R7)

93101-25M50-00

$20.80

12

HOSE

90445-14M11-00

Unavailable

13

HOSE CLAMP ASSY(62T)

90450-14M05-00

$14.92

14

CAP

62T-51326-00-00

$71.20

15

. O-RING

93210-46M16-00

$7.15

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

SHAFT, DRIVE

6R7-45511-01-00

$465.14

19

NOZZLE

6R7-51318-05-94

$228.77

20

. NIPPLE

6K8-51129-00-00

$9.62

21

PIN, DOWEL (614)

93606-12019-00

$3.05

22

IMPELLER

6R7-51321-00-8S

$328.77

23

SPACER

62T-51348-00-00

$52.82

24

BOLT, WITH WASHER

90119-06M70-00

$7.40

25

NOZZLE DEFLECOR

61L-51313-00-00

$53.14

26

NUT(650)

95380-06700-00

Unavailable

27

WASHER, PLATE

90201-06M02-00

$2.20

28

. BOLT, JOINT

6R7-42316-00-00

$34.49

29

BOLT, HEXAGON

97095-08018-00

$3.08

30

.. WASHER, PLATE

92990-08600-00

$2.17

31

COLLAR(6R7)

90387-08M06-00

Unavailable

32

SCREW, TAPPING

97780-60520-00

$4.09

33

NUT

90179-10925-00

$5.00

34

SEAL

EW2-62723-30-00

$7.27

35

PLATE 2

F2F-6273B-09-00

Unavailable

36

BOLT, WITH WASHER

90119-08943-00

$3.18

37

BOLT, WITH WASHER

90119-06896-00

$5.03

38

BOLT, WITH WASHER

90119-06908-00

$2.57

39

BOLT, WITH WASHER

90119-10948-00

$5.92

40

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

40

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

40

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

40

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

41

SPOUT

EU0-62693-02-00

$41.99

42

CAP, SPOUT

6R8-62695-00-00

$4.55

43

. SCREW, FLAT HEAD

98780-05016-00

$2.64

44

. WASHER, PLAIN

92990-05200-00

$4.29

45

NUT, FLANGE

95720-05300-00

$1.28

46

BAND, HOSE 11

90601-11062-00

Unavailable
