1996 Yamaha Super Jet (SJ700AU) Graphic Tool Diagram

← All diagrams

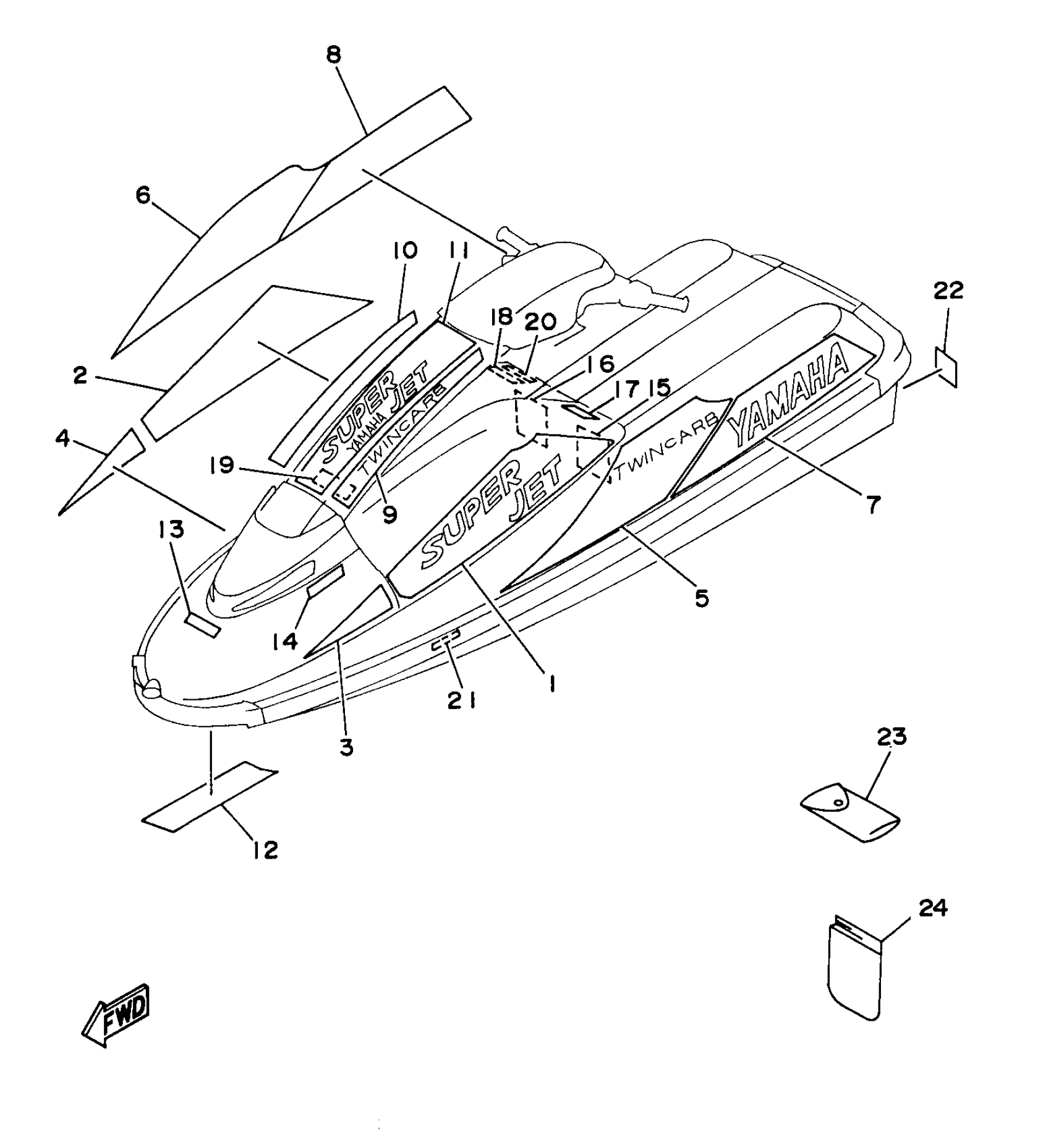

Find the part on the Graphic Tool diagram for your 1996 Yamaha Super Jet (SJ700AU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Super Jet (SJ700AU) Graphic Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1

GM6-6417B-10-00

1
Out of stock

2

GRAPHIC 1

GM6-6417B-20-00

1
Out of stock

3

GRAPHIC 2

GM6-6417C-10-00

1
Out of stock

4

GRAPHIC 2

GM6-6417C-20-00

1
Out of stock

5

GRAPHIC 3

GM6-6417D-10-00

1
Out of stock

6

GRAPHIC 3

GM6-6417D-20-00

1
Out of stock

7

GRAPHIC 4

GM6-6417E-10-00

1
Out of stock

8

GRAPHIC 4

GM6-6417E-20-00

1
Out of stock

9

GRAPHIC 5

GM6-6417F-10-00

1
Out of stock

10

GRAPHIC 5

GM6-6417F-20-00

1
Out of stock

11

GRAPHIC 6

GM6-6417G-00-00

1
Out of stock

12

MARK, YAMAHA A

GM6-64114-00-00

1
Out of stock

13

MARK, YAMAHA B

GM6-64115-00-00

1
Out of stock

14

LABEL, WARNING

EU0-U416B-00-00

1
Out of stock

15

LABEL, WARNING 1

GH7-6416C-10-00

1
Out of stock

16

LABEL, WARNING 2

GH7-6416D-10-00

1
Out of stock

17

LABEL, CAUTION 2

EW2-64183-30-00

1
Out of stock

18

LABEL,CAUTION 5

EW2-64183-60-00

1
Out of stock

19

LABEL, CAUTION (BATTERY)

EU0-U418B-00-00

1
Out of stock

20

PLATE, ASSY

GK5-6411B-00-00

1
Out of stock

21

LABEL,PATENT

EW2-64184-00-00

1
Out of stock

22

LABEL, RIGHTING

EU0-64188-00-00

1
Out of stock

23

TOOL SET

EU0-65986-13-00

1
Out of stock

24

BAG

GM6-65987-02-00

1
Out of stock
