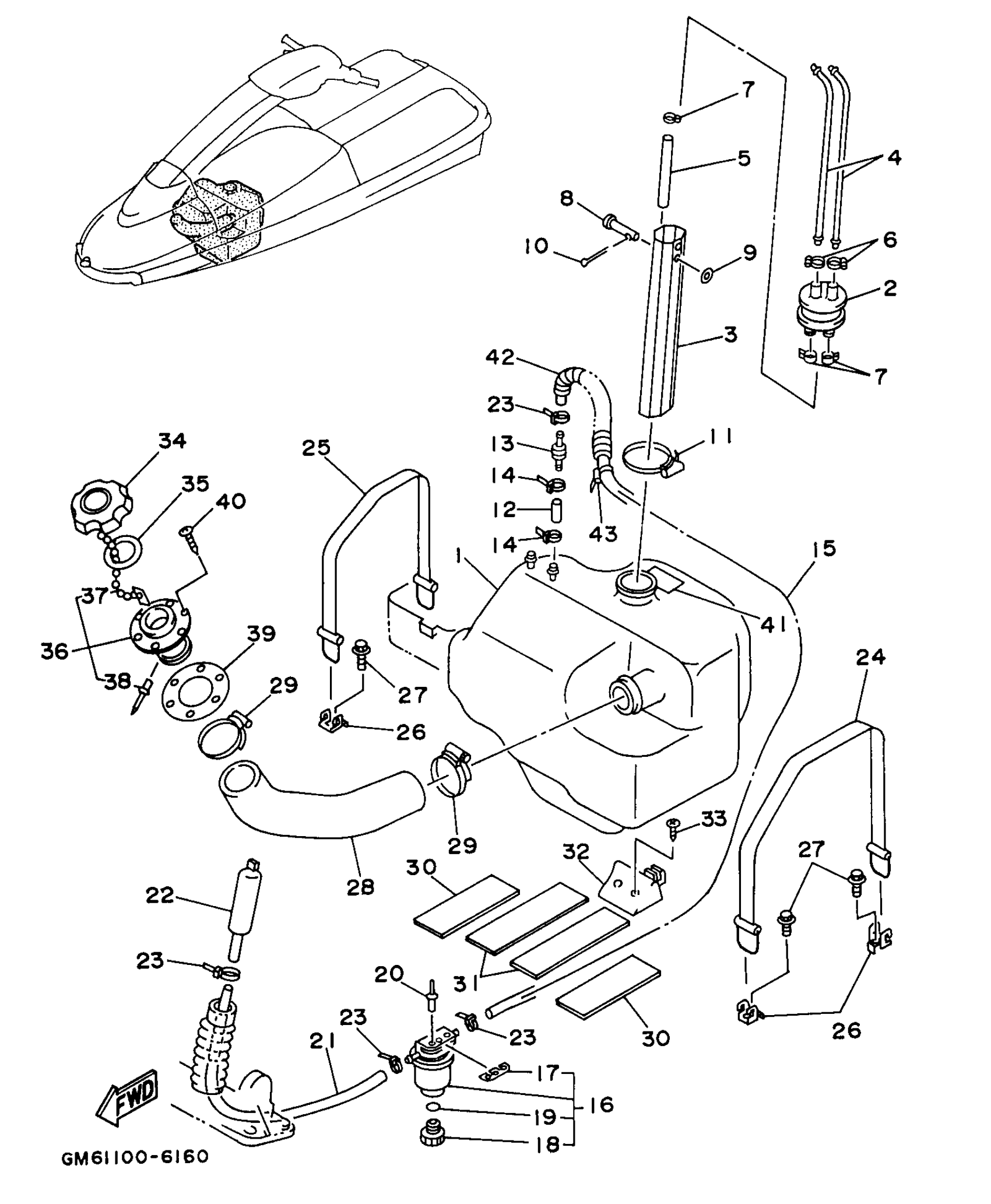

Yamaha SJ700AU (SUPER JET) 1996 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

EW2-67711-01-00

$234.26

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

PIPE, FILLER

EW2-67716-02-00

$24.25

4

PIPE, SUCTION 3

EW2-67714-02-00

$16.90

5

HOSE (L198)

90445-11293-00

$6.69

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIN (FJ0)

91790-05040-00

$2.46

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

PIN. COTTER

91490-16010-00

$2.26

11

BAND, HOSE 62

90601-162U5-00

$6.46

12

HOSE, AIR VENT 3

FT4-67856-30-00

Unavailable

13

CHECK VALVE

EU0-67767-31-00

$30.97

14

CLAMP

90465-10098-00

$2.24

15

HOSE, AIR VENT 3

GM6-67856-00-00

Unavailable

16

FILTER, VENT ASSY

F2F-6214A-00-00

$49.58

17

. PLATE, FILTER

EW2-62142-00-00

$44.10

18

. PLUG, DRAIN

70R-24543-00-00

$8.81

19

. O-RING

70R-24489-00-00

$4.85

20

RIVET, BLIND

90267-48802-00

$1.98

21

HOSE (L450)

90699-50045-00

Unavailable

22

AIR, VENT ASSY

EW2-62150-00-00

$20.57

23

CLAMP

90465-10098-00

$2.24

24

BAND, FUEL TANK

EW2-67821-30-00

$29.25

25

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

26

HOOK A

EW2-65772-00-00

$7.59

27

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

28

HOSE

GM6-67844-11-00

$113.22

29

BAND, HOSE 55

90601-155U4-00

$6.17

30

MAT

GM6-67593-00-00

$23.51

31

MAT

GM6-67594-00-00

Unavailable

32

DAMPER, FUEL TANK

EW2-67822-01-00

$60.28

33

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.86

34

CAP, FUEL FILLER

EU0-67831-32-00

Unavailable

35

PACKING 1

EU0-67832-00-00

$8.81

36

SOCKET

EU0-W6783-30-00

Unavailable

37

. CHAIN BALL

EU0-67835-00-00

$5.31

38

. RIVET, BLIND

90267-40935-00

$1.32

39

PACKING, FUEL FILLER

EU0-67834-00-00

$24.99

40

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable

41

LABEL,FUEL TANK

GM6-6418D-00-00

$16.90

42

HOSE(6TC)

90446-14M51-00

Unavailable

43

CLAMP

90465-10098-00

$2.24
