- SJ700AU (SUPER JET) 1996
ELECTRICAL 1

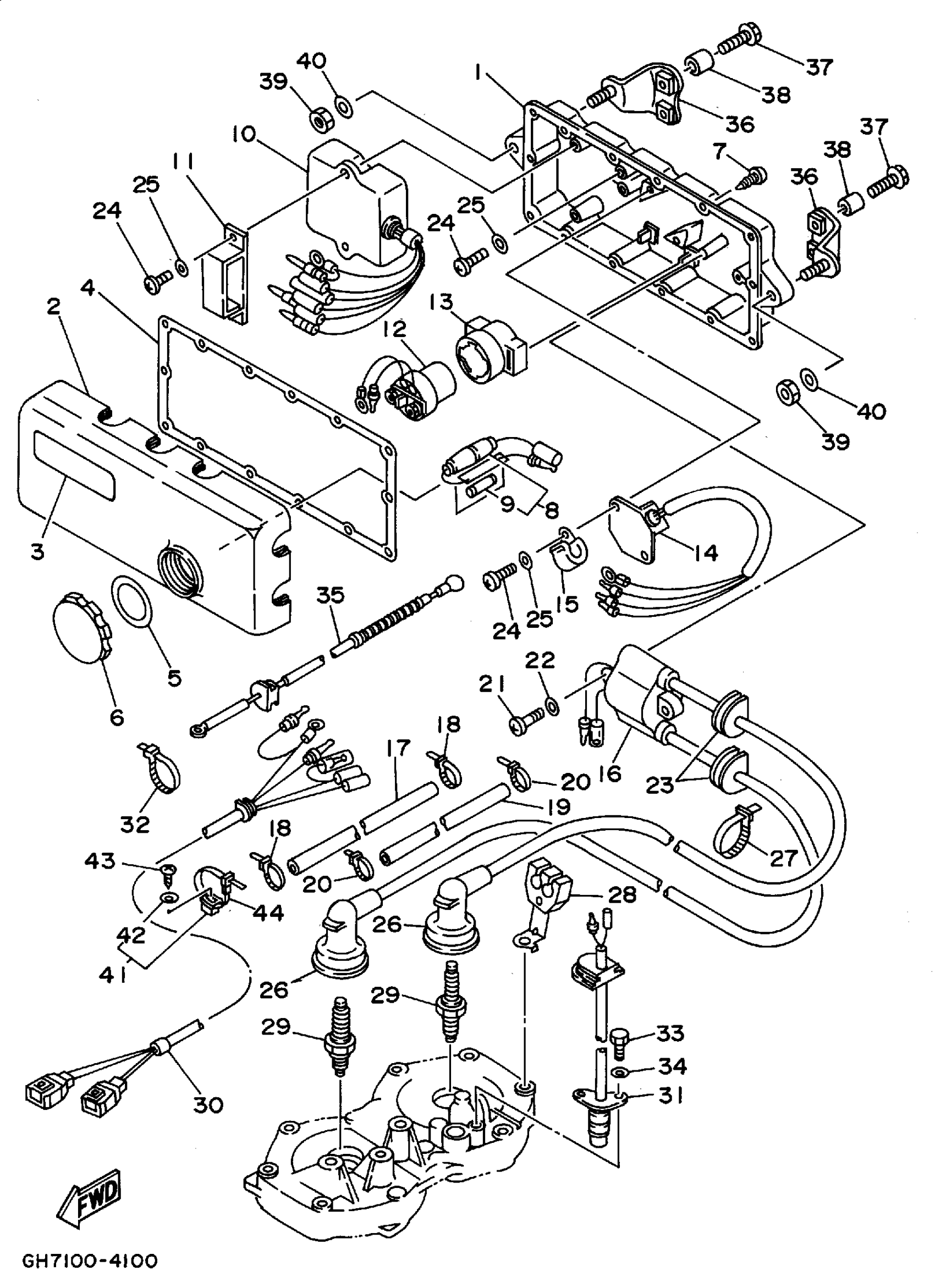

1996 Yamaha Super JET (SJ700AU) Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 1996 Yamaha Super JET (SJ700AU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
8
FUSE HOLDER ASSY
6K8-82150-02-00
1
Out of stock
10
C.D.I. UNIT ASSY
62T-85540-04-00
1
Out of stock
13
HOLDER, RELAY
6M6-81952-01-00
1
Out of stock
26
PLUG CAP ASSEMBLY
6K8-82370-00-00
1
Out of stock
28
CLAMP, CORD
6R7-82361-00-00
1
Out of stock
31
THERMO SWITCH ASSY
6R7-82560-00-00
1
Out of stock
38
COLLAR
90387-07908-00
1
Out of stock
42
. WASHER, PLAIN
90201-05925-00
1
Out of stock
