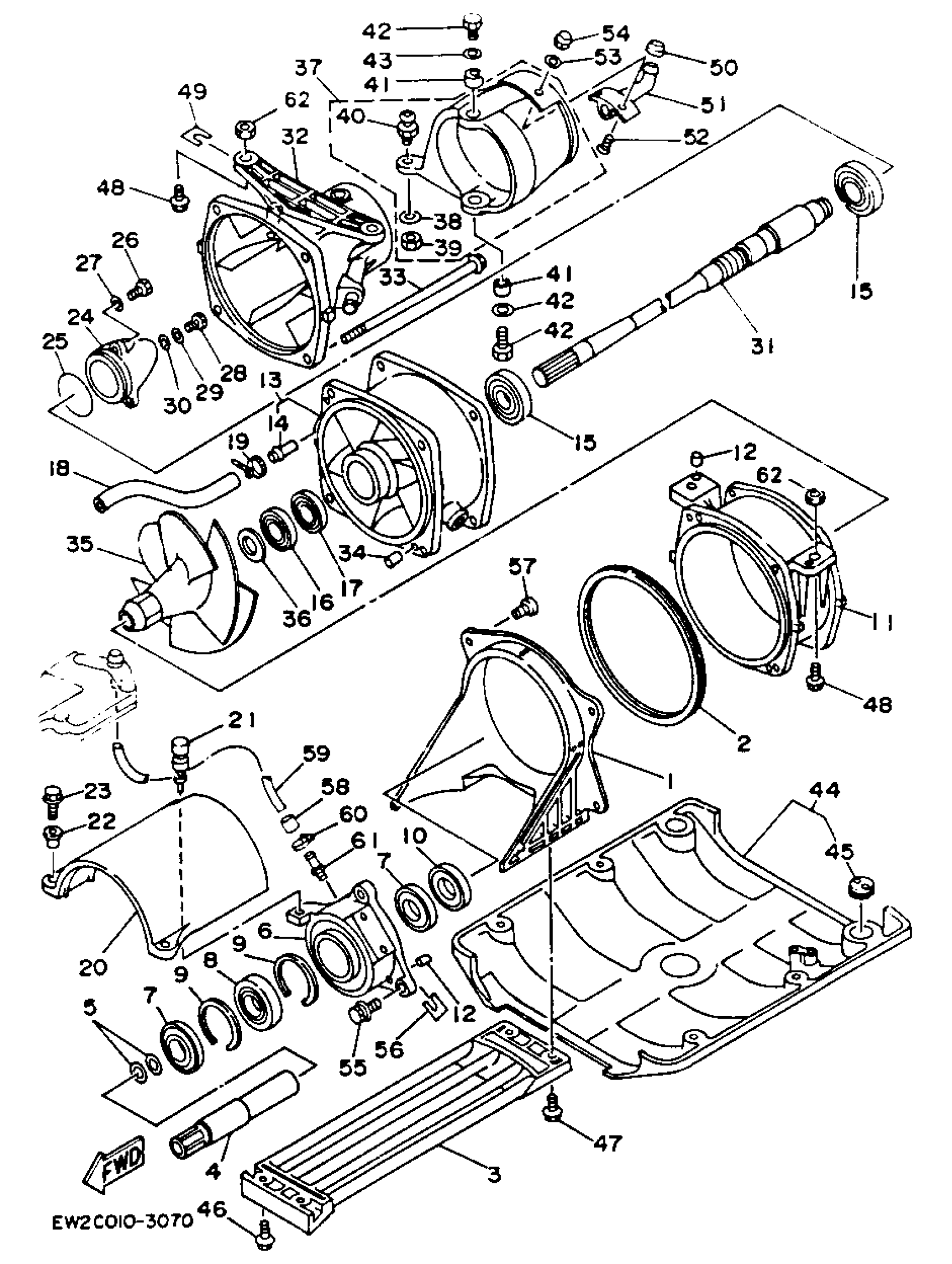

Yamaha SJ650R (SUPER JET) 1993 JET UNIT Diagram

#

Description
Price

1

DUCT, INTAKE

6R7-51311-00-00

$122.71

2

. PACKING

6R7-51117-01-00

$39.38

3

SCREEN, INTAKE

6R7-51333-00-00

$95.44

4

SHAFT, COUPLER

6R7-51323-01-00

Unavailable

5

O-RING(6R7)

93210-17MA4-00

$4.65

6

HOUSING SET, BEARING (6R7-01)

99999-02641-00

Unavailable

7

OIL SEAL(62T)

93101-25M55-00

$24.36

8

BEARING(62G)

93306-205U6-00

$55.29

9

CIRCLIP

93430-47M04-00

$5.18

10

OIL SEAL

93101-24001-00

$30.69

11

HOUSING, IMPELLER

6R7-51312-03-00

$306.70

12

PIN, DOWEL(6R7)

93606-07M17-00

$6.76

13

DUCT, IMPELLER

62T-51315-01-00

Unavailable

14

. NIPPLE

6K8-51129-00-00

$9.62

15

BEARING (6K8)

93306-205U1-00

$19.73

16

OIL SEAL(6R7)

93102-25M34-00

Unavailable

17

OIL SEAL(6R7)

93101-25M50-00

Unavailable

18

HOSE

90445-14M11-00

Unavailable

19

CLAMP

90465-10098-00

$1.68

20

COVER

61X-51381-00-00

$26.49

21

GROMMET(6R7)

90480-06M46-00

Unavailable

22

COLLAR

90387-06M60-00

$6.37

23

BOLT, WITH WASHER

90119-06900-00

$4.09

24

CAP

62T-51326-00-00

$71.20

25

. O-RING

93210-46M16-00

$7.15

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

BOLT(GH1)

97080-06012-00

$2.56

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

. GASKET

90430-06M03-00

$2.80

31

SHAFT, DRIVE

6R7-45511-01-00

$465.14

32

NOZZLE

6R7-51318-05-94

$228.77

33

BOLT, WITH WASHER

90119-06M70-00

$7.40

34

PIN, DOWEL (614)

93606-12019-00

Unavailable

35

IMPELLER

61L-51321-10-CA

Unavailable

36

SPACER

62T-51348-00-00

$52.82

37

NOZZLE DEFLECOR

61L-51313-00-00

$53.14

38

WASHER, PLATE

90201-06M02-00

$2.20

39

NUT(650)

95380-06700-00

Unavailable

40

. BOLT, JOINT

6R7-42316-00-00

$34.49

41

COLLAR(6R7)

90387-08M06-00

Unavailable

42

BOLT, HEXAGON

97095-08018-00

$3.08

43

.. WASHER, PLATE

92990-08600-00

$2.17

44

PLATE 2

F2F-6273B-09-00

Unavailable

45

BOLT, JACK

FK7-62732-01-00

Unavailable

46

BOLT, WITH WASHER

90119-06896-00

$5.03

47

BOLT, WITH WASHER

90119-06908-00

$2.57

48

BOLT, WITH WASHER

90119-10917-00

Unavailable

49

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

49

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

49

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

49

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

50

CAP, SPOUT

6R8-62695-00-00

$4.55

51

SPOUT

EU0-62693-02-00

$41.99

52

SCREW(617)

98780-05012-00

Unavailable

53

. WASHER, PLAIN

92990-05200-00

$4.29

54

.. NUT

95380-05800-00

$2.73

55

BOLT, WITH WASHER

90119-08907-00

$5.45

56

SHIM (T=0.3) (EU0-67354-30-03)

EU0-U7354-30-03

Unavailable

56

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

Unavailable

56

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

Unavailable

57

SCREW, TAPPING

97780-60520-00

$4.09

58

BUSH

90386-08006-00

$2.80

59

HOSE (L445)

90445-09M21-00

Unavailable

60

CLAMP, HOSE(61L)

90460-11M17-00

Unavailable

61

NIPPLE, HOSE

61L-45378-00-00

$11.35

62

NUT

90179-10925-00

$5.00
