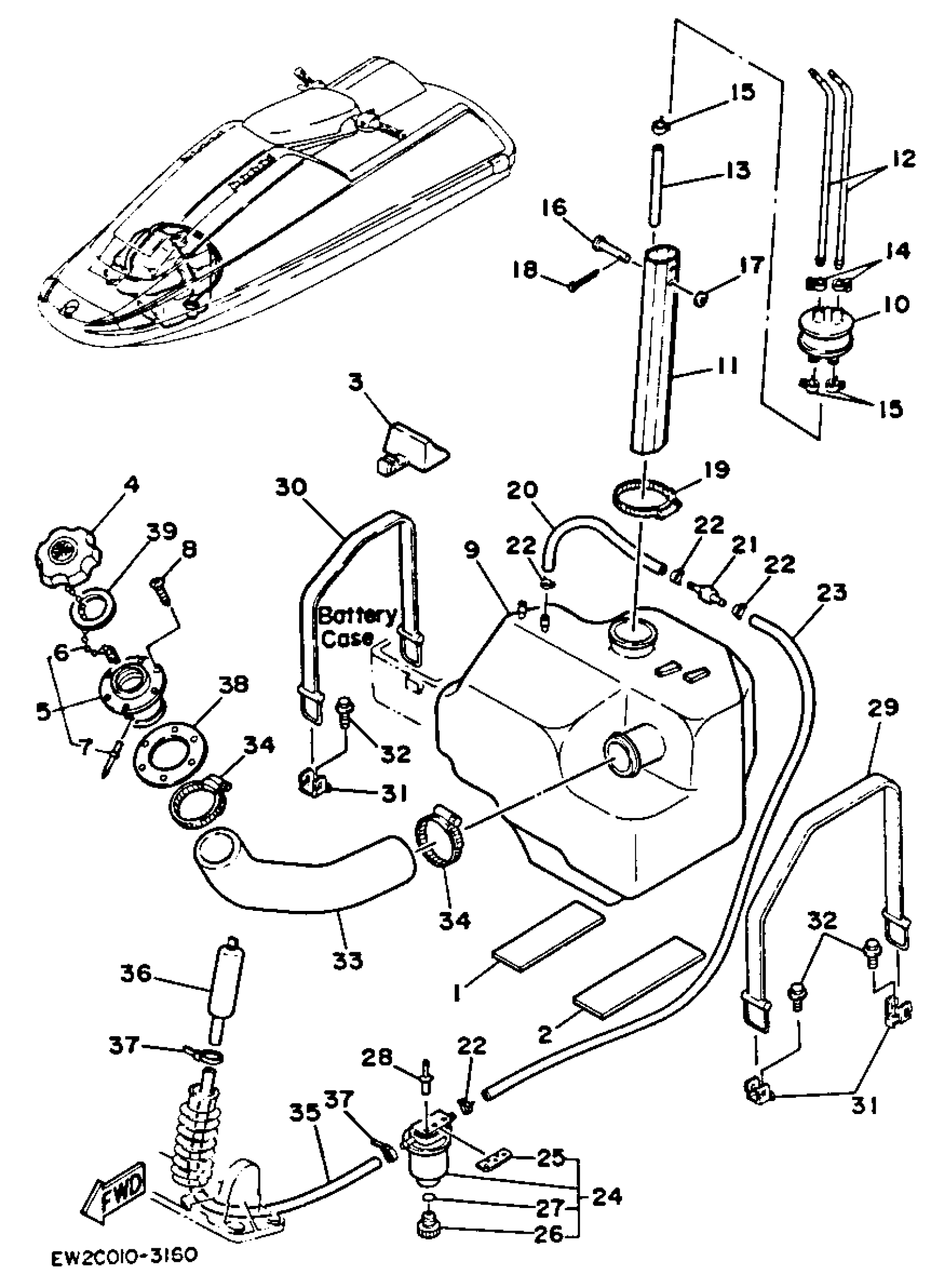

Yamaha SJ650R (SUPER JET) 1993 FUEL TANK Diagram

#

Description
Price

1

. MAT

EW2-67593-00-00

Unavailable

2

MAT 3

EW2-67593-40-00

Unavailable

3

DAMPER, FUEL TANK

EW2-67822-01-00

$62.11

4

CAP, FUEL FILLER

EU0-67831-32-00

Unavailable

5

SOCKET

EU0-W6783-30-00

Unavailable

6

. CHAIN BALL

EU0-67835-00-00

$5.18

7

. RIVET, BLIND

90267-40935-00

$1.28

8

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable

9

TANK, FUEL

EW2-67711-01-00

$271.20

10

PIPE, JOINT

FJ0-67713-01-00

Unavailable

11

PIPE, FILLER

EW2-67716-02-00

$24.98

12

PIPE, SUCTION 3

EW2-67714-02-00

$16.99

13

HOSE (L198)

90445-11293-00

$6.69

14

BAND, HOSE 11

90601-11062-00

Unavailable

15

CLIP (7K7)

90467-11044-00

$4.89

16

PIN (FJ0)

91790-05040-00

Unavailable

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

PIN. COTTER

91490-16010-00

$2.36

19

BAND, HOSE 62

90601-162U5-00

$6.17

20

HOSE, AIR VENT 1

EU0-67856-00-00

Unavailable

21

CHECK VALVE

EU0-67767-31-00

$20.93

22

CLAMP

90465-10098-00

$1.68

23

HOSE

90699-50135-00

Unavailable

24

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

25

. PLATE, FILTER

EW2-62142-00-00

$44.99

26

. PLUG, DRAIN

70R-24543-00-00

$9.08

27

. O-RING

70R-24489-00-00

$5.00

28

RIVET, BLIND

90267-48940-00

$10.99

29

BAND, FUEL TANK

EW2-67821-00-00

$38.49

30

BAND, FUEL TANK

EW2-67821-30-00

$28.73

31

HOOK A

EW2-65772-00-00

$7.40

32

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

33

HOSE, FUEL FILLER

EW2-U7844-00-00

Unavailable

34

BAND, HOSE 55

90601-155U4-00

$5.87

35

HOSE (L450)

90699-50045-00

Unavailable

36

AIR, VENT ASSY

EW2-62150-00-00

$20.99

37

CLAMP

90465-10098-00

$1.68

38

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

39

PACKING 1

EU0-67832-00-00

$7.40
