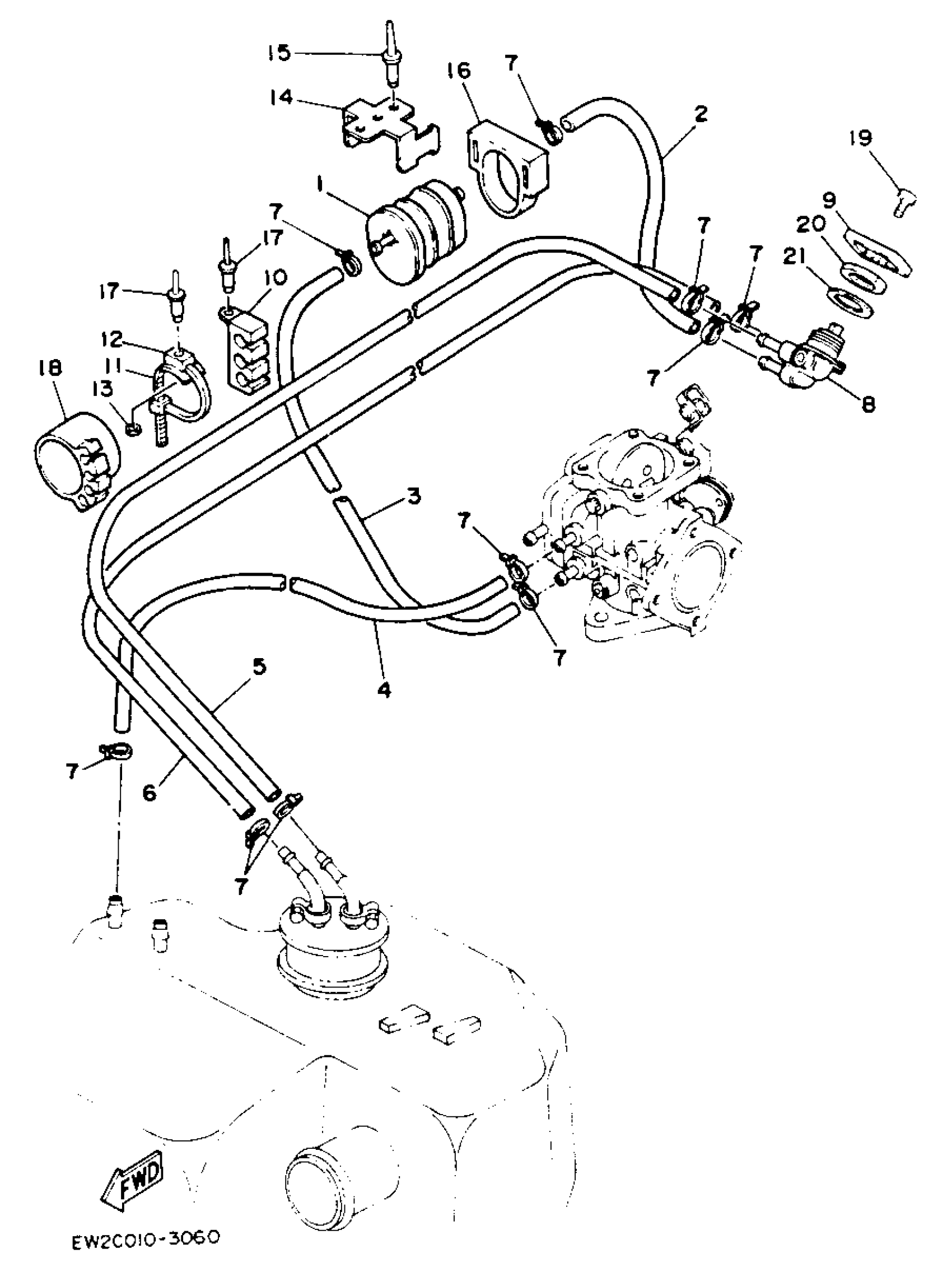

Yamaha SJ650R (SUPER JET) 1993 FUEL FILTER Diagram

#

Description
Price

1

FILTER ASSY

6K8-24560-21-00

Unavailable

2

HOSE (L1040)

90445-10MA9-00

$68.99

3

HOSE (L1040)

90445-10MA9-00

$68.99

4

HOSE (L1040)

90445-10MA9-00

$68.99

5

HOSE (L1700)

90445-10M87-00

Unavailable

6

HOSE (L1700)

90445-10M87-00

Unavailable

7

CLAMP

90465-10098-00

Unavailable

8

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

9

LEVER, COCK

6R7-24524-00-00

Unavailable

10

HOLDER,PIPE 2

EW2-67812-00-00

Unavailable

11

CLIP (EW2)

90601-20010-00

Unavailable

12

CLAMP COMP (EU0)

90600-91736-00

$8.49

13

. WASHER, PLAIN

90201-05925-00

Unavailable

14

BRACKET, FUEL FILTER

FN8-67816-00-00

Unavailable

15

RIVET, BLIND

90267-48940-00

Unavailable

16

HOLDER

EU0-67817-00-00

Unavailable

17

RIVET, BLIND

90267-489UE-00

Unavailable

18

HOLDER, PIPE 1

EW2-67811-00-00

Unavailable

19

SCREW, BIND

98980-04008-00

Unavailable

20

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

21

WASHER, PLATE

90202-229U1-00

Unavailable
