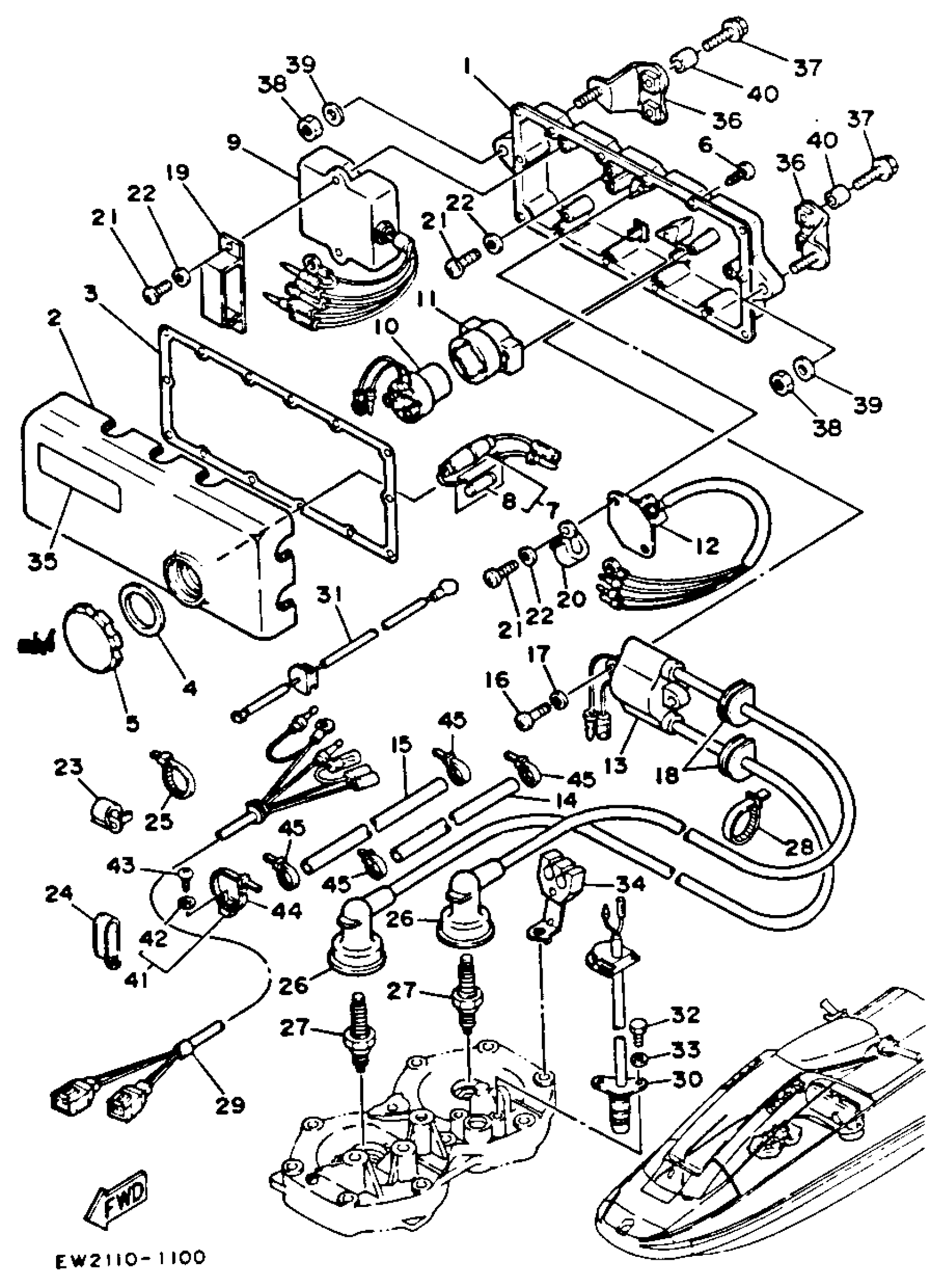

Yamaha SJ650R (SUPER JET) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

6M6-8552A-01-8P

Unavailable

2

COVER, CASE

6M6-8552E-01-00

Unavailable

3

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

4

GASKET

6M6-81844-00-00

Unavailable

5

CAP

6M6-8132W-00-00

Unavailable

6

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

7

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

8

FUSE (10A)

1E6-82151-00-00

$7.99

9

C.D.I. UNIT ASSY

6M6-85540-02-00

Unavailable

10

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

11

HOLDER, RELAY

6M6-81952-01-00

Unavailable

12

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

13

IGNITION COIL ASSEMBLY

61L-85570-00-00

Unavailable

14

TUBE, CORD

63M-82351-00-00

Unavailable

15

TUBE, CORD

63M-82351-00-00

Unavailable

16

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

GROMMET

90480-06M43-00

Unavailable

19

CLAMP

90464-06M29-00

Unavailable

20

CLAMP

90465-08028-00

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

CLAMP

90465-08M38-00

Unavailable

24

CLAMP (6A4)

90461-06M01-00

Unavailable

25

CLAMP

90465-10098-00

Unavailable

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

27

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

28

CLAMP

90465-10098-00

Unavailable

29

EXTENSION, WIRE LEAD

6R7-82553-01-00

Unavailable

30

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

31

WIRE, LEAD

62E-82117-20-00

Unavailable

32

BOLT

97085-06010-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

CLAMP, CORD

6R7-82361-00-00

Unavailable

35

MARK 3

6R7-83623-40-00

Unavailable

36

BRACKET, ELECTRIC BOX

EW2-68156-00-00

Unavailable

37

BOLT, WASHER BASED

90105-06901-00

Unavailable

38

. NUT

95380-08700-00

Unavailable

39

WASHER, PLAIN

92990-08200-00

Unavailable

40

COLLAR

90387-07908-00

Unavailable

41

CLAMP(EW2)

90600-91737-00

Unavailable

42

. WASHER, PLAIN

90201-05925-00

Unavailable

43

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

44

BAND (EU0)

90601-20009-00

Unavailable

45

CLAMP

90465-10098-00

Unavailable
